8-1
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of the electrical
parts list.
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
SLV-ED10/ED40/ED60/ED70/EZ10/EZ40/EZ60/EZ70
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
9 3-710-901-11 SCREW, TAPPING (ED10: ME, PS, SG/EZ10)
10 1-790-537-11 CABLE, FLAT (FFC) (FDS-5)
11 1-418-160-11 COMMANDER, STANDARD (RMT-V248C)
(ED10)
12 3-709-322-01 COVER, BATTERY (for RMT-V248C) (ED10)
13 1-475-614-21 COMMANDER, STANDARD (RMT-V245A)
(EZ10)
14 3-709-128-01 COVER, BATTERY (for RMT-V245A) (EZ10)
15 3-054-386-01 KNOB, ETR
16 3-054-384-01 ESCUTCHEON, ETR
* 17 A-6796-661-A KK-18 BOARD, COMPLETE
18 3-054-385-01 HOLDER, ETR
1 X-3949-480-1 PANEL ASSY, FRONT (ED10:ME,PS,SG)
1 X-3949-482-1 PANEL ASSY, FRONT (EZ10)
1 X-3949-550-1 PANEL ASSY, FRONT (ED10: MPS)
2 3-953-432-01 SPRING (GE), FL
4 3-943-995-01 EMBLEM (NO.5), SONY
(ED10: ME, PS, SG/EZ10)
4 3-943-995-31 EMBLEM (NO.5), SONY (ED10: MPS)
5 3-053-240-21 PLATE, DOOR ORNAMENTAL
* 6 A-6796-662-A DS-85 BOARD, COMPLETE
7 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
8 3-053-078-41 CASE, UPPER (ED10: ME, PS, SG/EZ10)
8 3-053-078-31 CASE, UPPER (ED10: MPS)
9 3-710-901-01 SCREW, TAPPING (ED10: MPS)

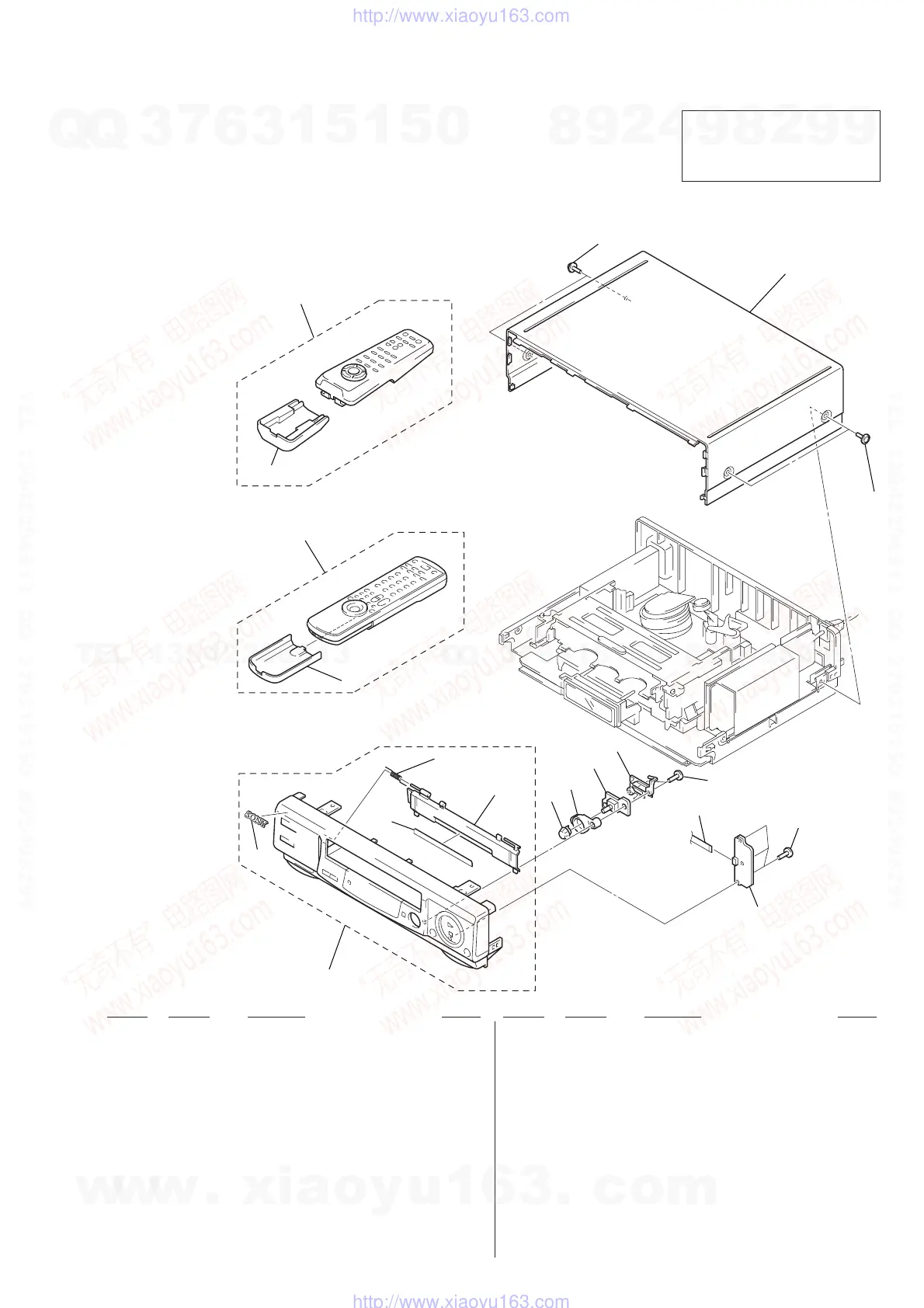

8-1-1. FRONT PANEL AND CABINET ASSEMBLIES
(ED10/EZ10)
9
8
9
11
12
13
14
10
7
6
1
4
2
ED10
EZ10
5
7
15
16
17
18
not
supplied
