Sony SLV-ED8ME - Front Panel and Cabinet Assemblies (EZ9)

8-2

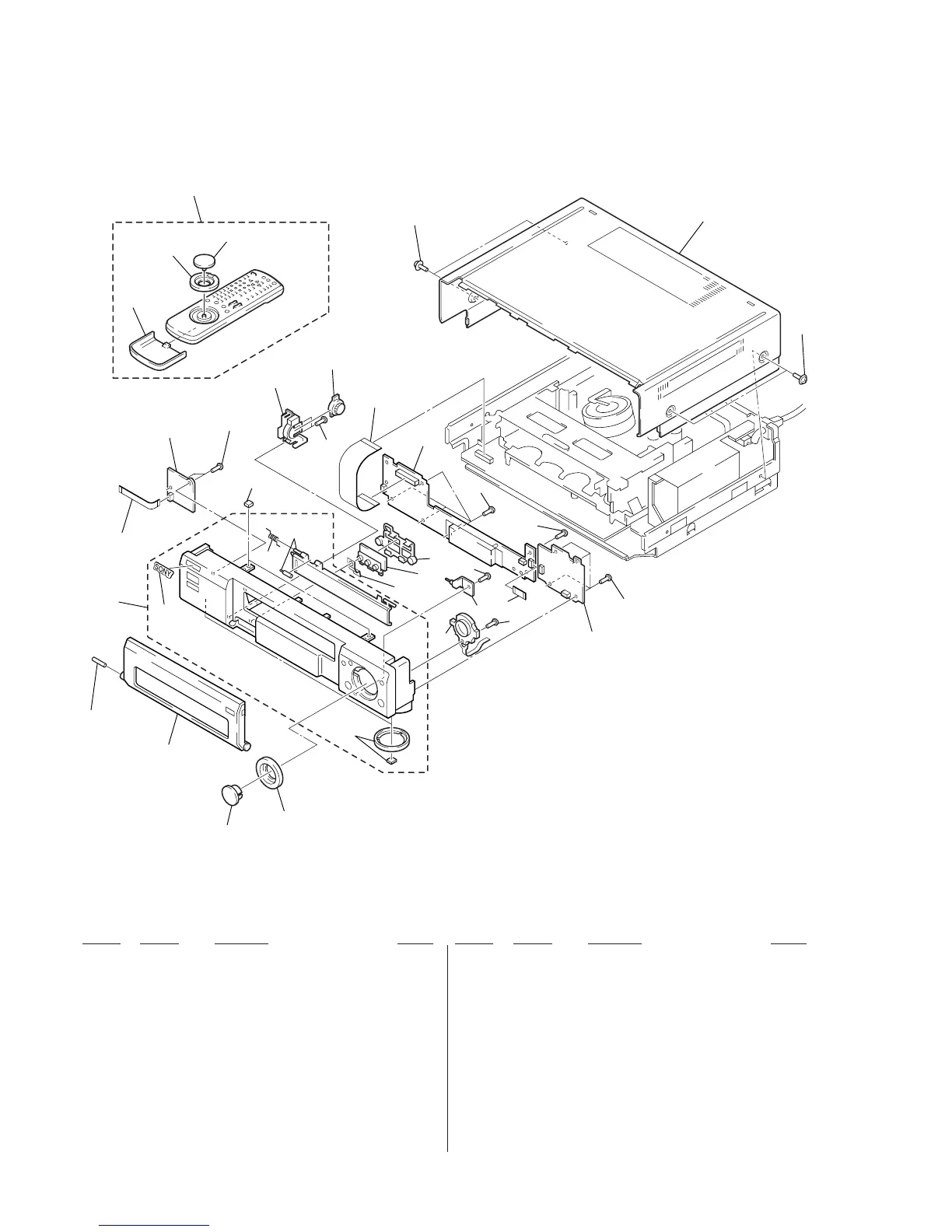

8-1-2. FRONT PANEL AND CABINET ASSEMBLIES (EZ9)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 3-979-309-01 BUTTON (AV), CENTER
52 3-989-330-01 RING, JOG
53 1-475-835-11 SWITCH BLOCK, CONTROL
54 X-3948-844-1 PANEL ASSY, FRONT
55 3-943-995-01 EMBLEM (NO.5), SONY
56 3-953-432-01 SPRING (GE), FL
57 1-762-844-21 SWITCH, ROTARY
58 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
59 X-3948-901-1 PLATE (RIGHT) ASSY, FULCRUM
* 60 A-6791-628-A IO-64 BOARD, COMPLETE
61 3-050-306-01 HOLDER, JACK
62 3-973-975-31 DAMPER, OIL
63 1-783-851-11 CABLE, FLAT (FFS-6)
* 64 A-6791-655-A SW-307 BOARD, COMPLETE
* 65 A-6791-653-A DM-77 BOARD, COMPLETE
66 1-783-850-11 CABLE, FLAT (FFD-3)
* 67 A-6791-654-A FR-137 BOARD, COMPLETE
68 1-783-849-11 CABLE, FLAT (FMF-30)
69 3-710-901-11 SCREW, TAPPING
* 70 3-977-136-41 CASE, UPPER
71 1-475-612-11 COMMANDER, STANDARD (RMT-V243)
72 3-972-850-01 BUTTON, FUNCTION
73 3-973-077-31 RING, CHANGE SPEED
74 3-709-126-01 COVER, BATTERY
71
72
73
74
51
52
53
55
63
64
58
62
58
56
54
not
supplied
not
supplied
not
supplied
68
67
58
58
58
58
58
60
61
59
57
70
69
69
65
66
not
supplied
not
supplied
not
supplied
