Sony SLV-ED8ME - Chassis Assembly

8-3
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101 3-979-314-01 BASE (R), MD
102 X-3947-568-1 TC (N17S) ASSY
103 3-979-112-01 SCREW SW (+) BVTP 3X10
* 104 A-6791-591-A NK-11 BOARD, COMPLETE (ED8/EZ8NZ)
105 3-970-608-21 SUMITITE (B3), +BV
* 106 A-6791-624-A MA-325 BOARD, COMPLETE (ED8)
* 106 A-6791-641-A MA-325 BOARD, COMPLETE (EZ8AS)
* 106 A-6791-644-A MA-325 BOARD, COMPLETE (EZ8NZ)
* 106 A-6791-652-A MA-325 BOARD, COMPLETE (EZ9)
107 1-468-311-11 POWER BLOCK (SR-718)
* 108 A-6791-623-A PS-414 BOARD, COMPLETE
! 109 1-777-854-21 CORD, POWER (ED8)
! 109 1-777-855-22 CORD, POWER (EZ8/EZ9)
110 3-987-913-42 PLATE, REAR JACK B (ED8/EZ9)
110 3-987-913-52 PLATE, REAR JACK B (EZ8AS)
110 3-987-913-62 PLATE, REAR JACK B (EZ8NZ)
* 111 3-977-139-81 PANEL, REAR
* 112 A-6791-625-A RJ-79 BOARD, COMPLETE (ED8/EZ9)
* 112 A-6791-642-A RJ-79 BOARD, COMPLETE (EZ8AS)
* 112 A-6791-645-A RJ-79 BOARD, COMPLETE (EZ8NZ)
113 1-779-725-11 CONNECTOR, BOARD TO BOARD 5P
114 3-682-057-11 SPACER (SMALL)

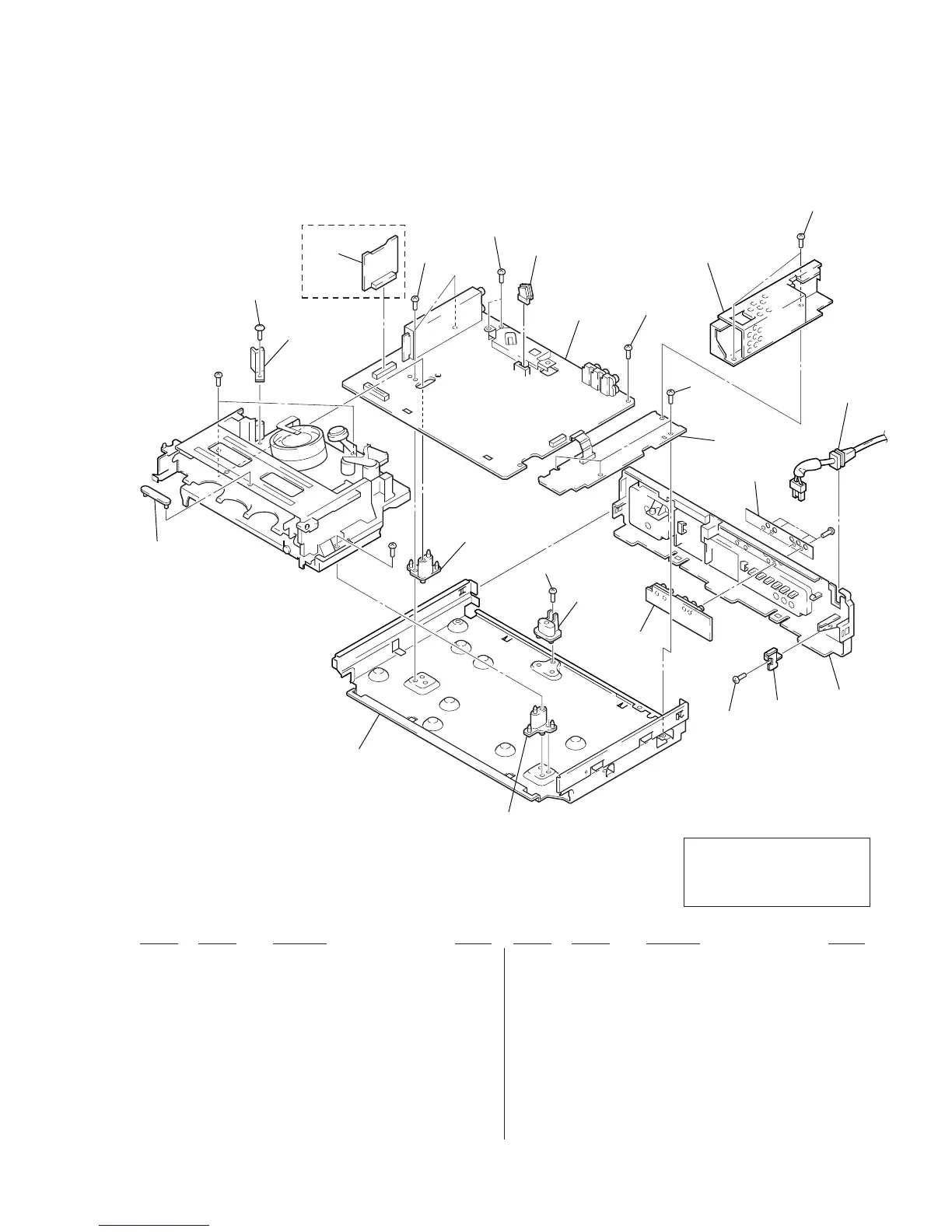

8-1-3. CHASSIS ASSEMBLY
101
101
not
supplied
105
112
105
111
110
109
105
#1
not
supplied
not
supplied
not
supplied
105
105
107
106
105
105
104
ED8/EZ8NZ
#1
103
102
113
108
#1
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
