1-17E
72
Additional Information

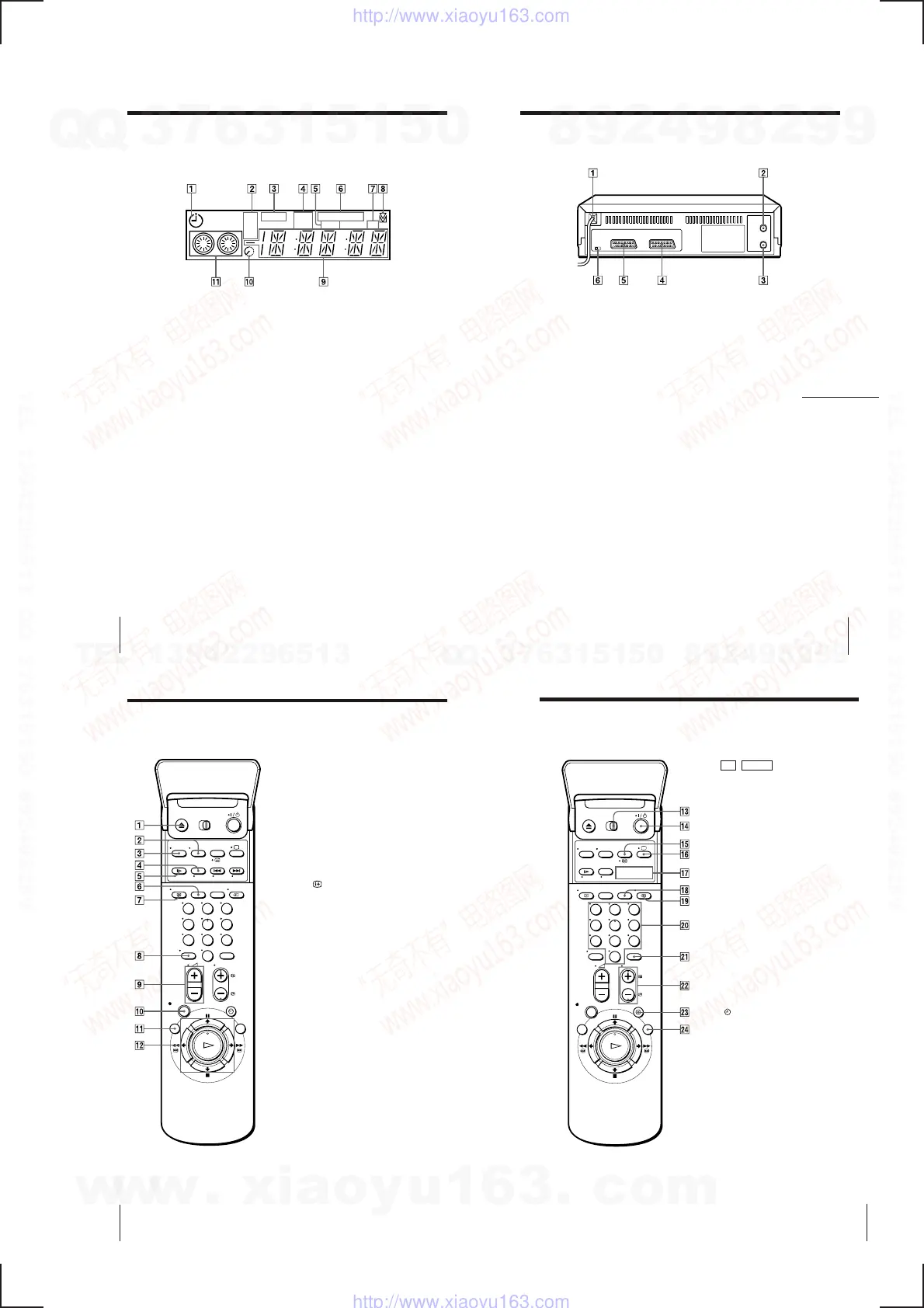

Index to parts and controls (continued)
Display window
Timer indicator (44, 48)
Tape speed indicators (38)
VIDEO indicator (11, 39)
VPS (Video Programme System)/
PDC (Programme Deliver y Control)
indicator (45)
OPC (Optimum Picture Control)
indicator (60)
SMARTLINK indicator (11)
TV indicator (41)
Tracking indicator (60)
Time counter/clock/line/
programme position indicator (35,
38, 65)
Remaining time indicator (39)
Tape/recor ding indicator (38)
LP
EP
SMARTLINKVIDEO VPS
SP
PDC OPC
TV
2
3
4
5
6
7
8
9
1
!º
!¡
73
Additional Information
Rear panel
Mains lead (9, 10)
AERIAL IN
ANTENNE ENTREE connector (9,
10)
AERIAL OUT
ANTENNE SORTIE connector (9,
10)
… LINE-3 IN
… ENTREE LIGNE-3 connector
(64)
: LINE-1 (TV)
: LIGNE-1 (TV) connector (10)
NTSC PB (Play Back) switch (35)
continued
6
5
4
1
2
3
74
Additional Information
Index to parts and controls (continued)
Remote commander
1 6 EJECT button (35)
2 WIDE button ( for TV) (7)
3 AUDIO MONITOR button ( for TV)
(7)
4 × 2 button* (50)
5 & SLOW button* (50)
6 SP (Standar d Play)/LP (Long Play)
button (38)
7
DISPLAY button (39)
8 ? (ten’s digit) button (6, 40)
9 . (volume) +/– buttons (for TV) (6)
r REC (recor d) button (38, 53)
MENU button (16, 54, 62)
P PAUSE/> button (16, 35)
p STOP/. button (16, 35)
03 REW (rewind)/? button
(35, 50)
)# FF (fast-for ward)// button
(35, 50)
PLAY/OK button (16, 35)
* FASTEXT buttons ( for TV)
123
456
789
0
·
!º
!¡
!™
75
Additional Information
TV / VIDEO remote control switch
(5)
1/u (on/standby) switch (6, 44)
COUNTER/REMAIN button (39)
V (Teletext) button (for TV) (7)
; TV power on/TV mode select
button (for TV) (7)
=/+ INDEX SEARCH
buttons* (59)
CLEAR button (35, 43, 55)
TV/VIDEO button (6, 11, 39)
Programme number buttons (6, 40)
INPUT SELECT button (38, 48, 65)
PROG (programme) +/– buttons (6,
18, 38)
/ Teletext page access buttons
(for TV) (7)
TIMER button (42, 47)
SMART SEARCH button (56)
* FASTEXT buttons ( for TV)
123
456
789
0
!£
!¢
!∞
!§
!¶
!•
!ª
