SECTION 7
REPAIR PARTS LIST
7-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
X10 : SX10
X25 : SX25
X40 : SX40
7-1

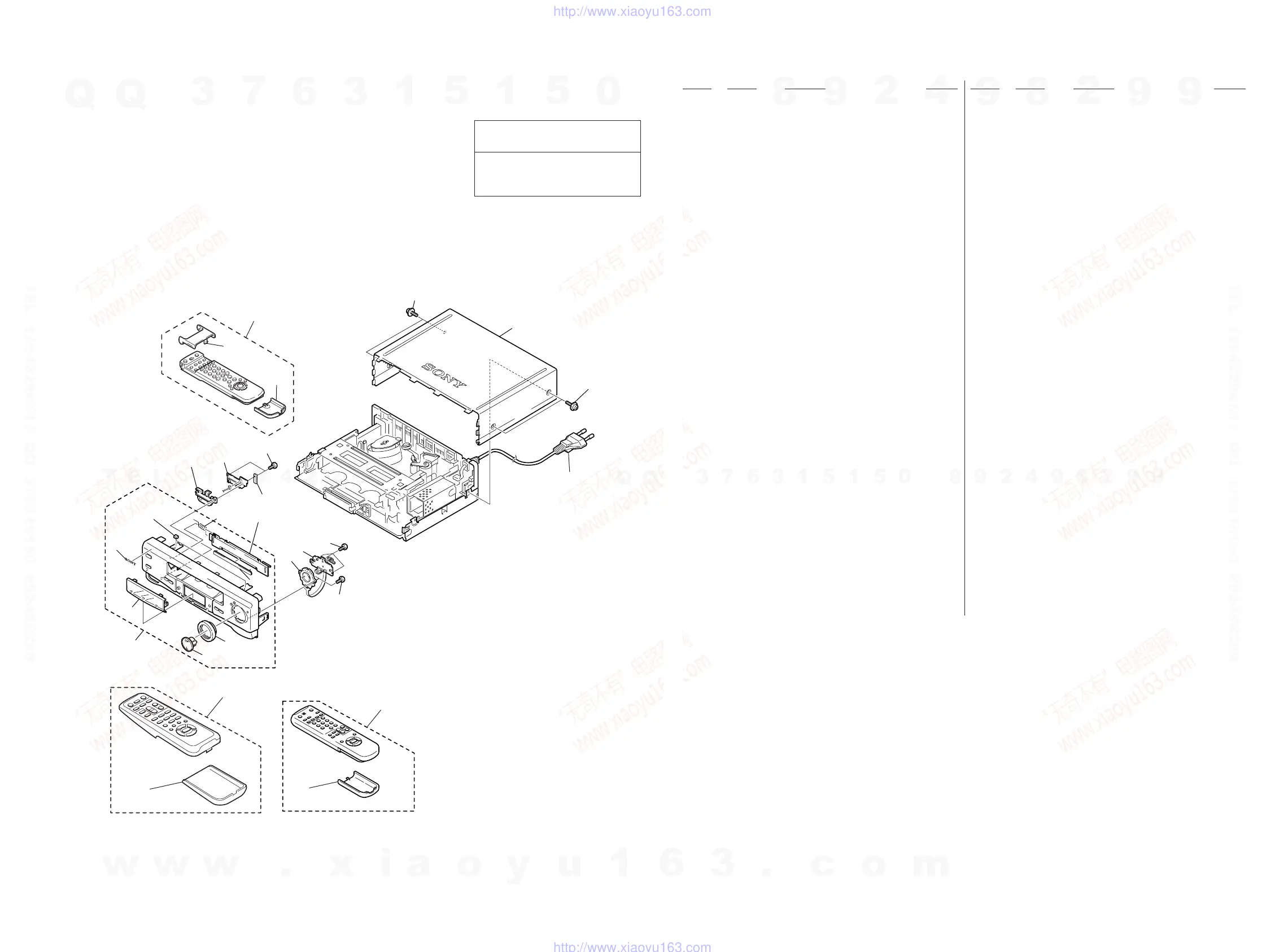

7-1-1. FRONT PANEL AND UPPER CASE SECTION
12
12
14
13
15
3
21
11
23
7
1
4
5
8
2
22
15
15
6
19
17
26
18
9
10
27
28
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3949-237-1 PANEL ASSY, FRONT (45:UX)
1 X-3949-238-1 PANEL ASSY, FRONT (45:VC)
1 X-3949-239-1 PANEL ASSY, FRONT (45:CP)
1 X-3949-240-1 PANEL ASSY, FRONT (40:VC1,VC2)
1 X-3949-241-1 PANEL ASSY, FRONT (40:B)
1 X-3949-242-1 PANEL ASSY, FRONT (40:CP)
1 X-3949-243-1 PANEL ASSY, FRONT (30:UX)
1 X-3949-244-1 PANEL ASSY, FRONT (30:VC1,VC2 )
1 X-3949-245-1 PANEL ASSY, FRONT (30:CP)
1 X-3949-246-1 PANEL ASSY, FRONT (X25)
1 X-3949-247-1 PANEL ASSY, FRONT (25:VC)
1 X-3949-248-1 PANEL ASSY, FRONT (25:B)
1 X-3949-249-1 PANEL ASSY, FRONT (25:CP)
1 X-3949-250-1 PANEL ASSY, FRONT (20:EX,UX)
1 X-3949-251-1 PANEL ASSY, FRONT (20:VP1,VP2)
1 X-3949-252-1 PANEL ASSY, FRONT (10:AE1,AE2)
1 X-3949-253-1 PANEL ASSY, FRONT (40:EG)
1 X-3949-254-1 PANEL ASSY, FRONT (X40)
1 X-3949-255-1 PANEL ASSY, FRONT (40:EE)
1 X-3949-256-1 PANEL ASSY, FRONT (30:EE)
1 X-3949-257-1 PANEL ASSY, FRONT (10:EE,EG)
1 X-3949-258-1 PANEL ASSY, FRONT (X10)
2 3-053-425-01 RING(S), BUTTON(EXCEPT 25:B/30:EE/40:B/45)
2 3-053-425-11 RING(S), BUTTON (25:B/40:B)
2 3-053-232-01 RING,JOG (30:EE/45)
3 3-053-421-01 PLATE,JACK GROUND (30,45)
4 3-053-417-01 PLATE, FROSTED (EXCEPT 40:B)
4 3-053-417-11 PLATE, FROSTED (40:B)
5 3-053-436-01 EMBLEM (NO.5), SONY
* 6 A-6794-659-A DS-83C BOARD, COMPLETE (45)
* 6 A-6794-661-A DS-83A BOARD, COMPLETE(EXCEPT 30:EE,45)
* 6 A-6794-663-A DS-83B BOARD, COMPLETE (30:EE)
7 3-953-432-01 SPRING (GE), FL
8 3-989-626-11 CUSHION (PS), RUBBER
9 1-418-007-11 COMMANDER, STANDARD (RMT-V256)
(10,X10,30:EE)
9 1-418-007-21 COMMANDER, STANDARD(RMT-V256A)(40:EE)
10 3-709-322-01 COVER, BATTERY (10,X10,30:EE,40:EE)
* 11 A-6794-658-A FI-15B BOARD, COMPLETE (30/45:EXCEPT EE)
* 11 A-6794-662-A FI-15A BOARD, COMPLETE (30:EE)
12 3-710-901-11 SCREW (TP3 × 8), CASE
13 3-979-384-21 CASE(E), UPPER (EXCEPT EX,UX,X10,X25,X40)
13 3-979-384-61 CASE(E), UPPER (EX,UX,X10,X25,X40)
!14 1-777-854-21 CORD, POWER
15 4-921-277-41 SCREW (B2.6 × 8), TAPPING, BIND
17 1-418-010-11 COMMANDER, STANDARD (RMT-V259)
(30:CP,UX,VC2,VC1/45)
18 3-709-431-01 COVER, REMOTE CONTROL BATTERY
(30:CP,UX,VC2,VC1/45)
19 1-762-844-21 SWITCH, ROTARY (30:EE/45)
21 3-053-419-01 ESCUTCHEON, CASSETTE
(40:CP,EE,EG,VC2,VC1/X40/45)
21 3-053-419-11 ESCUTCHEON, CASSETTE (40:B)
21 3-053-419-21 ESCUTCHEON, CASSETTE
(10:AE1,AE2/20/25:CP,VC,X25/30:UX,CP,VC1,VC2)
21 3-053-419-31 ESCUTCHEON, CASSETTE (25:B)
21 3-053-419-41 ESCUTCHEON, CASSETTE(10:EE,EG,X10/30:EE)
22 3-053-426-01 BUTTON (S), CENTER
(EXCEPT 25:B10/30:E/40:B/45)
22 3-053-426-11 BUTTON (S), CENTER (25:B/40:B)
22 3-053-231-01 BUTTON, CENTER (30:EE/45)
23 3-053-418-01 COVER (2P), JACK (30,45)
26 3-709-430-01 COVER, REMOTE CONTROL
(30:UX,CP,VC1,VC2/45)
27 1-418-008-11 COMMANDER, STANDARD (RMT-V257)
(20:VP1,VP2)
27 1-418-008-21 COMMANDER, STANDARD (RMT-V257A) (25:B)
27 1-418-008-31 COMMANDER, STANDARD (RMT-V257B)
(20:EX,UX/25:CP,VC,X25,40:CP,EG,VC1,VC2/X40)
27 1-418-008-41 COMMANDER, STANDARD (RMT-V257C) (40:B)
28 3-709-433-01 COVER, REMOTE CONTROL BATTERY
(20/25/X25/40:B,CP,VC1,VC2,EG/X40)
7-2
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
