Sony SNC-WR632C User Manual

1-14 (E)
SNC-WR632C/WR602C

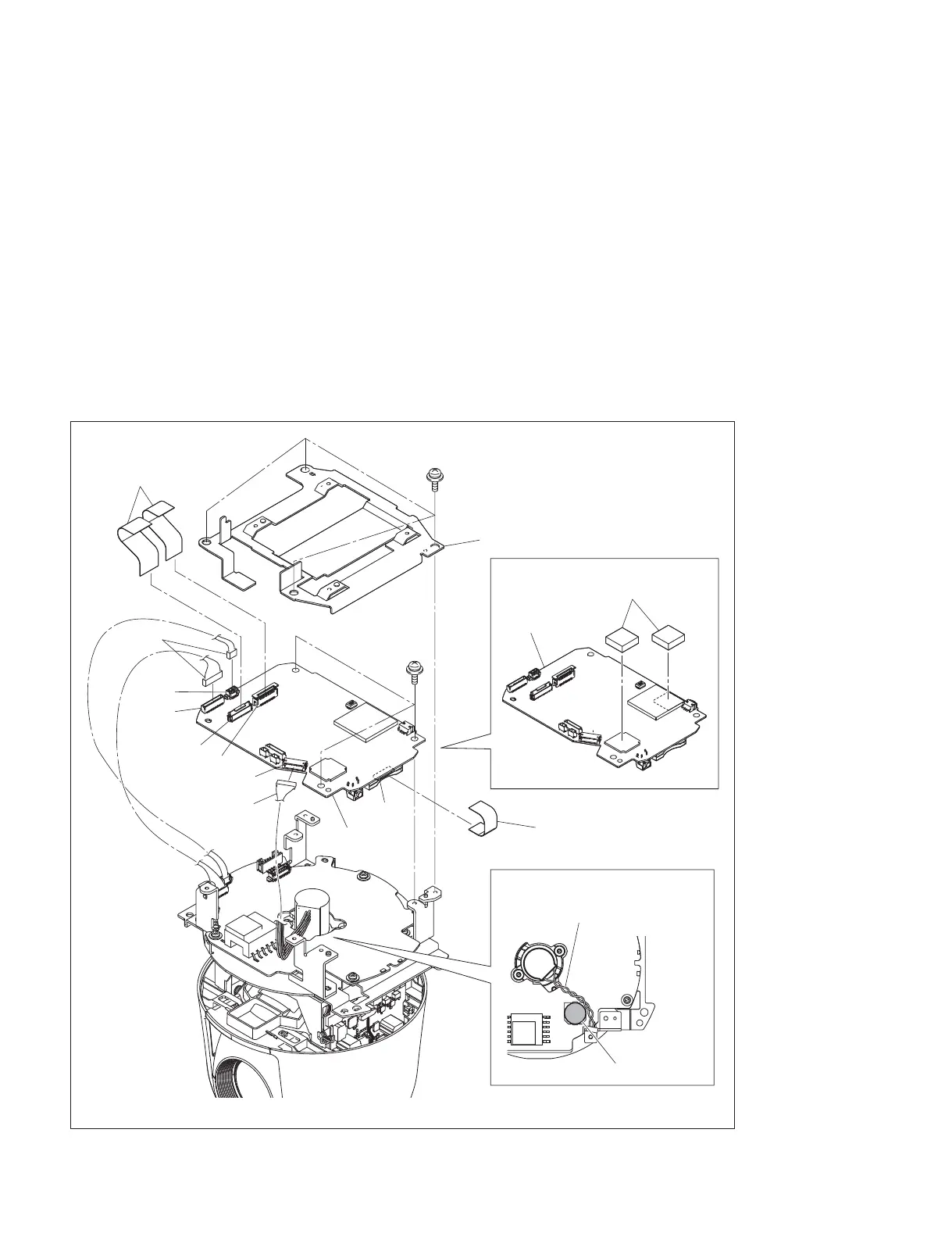

1-4-6. SY-416 Board
When replacing the SY-416 board, perform the procedure referring to Section 2.
1. Remove the cabinet. (Refer to Section 1-3.)
2. Remove the TILT block. (Refer to Section 1-4-3.)
3. Remove the HC-51 board. (Refer to Section 1-4-5.)
4. Remove the four screws, then remove the chassis (HC).
5. Disconnect the three harnesses from the connectors (CN101, CN103 and CN104) on the SY-416 board.
6. Remove the three screws, then remove the SY-416 board.
7. Disconnect the three flexible flat cables from the connectors (CN105, CN107 and CN902) on the
SY-416 board.
8. Remove the two radiation sheetsfrom the SY-416 board.
9. To install, reverse the removal procedure.
SY-416 board
CN105
CN103
CN902
CN101
CN107
CN104
PSW
2.6
) 6
SY-416 board
$
Twist the slip ring harness three turns
and rout it as shown in the illustration.
Flexible flat
cables
Flexible
flat cable
Chassis (HC)
Harness
Harnesses
PSW
2.6
) 6
Radiation sheets
Capacitor

Sony SNC-WR632C Specifications

General

Type	IP security camera
PTZ control	Yes
PTZ protocols	Pelco-D
Languages support	ARA, CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, HIN, ITA, JPN, KOR, POL, POR, RUS, THA, TUR
Placement supported	Outdoor
Light exposure modes	Auto, Manual, Shutter priority AE
Connectivity technology	Wired
IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Housing material	Aluminum
International Protection (IP) code	IP66
Pan range	0 - 360 °
White balance	ATW, Fluorescent, Indoor, Manual, One push, Outdoor, Sodium lamp
Tilt angle range	0 - 220 °
Angle of rotation	360 °
Camera shutter speed	1/1 - 1/10000 s
Minimum illumination	0.018 lx
Audio formats supported	AAC, G.711, G.726
Signal-to-Noise Ratio (SNR)	50 dB
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 \
Digital zoom	12 x
Optical zoom	30 x
Focal length range	4.3 - 129 mm
Maximum aperture number	4.7
Minimum aperture number	1.6
Closest focusing distance	0.3 m
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Total megapixels	2.38 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Compatible memory cards	SD
Maximum memory card size	64 GB
Number of users	20 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL
Cables included	AC, BNC
Behavior analysis	Intrusion detection, Object removal detection
Intelligent Video Surveillance (IVS) system features	Face detection, Intrusion, Missing object
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
AC input voltage	24 V
Power source type	AC, PoE
Power consumption (max)	80 W
Power consumption (Power over Ethernet (PoE))	55 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-40 - 50 °C
Storage relative humidity (H-H)	20 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Height	324.1 mm
Weight	4100 g
Diameter	222 mm
