1-4-9. CN-3521 Board

n When disconnecting/connecting the fine-wire coaxial cable, be sure to disconnect/connect at the

connector portion.

When disconnecting/connecting at the lead wire portion, it may cause the break of the fine-wire

coaxial cable.

1. Remove the cabinet. (Refer to Section 1-3.)

2. Remove the TILT block. (Refer to Section 1-4-3.)

3. Remove the side cabinet and camera cabinet. (Refer to steps 3 to 9 in Section 1-4-8.)

4. Disconnect the harness and fine-wire coaxial cable from the connectors (CN904 and CN908) on the

CN-3521 board.

Disconnect the two flexible flat cables from the connectors (CN902 and CN907) on the CN-3521 board.

6. Remove the two screws, then remove the CN-3521 board.

7. To install, reverse the removal procedure.

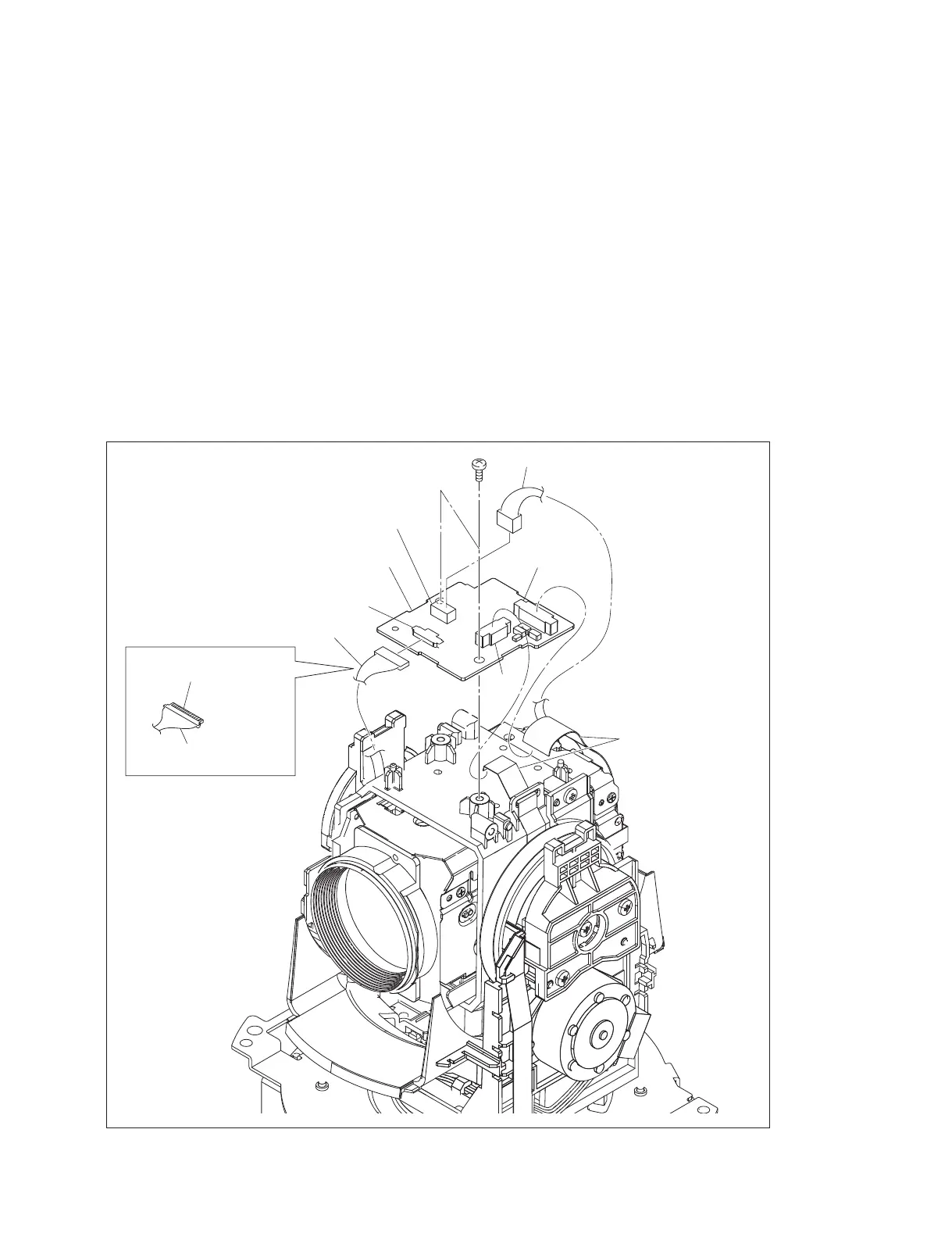

CN904

CN902

CN907

CN908

BTP2.6 ) 8

CN-3521 board

Fine-wire coaxial cable

Harness

Flexible flat cables

Fine-wire coaxial cable

Place the cable with the

contact side facing upward.
