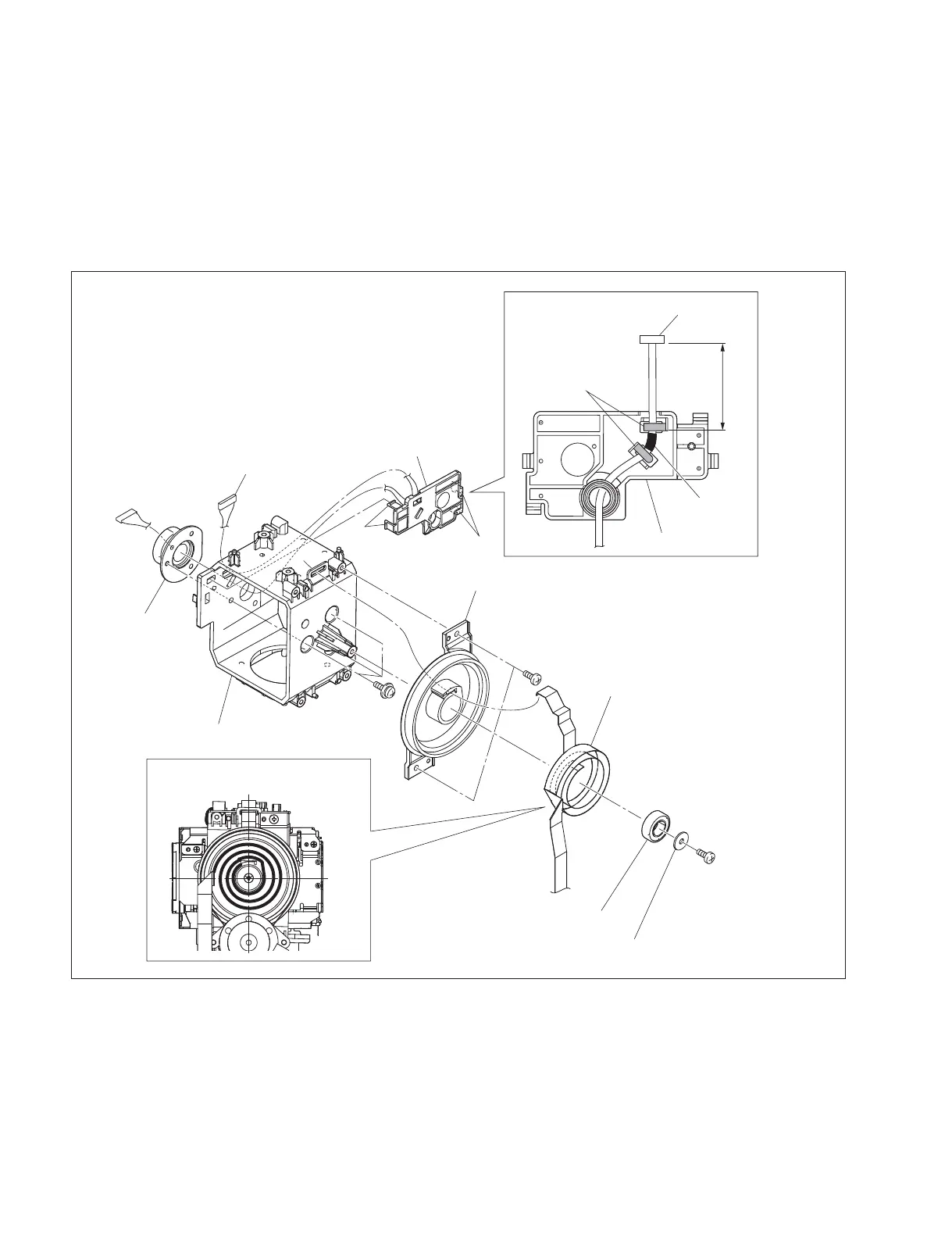

11. Remove the screw (BTP2.6 x 8), then remove the TILT bearing plate and ball bearing (L-1680).
12. Remove the two screws (BTP2.6 x 8), then remove the flexible flat cable and TILT pulley.
13. Remove the four hooks, then remove the TILT harness guide.
14. Remove the fine-wire coaxial cable.
n
Attach the fine-wire coaxial cable to the TILT harness guide as shown in the illustration.
15. Remove the three screws (PSW2.6 x 6), then remove the TILT shaft assembly.
16. To install, reverse the removal procedure.
Fine-wire coaxial cable
BTP
2.6 ) 8
BTP
2.6 ) 8
PSW
2.6 ) 6
TILT bearing plate
Ball bearing (L-1680)
Flexible flat cable
TILT pulley
TILT harness guide
TILT shaft
assembly
FCB holder
Wrap the flexible flat cable 3 and
1/4 turns.
Hooks
Hooks
Taped portion
45 mm
TILT harness guide
Fine-wire coaxial cable
Attach the fine-wire
coaxial cable so that the
taped portion is placed
between the hooks.

Sony SNC-WR632C Specifications

General

Type	IP security camera
PTZ control	Yes
PTZ protocols	Pelco-D
Languages support	ARA, CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, HIN, ITA, JPN, KOR, POL, POR, RUS, THA, TUR
Placement supported	Outdoor
Light exposure modes	Auto, Manual, Shutter priority AE
Connectivity technology	Wired
IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Housing material	Aluminum
International Protection (IP) code	IP66
Pan range	0 - 360 °
White balance	ATW, Fluorescent, Indoor, Manual, One push, Outdoor, Sodium lamp
Tilt angle range	0 - 220 °
Angle of rotation	360 °
Camera shutter speed	1/1 - 1/10000 s
Minimum illumination	0.018 lx
Audio formats supported	AAC, G.711, G.726
Signal-to-Noise Ratio (SNR)	50 dB
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 \
Digital zoom	12 x
Optical zoom	30 x
Focal length range	4.3 - 129 mm
Maximum aperture number	4.7
Minimum aperture number	1.6
Closest focusing distance	0.3 m
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Total megapixels	2.38 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Compatible memory cards	SD
Maximum memory card size	64 GB
Number of users	20 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL
Cables included	AC, BNC
Behavior analysis	Intrusion detection, Object removal detection
Intelligent Video Surveillance (IVS) system features	Face detection, Intrusion, Missing object
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
AC input voltage	24 V
Power source type	AC, PoE
Power consumption (max)	80 W
Power consumption (Power over Ethernet (PoE))	55 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-40 - 50 °C
Storage relative humidity (H-H)	20 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Height	324.1 mm
Weight	4100 g
Diameter	222 mm
