Getting Started
masterpage:Right
filename[\\Nas-data-server\SONY Current jobs\SONY STR-
DA5000ES\DTP\4247188133\424718813STRDA5000ESU\GB03CON_STR-DA5000ES-U.fm]
11
GB
model name1[STR-DA5000ES]
[4-247-188-13(4)]
1 Connect the audio jacks.
If your DVD or Super Audio CD player is equipped with multi channel output jacks, you can connect
it to this receiver’s MULTI CHANNEL INPUT jacks to enjoy the multi channel sound. Alternatively,
the multi channel input jacks can be used to connect an external multi channel decoder.
For details on the required cords (A
–H), see page 7.
Tips
• This connection also allows you to enjoy software with multi-channel audio recorded in formats other than the
Dolby Digital and DTS.
• Make connections to either the MULTI CHANNEL INPUT 1 or MULTI CHANNEL INPUT 2 jacks according to
the number of audio output jacks of the component.
Notes
• When you make connections to the MULTI CHANNEL INPUT jacks, you will need to adjust the level of the
surround speakers and sub woofer using the controls on the connected component.
• DVD and Super Audio CD players do not have SURR BACK terminals.

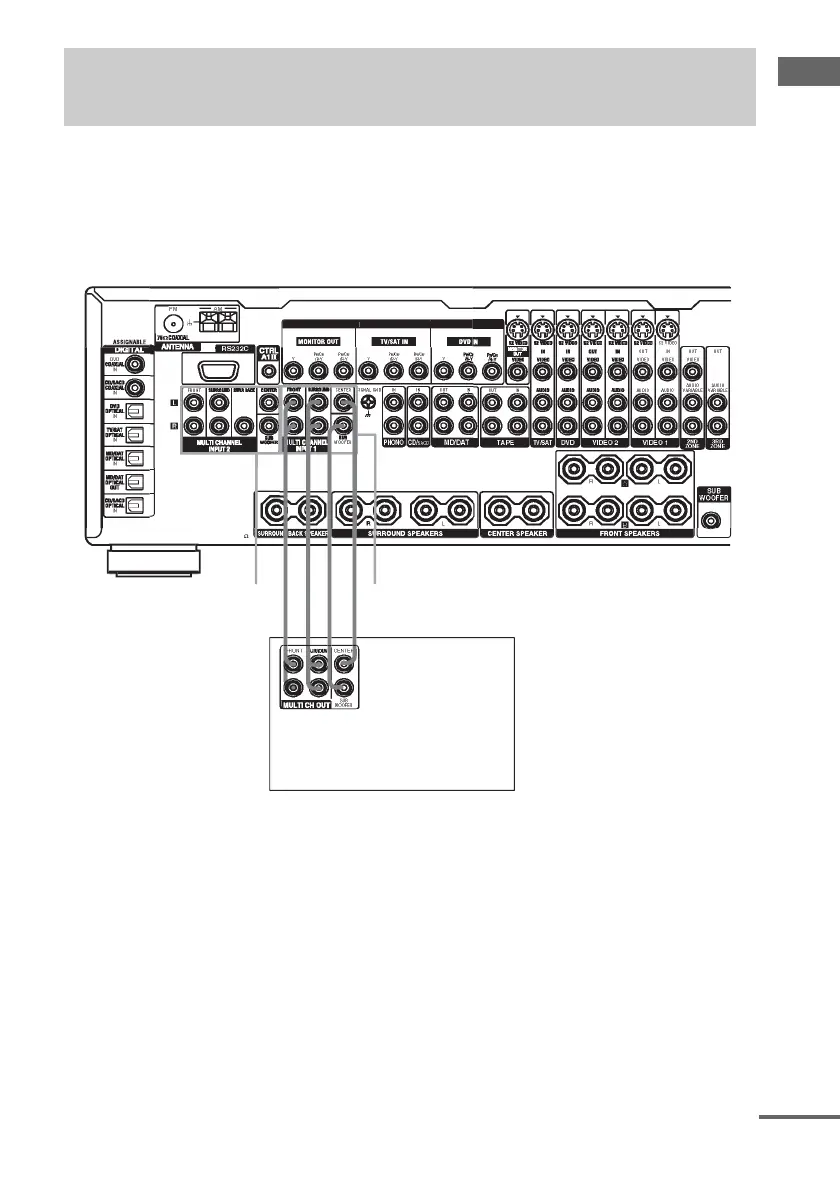

1b: Connecting components with multi channel output
jacks
CO
MP
O
NENT VIDE
O
A
U
DI
O
OUT
IMPEDAN
C
E
US
E 4-1
6
L
R
M
U
LTI
C
HANNEL
INPUT 2
A
A
G
G
M
U
LTI
C
HANNEL INP
U
T
1
DVD player,
Super Audio CD player,
Multi channel decoder, etc.
continued

Sony STR-DA3000ES Operating Instructions (STRDA3000ES) Specifications

Amplifier Section

7 Channel Power Rating	150 Watts Per Channel X 7
Stereo Power Rating	150 Watts Per Channel X 2
Input Sensitivity/Impedance (Phono)	2.5 mV/50 kOhm
Input Sensitivity/Impedance (Line Inputs/Multi-Channel Inputs 1&2)	150 mV/50 kOhm
Frequency Response	10 Hz - 50 kHz +0.5/-2 dB
Rec Out Level/Impedance	150 mV/10 kOhm
Pre Out Level/Impedance (Front)	2V /1 kOhm
Pre Out Level/Impedance (Center)	2V/1 kOhm
Pre Out Level/Impedance (Surround)	2V/1 kOhm
Pre Out Level/Impedance (Subwoofer)	2V/1 kOhm
Pre Out Level/Impedance (Surround Back)	2V/1 kOhm

Video Section

Input Sensitivity/Impedance (Composite In)	1 Vp-p/75 Ohms
Input Sensitivity/Impedance (S-Video In Y)	1 Vp-p/75 Ohms
Input Sensitivity/Impedance (S-Video In C)	0.286 Vp-p/75 Ohms
Input Sensitivity/Impedance (Component Video In Y)	1 Vp-p/75 Ohms
Input Sensitivity/Impedance (Component Video In Pb B-Y)	0.7 Vp-p/75 Ohms
Input Sensitivity/Impedance (Component Video In Pr R-Y)	0.7 Vp-p/75 Ohms
Output Sensitivity/Impedance (Composite Video Out)	1 Vp-p/75 Ohms
Output Sensitivity/Impedance (S-Video Out Y)	1 Vp-p/75 Ohms
Output Sensitivity/Impedance (S-Video Out C)	0.286 Vp-p/75 Ohms
Output Sensitivity/Impedance (Component Video Out Y)	1 Vp-p/75 Ohms
Output Sensitivity/Impedance (Component Video Out Pb B-Y)	0.7 Vp-p/75 Ohms
Output Sensitivity/Impedance (Component Video Out Pr R-Y)	0.7 Vp-p/75 Ohms

Weights & Measures

Dimensions (w/h/d)	16.92" x 6.89" x 16.93" (430 x 175 x 430mm)
Depth Including Terminals	16.93" (470mm)
Weight	28.66 lbs. (13.0 kg)

Power

Power Requirements	AC120V, 60 Hz
Power Consumption (Standby)	1W
Power Consumption (In Operation)	280W
