Getting Started
masterpage:Right
filename[\\Nas-data-server\SONY Current jobs\SONY STR-
DA5000ES\DTP\4247188133\424718813STRDA5000ESU\GB03CON_STR-DA5000ES-U.fm]
7
GB
model name1[STR-DA5000ES]
[4-247-188-13(4)]

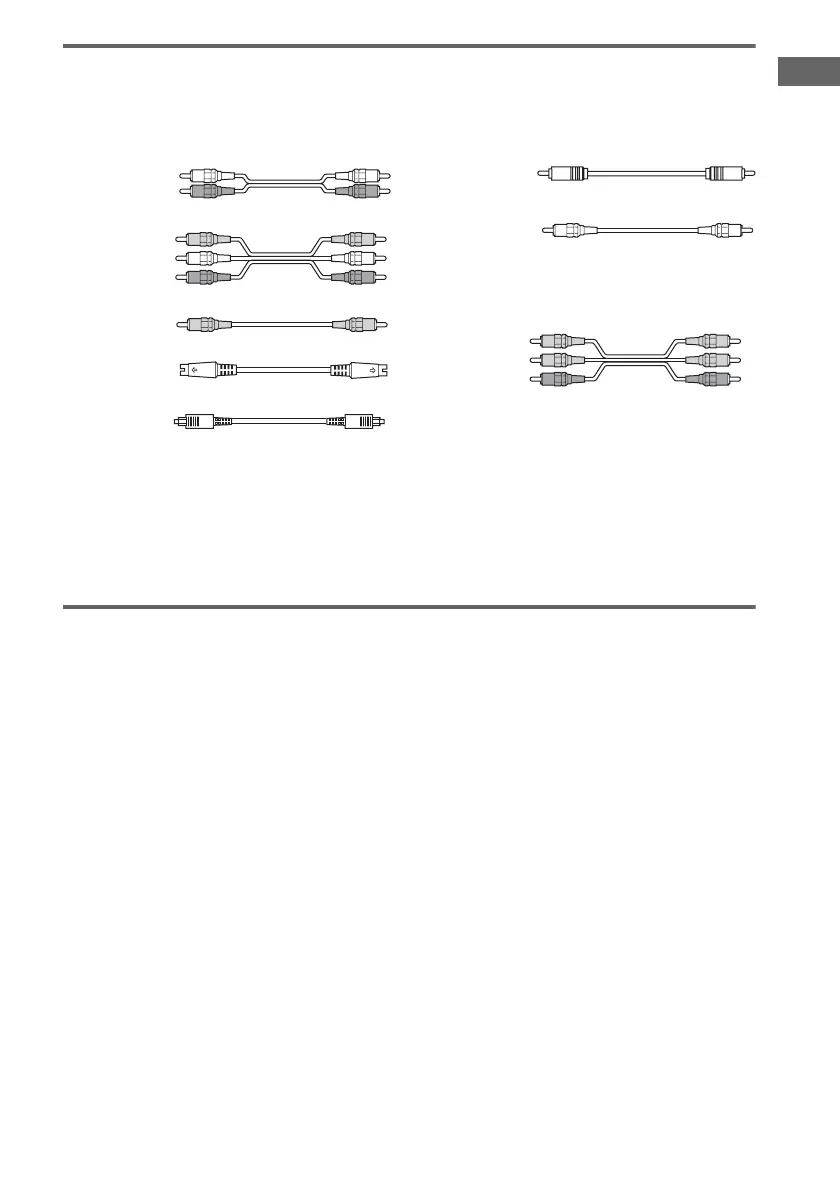

Required cords
The hookup diagrams on the subsequent pages assume the use of the following optional connection
cords (A to H) (not supplied).
A Audio cord
White (L)
Red (R)
B Audio/video cord
Yellow (video)
White (L/audio)
Red (R/audio)
C Video cord
Yellow
D S-video cord
E Optical digital cord
F Coaxial digital cord
G Monaural audio cord
Black
Tip
Audio cord A can be torn into two monaural audio
cords G.
H Component video cord
Green
Blue
Red
Notes
• Turn off the power to all components before making any connections.
• Be sure to make connections firmly to avoid hum and noise.
• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on the
components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.
• When connecting optical digital cords, insert the cord plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
If you have Sony components with CONTROL A1II/CONTROL S
jacks
See “CONTROL A1II Control System” on page 54.

Sony STR-DA3000ES Operating Instructions (STRDA3000ES) Specifications

Amplifier Section

7 Channel Power Rating	150 Watts Per Channel X 7
Stereo Power Rating	150 Watts Per Channel X 2
Input Sensitivity/Impedance (Phono)	2.5 mV/50 kOhm
Input Sensitivity/Impedance (Line Inputs/Multi-Channel Inputs 1&2)	150 mV/50 kOhm
Frequency Response	10 Hz - 50 kHz +0.5/-2 dB
Rec Out Level/Impedance	150 mV/10 kOhm
Pre Out Level/Impedance (Front)	2V /1 kOhm
Pre Out Level/Impedance (Center)	2V/1 kOhm
Pre Out Level/Impedance (Surround)	2V/1 kOhm
Pre Out Level/Impedance (Subwoofer)	2V/1 kOhm
Pre Out Level/Impedance (Surround Back)	2V/1 kOhm

Video Section

Input Sensitivity/Impedance (Composite In)	1 Vp-p/75 Ohms
Input Sensitivity/Impedance (S-Video In Y)	1 Vp-p/75 Ohms
Input Sensitivity/Impedance (S-Video In C)	0.286 Vp-p/75 Ohms
Input Sensitivity/Impedance (Component Video In Y)	1 Vp-p/75 Ohms
Input Sensitivity/Impedance (Component Video In Pb B-Y)	0.7 Vp-p/75 Ohms
Input Sensitivity/Impedance (Component Video In Pr R-Y)	0.7 Vp-p/75 Ohms
Output Sensitivity/Impedance (Composite Video Out)	1 Vp-p/75 Ohms
Output Sensitivity/Impedance (S-Video Out Y)	1 Vp-p/75 Ohms
Output Sensitivity/Impedance (S-Video Out C)	0.286 Vp-p/75 Ohms
Output Sensitivity/Impedance (Component Video Out Y)	1 Vp-p/75 Ohms
Output Sensitivity/Impedance (Component Video Out Pb B-Y)	0.7 Vp-p/75 Ohms
Output Sensitivity/Impedance (Component Video Out Pr R-Y)	0.7 Vp-p/75 Ohms

Weights & Measures

Dimensions (w/h/d)	16.92" x 6.89" x 16.93" (430 x 175 x 430mm)
Depth Including Terminals	16.93" (470mm)
Weight	28.66 lbs. (13.0 kg)

Power

Power Requirements	AC120V, 60 Hz
Power Consumption (Standby)	1W
Power Consumption (In Operation)	280W
