Sony STR-DB780 User Manual

Getting Started
19
GB
SPEAKERS
SUB
WOOFER
L
R
MONITOR
OUT
TV/SAT
IN
DVD/LD
IN
COMPONENT VIDEO
Y
P
B /C B
/B-Y
P
R /C R
/R-Y
AC OUTLET
IMPEDANCE USE 4-16Ω
L
R
–
+
FRONT
– +
CENTER
+
–
SURROUND
PRE OUT
FRONT CENTER SURROUND
OUT
R
L
I MPEDANCE
SELECTOR
4 Ω 8 Ω
Ee
E e
E
e
INPUT
AUDIO
IN
A
Ee
A
B
A
A
IMPEDANCE
SELECTOR
E e
A

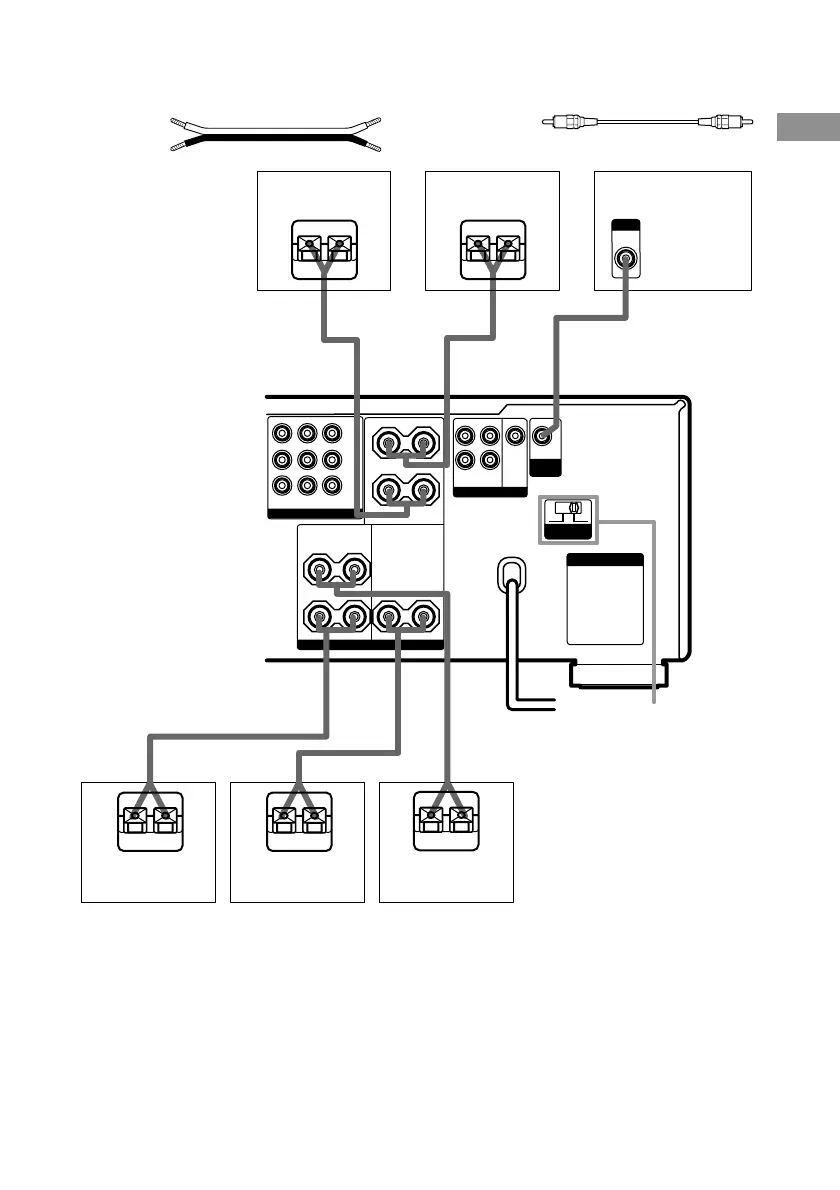

Front speaker (L)
Front speaker (R)
Center speaker
Surround speaker
(L)
Surround speaker
(R)
Active sub woofer
A Speaker cords (not supplied)
(+)
(–)
Required cords
B Monaural audio cord (not supplied)
Black

Sony STR-DB780 Specifications

General

Type	Stereo Receiver
Total Harmonic Distortion	0.09 %
Digital inputs	2 Optical, 1 Coaxial
Weight	10.5 kg
Video inputs	composite
Video outputs	1 composite, 1 S-Video
Output Power	100 Watts (8 Ohms, 20 Hz - 20 kHz, 0.09% THD)
Signal-to-Noise Ratio	96 dB (Line in)
Input Sensitivity	150 mV (Line in)
