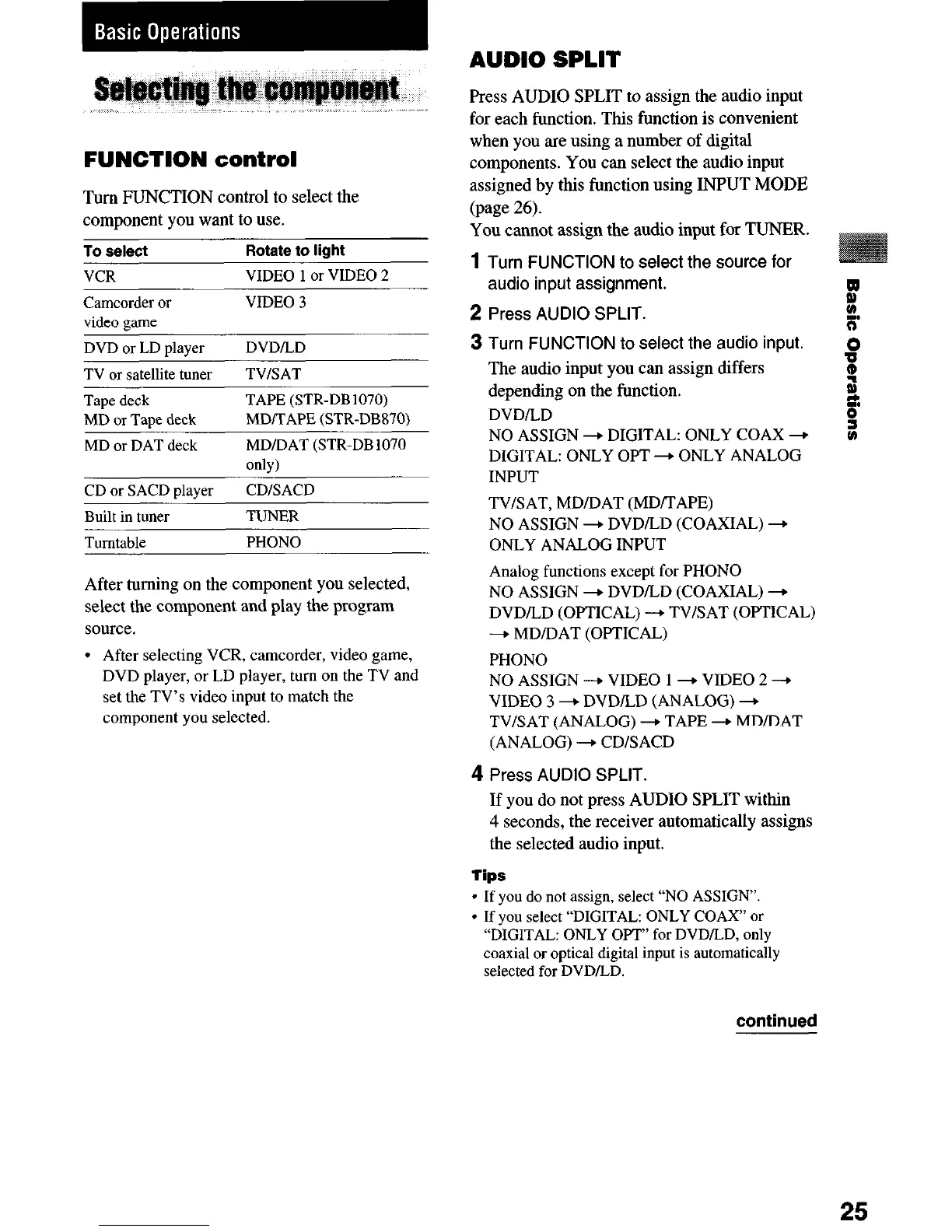

FUNCTION control
Turn FUNCTION control to select the
component you want to use.
To select Rotate to light
VCR
VIDEO 1 or VIDEO 2
Camcorder or
video game
VIDEO 3
DVD or LD player
TV or satellite tuner
DVDiLD
TV/SAT
Tape deck
MD or Tape deck
TAPE (STR-DB1070)
MD/TAPE (STR-DB870)
MD or DAT deck MDiDAT (STR-DB1070
only)
CD or SACD olaver
CDISACD
Built in tuner TUNER
Turntable PHONO
After turning on the component you selected,
select the component and play the program
source.
l After selecting VCR, camcorder, video game,
DVD player, or LD player, turn on the TV and
set the TV’s video input to match the
component you selected.
AUDIO SPLIT
Press AUDIO SPLIT to assign the audio input
for each function. This function is convenient
when you are using a number of digital
components. You can select the audio input
assigned by this function using INPUT MODE
(page 26).
You cannot assign the audio input for TUNER.
1 Turn FUNCTION to select the source for
audio input assignment.
2 Press AUDIO SPLIT.
3 Turn FUNCTION to select the audio input.
The audio input you can assign differs
depending on the function.
DVD/LD
NO ASSIGN + DIGITAL: ONLY COAX --)L
DIGITAL: ONLY OPT --, ONLY ANALOG
INPUT
TV/SAT, MDiDAT (MD/TAPE)
NO ASSIGN + DVD/LD (COAXIAL) --c
ONLY ANALOG INPUT
Analog functions except for PHONO
NO ASSIGN + DVD/LD (COAXIAL) --,
DVD/LD (OPTICAL) -+ TV/SAT (OPTICAL)
+ MD/DAT (OPTICAL)
PHONO
NO ASSIGN -+ VIDEO 1 --, VIDEO 2 +
VIDEO 3 + DVD/LD (ANALOG) --,
TV/SAT (ANALOG) + TAPE --, MD/DAT
(ANALOG) -+ CD/SACD
4 Press AUDIO SPLIT.
If you do not press AUDIO SPLIT within
4 seconds, the receiver automatically assigns
the selected audio input.
Tips
l If you do not assign, select “NO ASSIGN”.
l If you select “DIGITAL: ONLY COAX” or
“DIGITAL: ONLY OPT” for DVD/LD, only
coaxial or optical digital input is automatically
selected for DVD/LD.
continued
B
m.
P
(P
a
Z.
0
7
25
