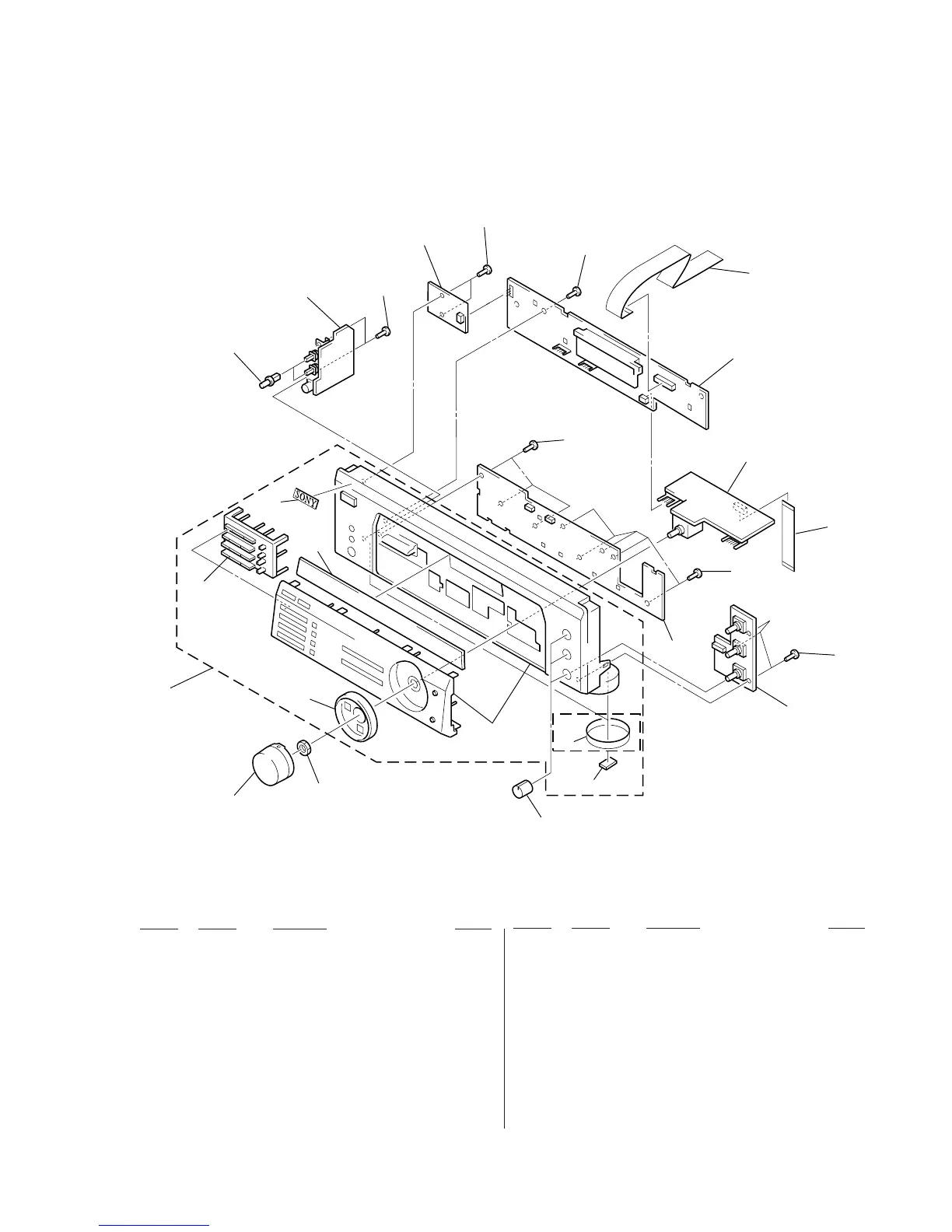

Sony STR-DE135 - Front Panel Section Exploded View

– 29 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
(2) FRONT PANEL SECTION
51 X-4951-035-1 KNOB (VOL) ASSY
52 X-4951-038-1 FRONT PANEL ASSY (US)
52 X-4951-078-1 FRONT PANEL ASSY (AEP, UK)
53 4-216-792-01 RING (VOL)
54 4-216-779-01 BUTTON (KEY)
55 4-216-794-11 PLATE INDICATION (US)
55 4-216-794-21 PLATE INDICATION (AEP, UK)
56 4-996-698-01 EMBLEM, SONY
57 4-951-801-01 BUTTON (S)
58 1-673-027-11 SPK SWITCH BOARD
59 4-951-620-01 SCREW (2.6X8), +BVTP
60 1-673-030-11 POWER SWITCH BOARD
61 1-782-084-11 WIRE (FLAT TYPE) (23 CORE)
62 A-4417-997-A DISPLAY BOARD, COMPLETE (US)
62 A-4419-176-A DISPLAY BOARD, COMPLETE (AEP, UK)
63 1-673-024-11 VOLUME BOARD
64 1-769-941-11 WIRE (FLAT TYPE) (11 CORE)
65 1-673-025-11 TONE BOARD
66 A-4419-001-A KEY BOARD, COMPLETE (US)
66 A-4419-178-A KEY BOARD, COMPLETE (AEP, UK)
67 4-998-717-01 KNOB (BAL)
68 4-977-593-11 RING (DIA. 50), ORNAMENTAL
57
58
59
60
59
59
61
62
59
63
64
59
59
65
66
68
67
51
52
53
54
55
56
not
supplied
not supplied
supplied
with RV404
AEP, UK
