Sony STR-DE135 - Chassis Section Exploded View

– 30 –

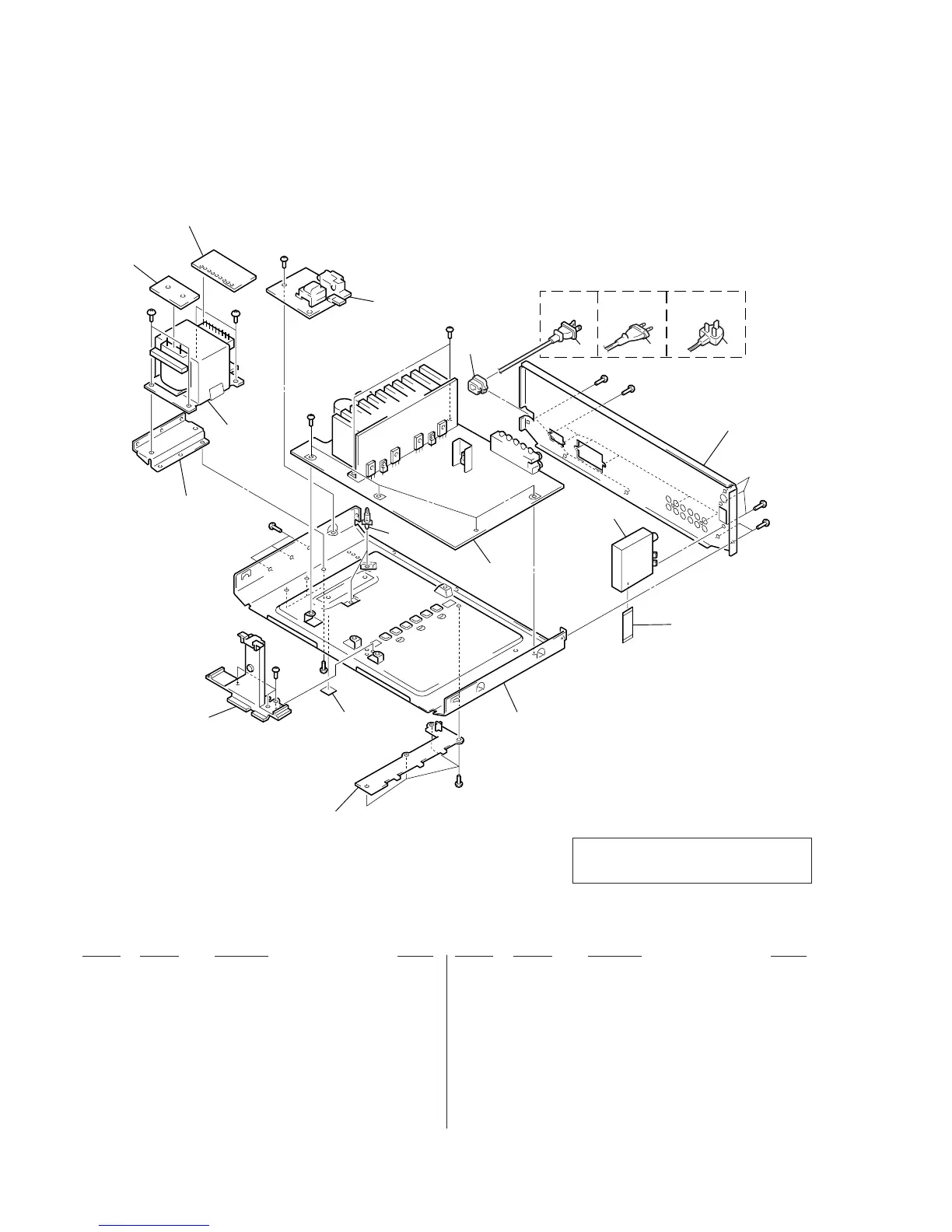

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-217-872-11 BOTTOM COVER
102 4-216-798-11 SUB (MOLD)
103 1-673-028-11 PRIMARY BOARD
104 1-673-029-11 SECONDARY BOARD
105 1-673-026-11 STANDBY TRANS BOARD
* 106 3-703-244-00 BUSHING (2104), CORD
! 107 1-777-071-21 CORD, POWER (AEP)
! 107 1-783-820-11 CORD, POWER (US)
! 107 1-790-226-11 CORD, POWER (UK)
108 4-216-802-01 BACK PANEL (E20) (US)
108 4-216-802-11 BACK PANEL (E20) (AEP)
108 4-216-802-21 BACK PANEL (E20) (UK)
109 1-493-407-51 TUNER PACK (AEP, UK)
109 1-693-408-61 TUNER PACK (US)
110 1-773-001-11 WIRE (FLAT TYPE) (15 CORE)
111 A-4419-005-A MAIN BOARD, COMPLETE (US)
111 A-4419-179-A MAIN BOARD, COMPLETE (AEP, UK)
112 4-924-098-01 HOLDER, PC BOARD
! T901 1-433-712-11 TRANSFORMER, POWER (AEP, UK)
! T901 1-433-720-11 TRANSFORMER, POWER (US)
#3
T901
not
supplied
#1
#2
#1
not
supplied
#1
not
supplied
#1
#1
#1
#1
#1
#1
#1
#3
US AEP
UK
105
104
103
106
107
107 107
108
109
110
112
101
102
111
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
