Sony STR-DE235 - Printed Wiring Boards

STR-DE235
– 15 –
– 16 –

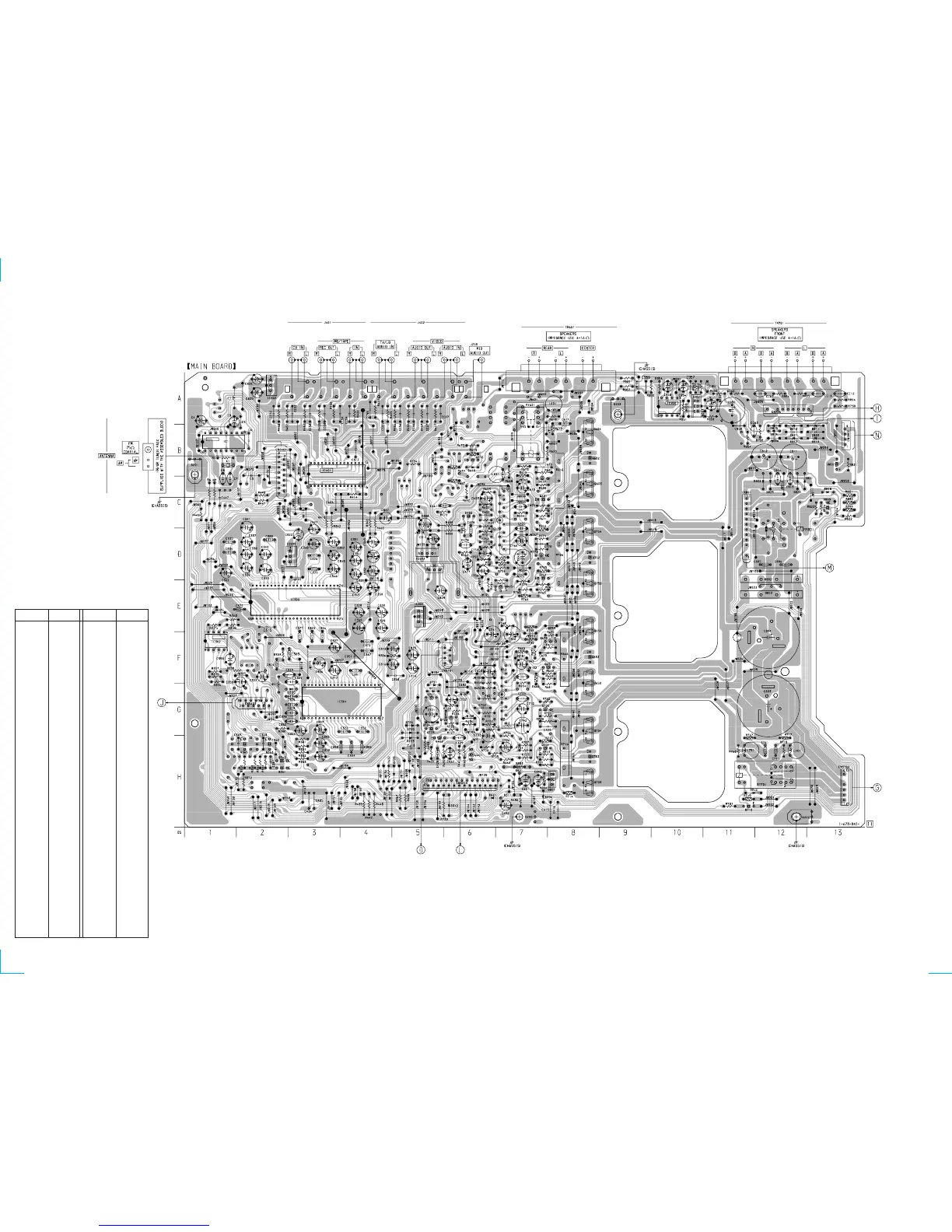

4-5. PRINTED WIRING BOARD – MAIN Board– • See page 14 for Circuit Boards Location.
(Page 17)
(Page 17)
(Page
17)
(Page 18)
(Page 17)
(Page 27)(Page 31)
D300 G-3
D311 H-7
D312 H-6
D421 H-6
D610 B-6
D710 H-11
D721 G-5
D722 G-5
D723 H-5
D724 G-5
D725 G-5
D726 G-5
D727 H-5
D728 H-5
D801 H-7
D802 D-12
D803 E-12
D804 H-7
D810 B-13
D811 B-13
D812 B-12
D813 B-12
D814 B-12
D815 B-12
D818 C-13
D820 C-12
D821 C-12
D822 C-12
D823 C-12
IC1 B-1
IC300 E-3
IC301 G-4
IC302 F-1
IC401 B-3
IC701 G-7
IC702 C-7
IC801 D-5
IC802 D-5
IC803 A-2
IC804 E-5
IC805 D-3
IC950 A-10
Q361 H-2
Q362 H-2
Q363 H-2
Q365 H-2
Q401 H-6
Q402 C-6
Q451 E-7
Q452 H-5
Q601 C-7
Q602 B-8
Q603 C-8
Q604 B-8
Q610 B-6
Q620 C-7
Q651 F-8
Q652 F-8
Q653 F-8
Q654 E-8
Q670 F-8
Q701 H-7
Q702 H-8
Q703 H-8
Q704 G-8
Q710 H-11
Q720 G-7
Q721 G-5
Q722 G-6
Q723 G-5
Q751 D-7
Q752 D-8
Q753 E-8
Q754 D-8
Q770 D-7
Q801 H-8
Q802 B-13
Q809 C-13
Q951 A-10
Ref. No. LocationRef. No. Location
• Semiconductor Location
(PAGE
31)
