Sony STR-DE235 - Printed Wiring Boards - VOLUME Board;Tone Board; Schematic Diagram - VOLUME Board;Tone Board

STR-DE235
– 31 –
– 32 –

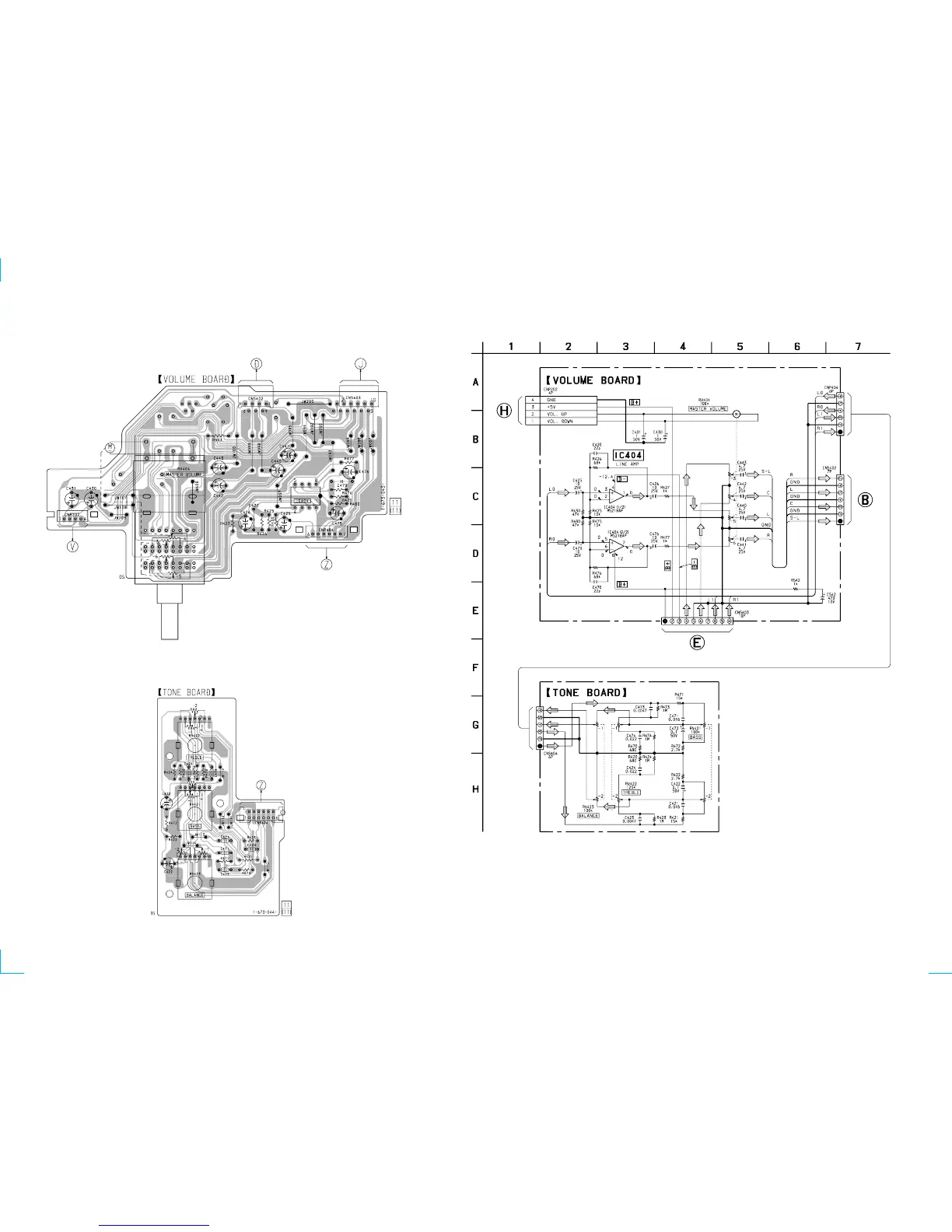

4-13. PRINTED WIRING BOARDS – VOLUME Board/TONE Board –
• See page 14 for Circuit Boards Location.
4-14. SCHEMATIC DIAGRAM – VOLUME Board/TONE Board –
(Page 15) (Page 15)
(Page 27)
(Page 29)
(Page 23)
(Page 19)
