– 38 –

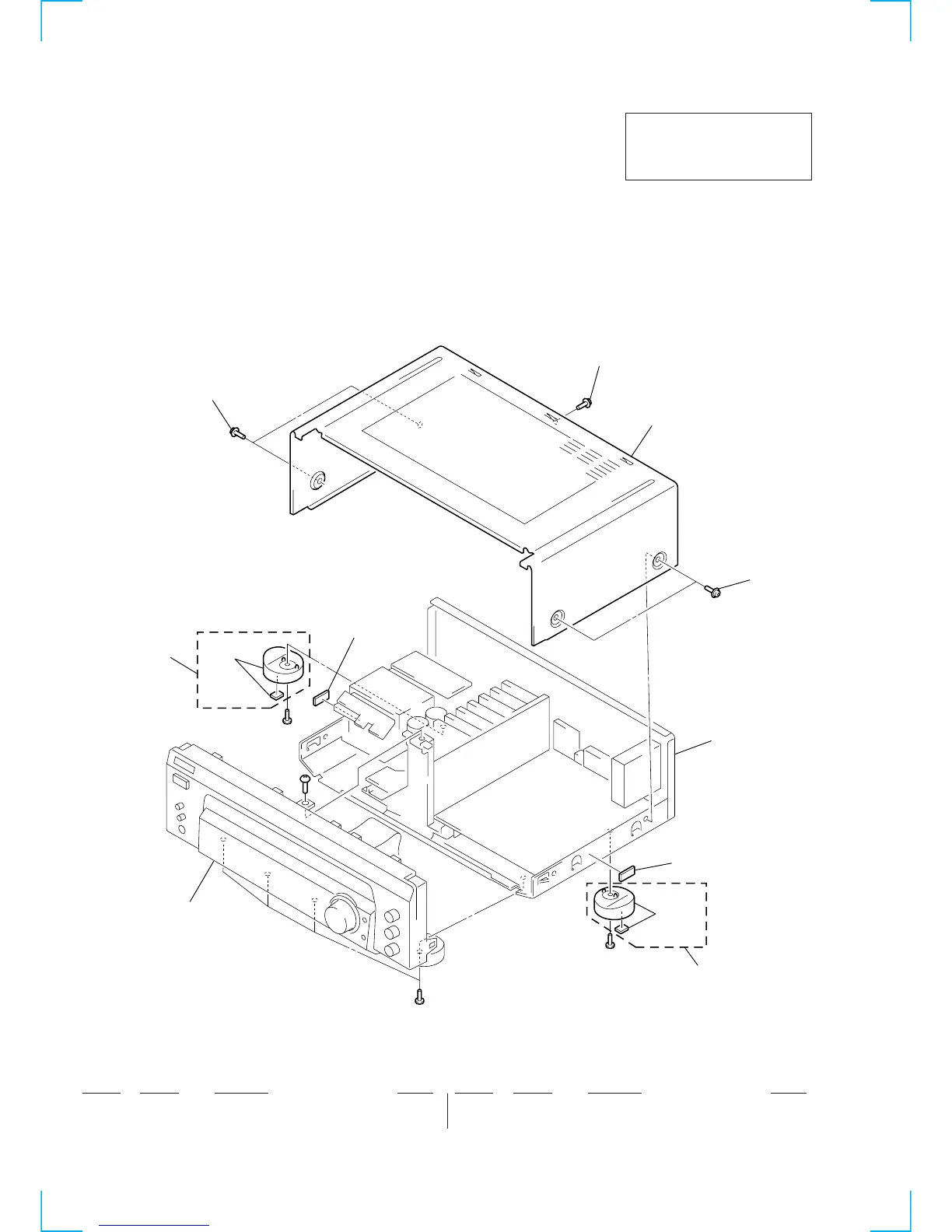

(1) CASE SECTION
SECTION 5
EXPLODED VIEWS
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4947-207-1 FOOT ASSY (F50150S)
2 4-210-291-01 SCREW (CASE 3 TP2)
* 3 4-998-206-21 CASE (413226)
2
1
2
2
3
not
supplied
Front panel
section
not
supplied
#1
#1
#1
#1
not
supplied
1
not
supplied
Chassis section
To Next Page
