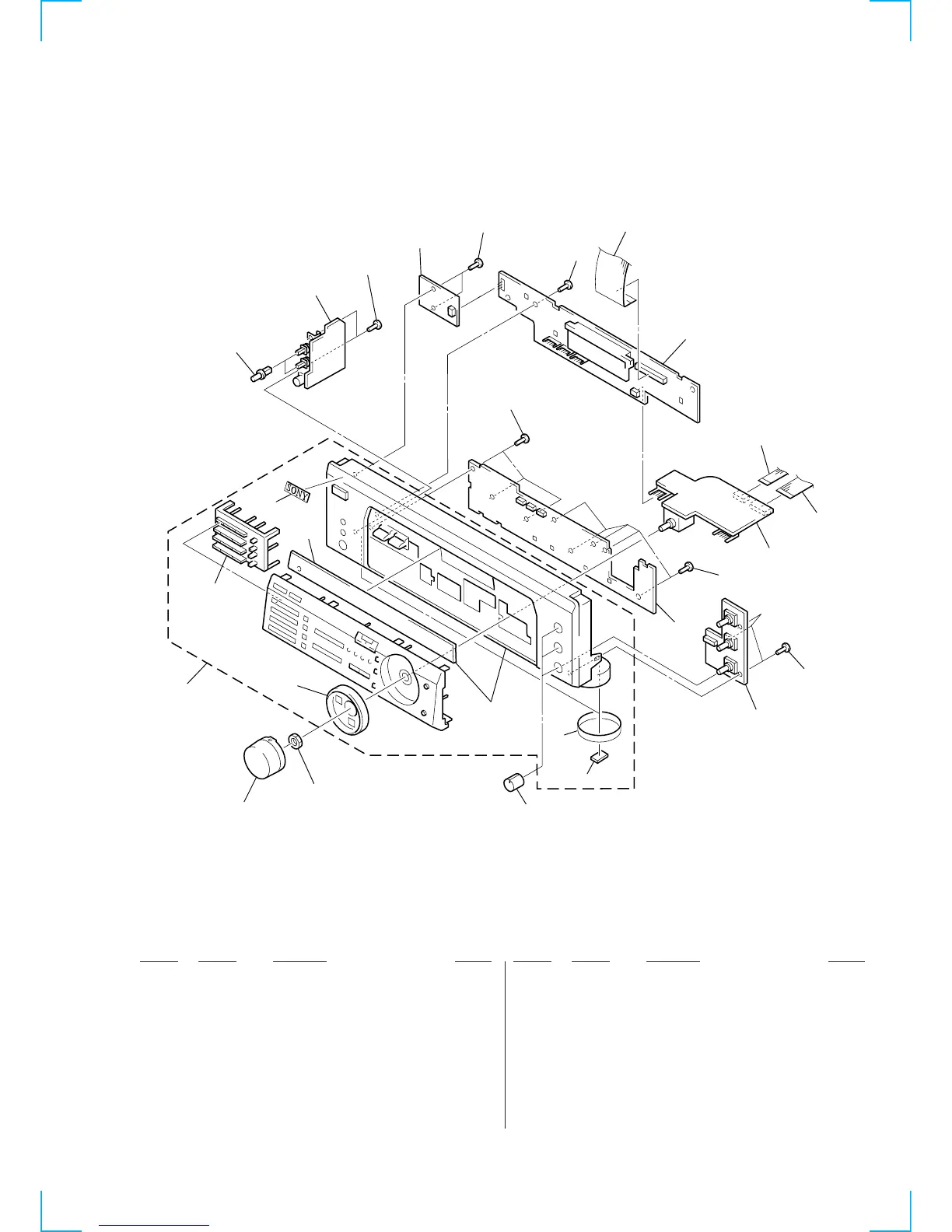

Sony STR-DE235 - Front Panel Section Exploded View

– 39 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
(2) FRONT PANEL SECTION
51 X-4951-035-1 KNOB (VOL) ASSY
52 X-4951-037-1 FRONT PANEL ASSY
53 4-216-792-01 RING (VOL)
54 4-216-779-01 BUTTON (KEY)
55 4-216-794-31 PLATE INDICATION
56 4-996-698-01 EMBLEM, SONY
57 4-951-801-01 BUTTON (S)
58 1-673-045-11 SP SW BOARD
59 4-951-620-01 SCREW (2.6X8), +BVTP
60 1-673-051-11 POWER SWITCH BOARD
61 1-765-348-11 WIRE (FLAT TYPE) (27 CORE)
62 A-4419-011-A DISPLAY BOARD, COMPLETE
63 1-765-314-11 WIRE (FLAT TYPE) (7 CORE)
64 1-769-941-11 WIRE (FLAT TYPE) (11 CORE)
65 1-673-043-11 VOLUME BOARD
66 1-673-044-11 TONE BOARD
67 A-4419-013-A KEY BOARD, COMPLETE
68 4-998-717-01 KNOB (BAL)
69 4-977-593-11 RING (DIA. 50), ORNAMENTAL
51
52
53
54
55
56
57
58
59
59
59
60
61
62
63
64
65
59
59
69
68
67
66
59
not supplied
not
supplied
supplied with
RV404
