Sony STR-DE235 - Section 2 Disassembly; Case Section; Front Panel Section

– 4 –
CASE
FRONT PANEL SECTION
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY

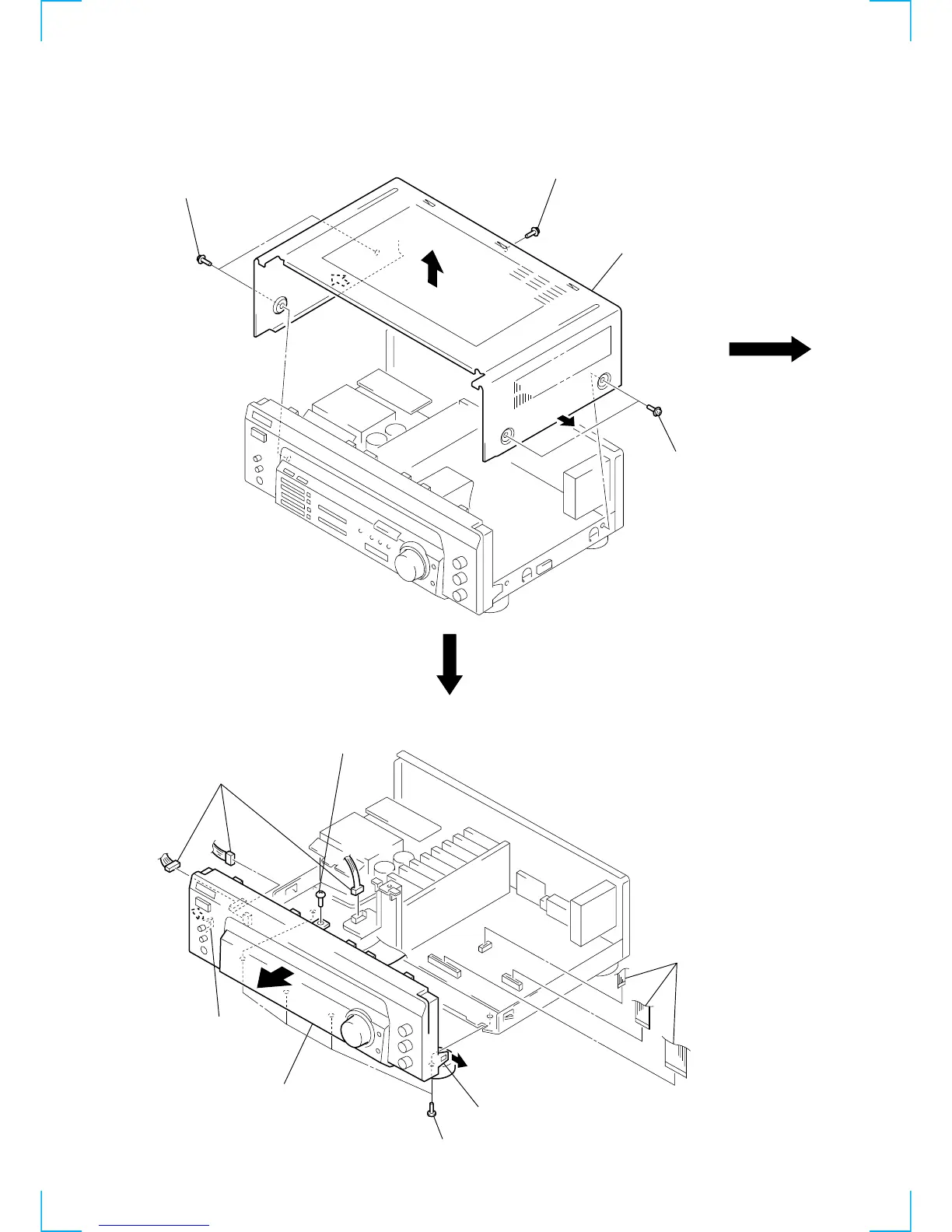

1 two screws
(case3 TP2)
1 screw (case3 TP2)
1 two screws
(case3 TP2
)
2 case
2 three connectors
(CNP702 – 704)
4 claw
5 front panel section
3 screw
(BVTP3
× 8)
3 four screws
(BVTP3
× 8)
4 claw
1 three flat wires
(CNS204, 403, 701
)
