Sony STR-DE235 - Chassis Section Exploded View

– 40 –

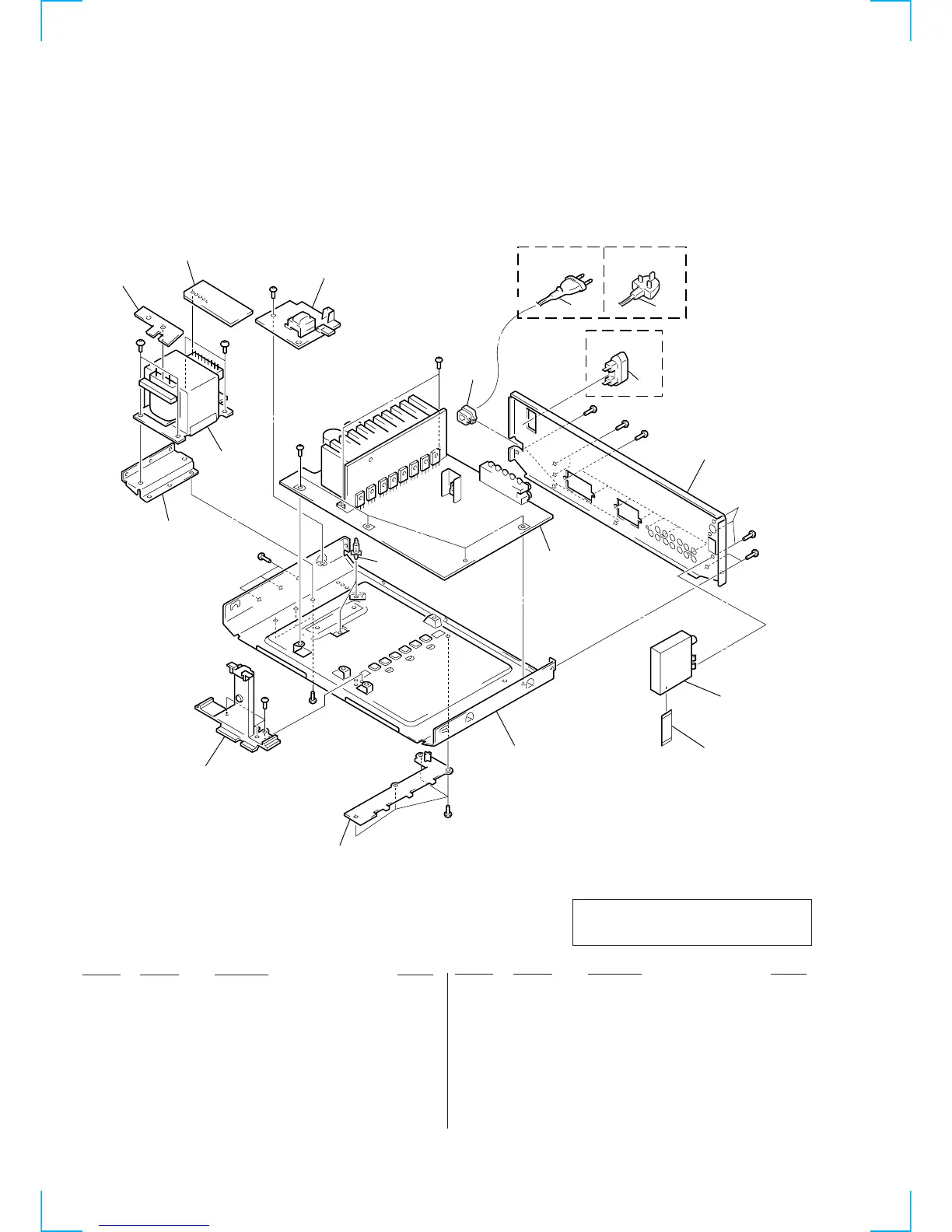

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-217-872-11 BOTTOM COVER
102 4-216-798-11 SUB (MOLD)
103 1-673-050-11 PRIMARY BOARD
104 1-673-049-11 SECONDARY BOARD
105 1-673-048-11 STANDBY BOARD
* 106 3-703-244-00 BUSHING (2104), CORD
! 107 1-777-071-21 CORD, POWER (AEP)
! 107 1-790-226-11 CORD, POWER (UK)
! 108 1-526-794-11 OUTLET, AC (AEP)
109 4-216-800-01 BACK PANEL (E25) (AEP)
109 4-216-800-21 BACK PANEL (E25) (UK)
110 1-693-408-41 TUNER PACK
111 1-773-001-11 WIRE (FLAT TYPE) (15 CORE)
112 A-4419-015-A MAIN BOARD, COMPLETE
113 4-924-098-01 HOLDER, PC BOARD
114 4-956-370-12 BAND, PLUG FIXED (UK)
! T901 1-433-719-11 TRANSFORMER, POWER
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
101
102
113
#1
#1
#1
#1
#3
#3
#1
#1
#1
#1
#1
#1
#1
AEP
AEP
UK
#2
not
supplied
not
supplied
T901
103
104
105
106
109
112
110
111
107
108
107
