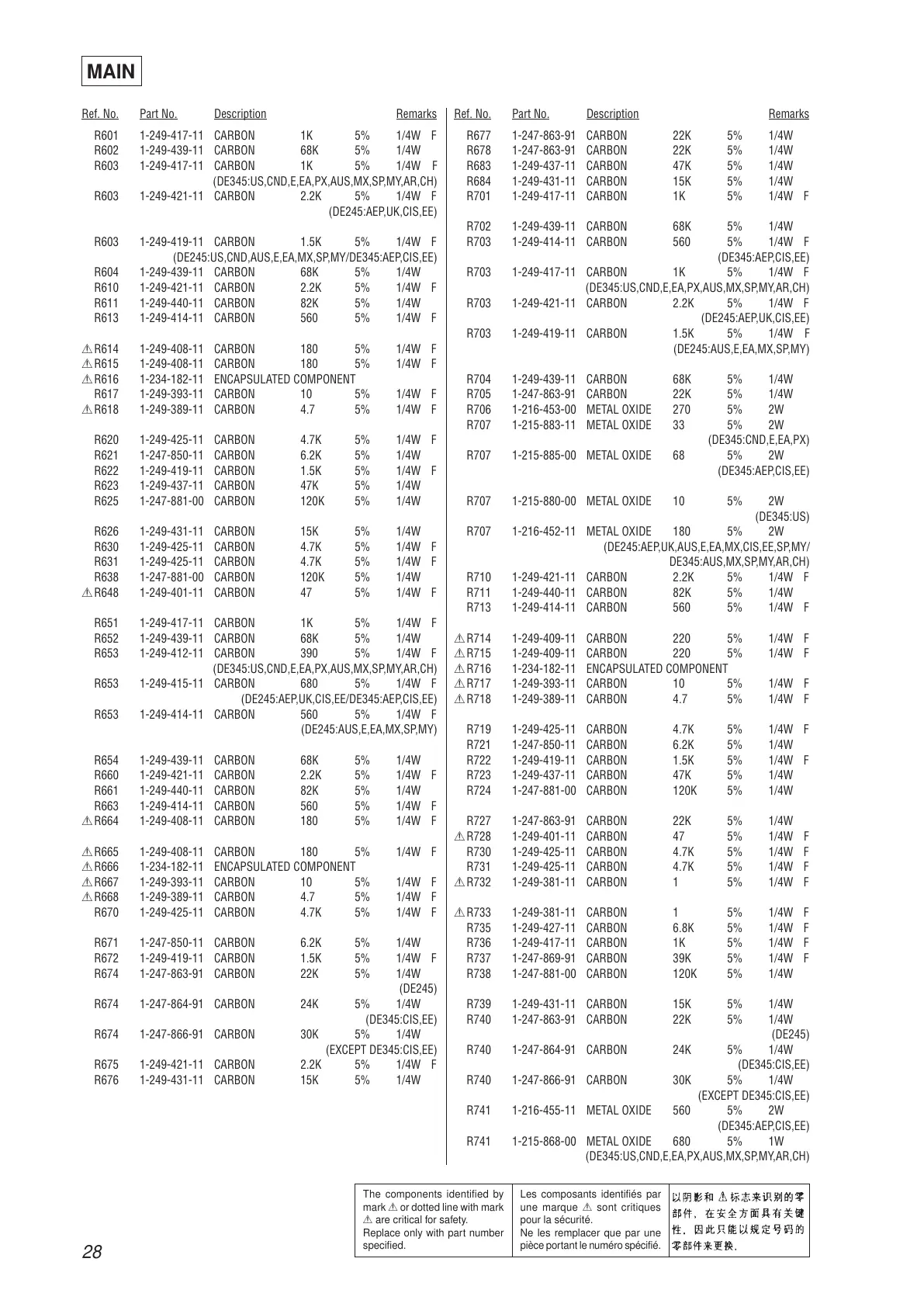

Sony STR-DE245 - Transistors and Resistors

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
28
R601 1-249-417-11 CARBON 1K 5% 1/4W F
R602 1-249-439-11 CARBON 68K 5% 1/4W
R603 1-249-417-11 CARBON 1K 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R603 1-249-421-11 CARBON 2.2K 5% 1/4W F
(DE245:AEP,UK,CIS,EE)
R603 1-249-419-11 CARBON 1.5K 5% 1/4W F
(DE245:US,CND,AUS,E,EA,MX,SP,MY/DE345:AEP,CIS,EE)
R604 1-249-439-11 CARBON 68K 5% 1/4W
R610 1-249-421-11 CARBON 2.2K 5% 1/4W F
R611 1-249-440-11 CARBON 82K 5% 1/4W
R613 1-249-414-11 CARBON 560 5% 1/4W F
0 R614 1-249-408-11 CARBON 180 5% 1/4W F
0 R615 1-249-408-11 CARBON 180 5% 1/4W F
0 R616 1-234-182-11 ENCAPSULATED COMPONENT
R617 1-249-393-11 CARBON 10 5% 1/4W F
0 R618 1-249-389-11 CARBON 4.7 5% 1/4W F
R620 1-249-425-11 CARBON 4.7K 5% 1/4W F
R621 1-247-850-11 CARBON 6.2K 5% 1/4W
R622 1-249-419-11 CARBON 1.5K 5% 1/4W F
R623 1-249-437-11 CARBON 47K 5% 1/4W
R625 1-247-881-00 CARBON 120K 5% 1/4W
R626 1-249-431-11 CARBON 15K 5% 1/4W
R630 1-249-425-11 CARBON 4.7K 5% 1/4W F
R631 1-249-425-11 CARBON 4.7K 5% 1/4W F
R638 1-247-881-00 CARBON 120K 5% 1/4W
0 R648 1-249-401-11 CARBON 47 5% 1/4W F
R651 1-249-417-11 CARBON 1K 5% 1/4W F
R652 1-249-439-11 CARBON 68K 5% 1/4W
R653 1-249-412-11 CARBON 390 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R653 1-249-415-11 CARBON 680 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R653 1-249-414-11 CARBON 560 5% 1/4W F
(DE245:AUS,E,EA,MX,SP,MY)
R654 1-249-439-11 CARBON 68K 5% 1/4W
R660 1-249-421-11 CARBON 2.2K 5% 1/4W F
R661 1-249-440-11 CARBON 82K 5% 1/4W
R663 1-249-414-11 CARBON 560 5% 1/4W F
0 R664 1-249-408-11 CARBON 180 5% 1/4W F
0 R665 1-249-408-11 CARBON 180 5% 1/4W F
0 R666 1-234-182-11 ENCAPSULATED COMPONENT
0 R667 1-249-393-11 CARBON 10 5% 1/4W F
0 R668 1-249-389-11 CARBON 4.7 5% 1/4W F
R670 1-249-425-11 CARBON 4.7K 5% 1/4W F
R671 1-247-850-11 CARBON 6.2K 5% 1/4W
R672 1-249-419-11 CARBON 1.5K 5% 1/4W F
R674 1-247-863-91 CARBON 22K 5% 1/4W
(DE245)
R674 1-247-864-91 CARBON 24K 5% 1/4W
(DE345:CIS,EE)
R674 1-247-866-91 CARBON 30K 5% 1/4W
(EXCEPT DE345:CIS,EE)
R675 1-249-421-11 CARBON 2.2K 5% 1/4W F
R676 1-249-431-11 CARBON 15K 5% 1/4W
R677 1-247-863-91 CARBON 22K 5% 1/4W
R678 1-247-863-91 CARBON 22K 5% 1/4W
R683 1-249-437-11 CARBON 47K 5% 1/4W
R684 1-249-431-11 CARBON 15K 5% 1/4W
R701 1-249-417-11 CARBON 1K 5% 1/4W F
R702 1-249-439-11 CARBON 68K 5% 1/4W
R703 1-249-414-11 CARBON 560 5% 1/4W F
(DE345:AEP,CIS,EE)
R703 1-249-417-11 CARBON 1K 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R703 1-249-421-11 CARBON 2.2K 5% 1/4W F
(DE245:AEP,UK,CIS,EE)
R703 1-249-419-11 CARBON 1.5K 5% 1/4W F
(DE245:AUS,E,EA,MX,SP,MY)
R704 1-249-439-11 CARBON 68K 5% 1/4W
R705 1-247-863-91 CARBON 22K 5% 1/4W
R706 1-216-453-00 METAL OXIDE 270 5% 2W
R707 1-215-883-11 METAL OXIDE 33 5% 2W
(DE345:CND,E,EA,PX)
R707 1-215-885-00 METAL OXIDE 68 5% 2W
(DE345:AEP,CIS,EE)
R707 1-215-880-00 METAL OXIDE 10 5% 2W
(DE345:US)
R707 1-216-452-11 METAL OXIDE 180 5% 2W
(DE245:AEP,UK,AUS,E,EA,MX,CIS,EE,SP,MY/
DE345:AUS,MX,SP,MY,AR,CH)
R710 1-249-421-11 CARBON 2.2K 5% 1/4W F
R711 1-249-440-11 CARBON 82K 5% 1/4W
R713 1-249-414-11 CARBON 560 5% 1/4W F
0 R714 1-249-409-11 CARBON 220 5% 1/4W F
0 R715 1-249-409-11 CARBON 220 5% 1/4W F
0 R716 1-234-182-11 ENCAPSULATED COMPONENT
0 R717 1-249-393-11 CARBON 10 5% 1/4W F
0 R718 1-249-389-11 CARBON 4.7 5% 1/4W F
R719 1-249-425-11 CARBON 4.7K 5% 1/4W F
R721 1-247-850-11 CARBON 6.2K 5% 1/4W
R722 1-249-419-11 CARBON 1.5K 5% 1/4W F
R723 1-249-437-11 CARBON 47K 5% 1/4W
R724 1-247-881-00 CARBON 120K 5% 1/4W
R727 1-247-863-91 CARBON 22K 5% 1/4W
0 R728 1-249-401-11 CARBON 47 5% 1/4W F
R730 1-249-425-11 CARBON 4.7K 5% 1/4W F
R731 1-249-425-11 CARBON 4.7K 5% 1/4W F
0 R732 1-249-381-11 CARBON 1 5% 1/4W F
0 R733 1-249-381-11 CARBON 1 5% 1/4W F
R735 1-249-427-11 CARBON 6.8K 5% 1/4W F
R736 1-249-417-11 CARBON 1K 5% 1/4W F
R737 1-247-869-91 CARBON 39K 5% 1/4W F
R738 1-247-881-00 CARBON 120K 5% 1/4W
R739 1-249-431-11 CARBON 15K 5% 1/4W
R740 1-247-863-91 CARBON 22K 5% 1/4W
(DE245)
R740 1-247-864-91 CARBON 24K 5% 1/4W
(DE345:CIS,EE)
R740 1-247-866-91 CARBON 30K 5% 1/4W
(EXCEPT DE345:CIS,EE)
R741 1-216-455-11 METAL OXIDE 560 5% 2W
(DE345:AEP,CIS,EE)
R741 1-215-868-00 METAL OXIDE 680 5% 1W
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
MAIN
