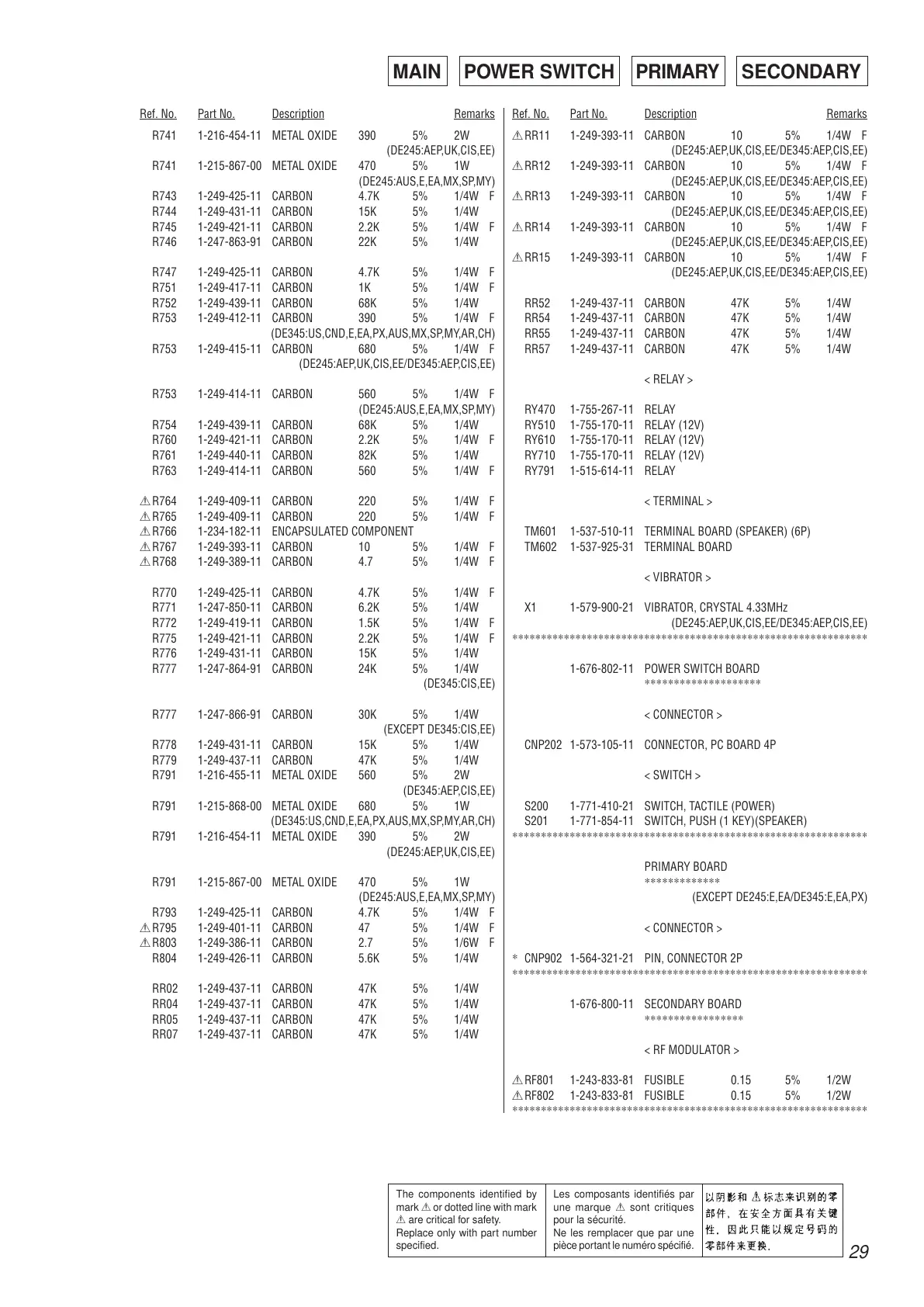

Sony STR-DE245 - Components and Transformers

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
29
R741 1-216-454-11 METAL OXIDE 390 5% 2W
(DE245:AEP,UK,CIS,EE)
R741 1-215-867-00 METAL OXIDE 470 5% 1W
(DE245:AUS,E,EA,MX,SP,MY)
R743 1-249-425-11 CARBON 4.7K 5% 1/4W F
R744 1-249-431-11 CARBON 15K 5% 1/4W
R745 1-249-421-11 CARBON 2.2K 5% 1/4W F
R746 1-247-863-91 CARBON 22K 5% 1/4W
R747 1-249-425-11 CARBON 4.7K 5% 1/4W F
R751 1-249-417-11 CARBON 1K 5% 1/4W F
R752 1-249-439-11 CARBON 68K 5% 1/4W
R753 1-249-412-11 CARBON 390 5% 1/4W F
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R753 1-249-415-11 CARBON 680 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R753 1-249-414-11 CARBON 560 5% 1/4W F
(DE245:AUS,E,EA,MX,SP,MY)
R754 1-249-439-11 CARBON 68K 5% 1/4W
R760 1-249-421-11 CARBON 2.2K 5% 1/4W F
R761 1-249-440-11 CARBON 82K 5% 1/4W
R763 1-249-414-11 CARBON 560 5% 1/4W F
0 R764 1-249-409-11 CARBON 220 5% 1/4W F
0 R765 1-249-409-11 CARBON 220 5% 1/4W F
0 R766 1-234-182-11 ENCAPSULATED COMPONENT
0 R767 1-249-393-11 CARBON 10 5% 1/4W F
0 R768 1-249-389-11 CARBON 4.7 5% 1/4W F
R770 1-249-425-11 CARBON 4.7K 5% 1/4W F
R771 1-247-850-11 CARBON 6.2K 5% 1/4W
R772 1-249-419-11 CARBON 1.5K 5% 1/4W F
R775 1-249-421-11 CARBON 2.2K 5% 1/4W F
R776 1-249-431-11 CARBON 15K 5% 1/4W
R777 1-247-864-91 CARBON 24K 5% 1/4W
(DE345:CIS,EE)
R777 1-247-866-91 CARBON 30K 5% 1/4W
(EXCEPT DE345:CIS,EE)
R778 1-249-431-11 CARBON 15K 5% 1/4W
R779 1-249-437-11 CARBON 47K 5% 1/4W
R791 1-216-455-11 METAL OXIDE 560 5% 2W
(DE345:AEP,CIS,EE)
R791 1-215-868-00 METAL OXIDE 680 5% 1W
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
R791 1-216-454-11 METAL OXIDE 390 5% 2W
(DE245:AEP,UK,CIS,EE)
R791 1-215-867-00 METAL OXIDE 470 5% 1W
(DE245:AUS,E,EA,MX,SP,MY)
R793 1-249-425-11 CARBON 4.7K 5% 1/4W F
0 R795 1-249-401-11 CARBON 47 5% 1/4W F
0 R803 1-249-386-11 CARBON 2.7 5% 1/6W F
R804 1-249-426-11 CARBON 5.6K 5% 1/4W
RR02 1-249-437-11 CARBON 47K 5% 1/4W
RR04 1-249-437-11 CARBON 47K 5% 1/4W
RR05 1-249-437-11 CARBON 47K 5% 1/4W
RR07 1-249-437-11 CARBON 47K 5% 1/4W
0 RR11 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0 RR12 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0 RR13 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0 RR14 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
0 RR15 1-249-393-11 CARBON 10 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
RR52 1-249-437-11 CARBON 47K 5% 1/4W
RR54 1-249-437-11 CARBON 47K 5% 1/4W
RR55 1-249-437-11 CARBON 47K 5% 1/4W
RR57 1-249-437-11 CARBON 47K 5% 1/4W
< RELAY >
RY470 1-755-267-11 RELAY
RY510 1-755-170-11 RELAY (12V)
RY610 1-755-170-11 RELAY (12V)
RY710 1-755-170-11 RELAY (12V)
RY791 1-515-614-11 RELAY
< TERMINAL >
TM601 1-537-510-11 TERMINAL BOARD (SPEAKER) (6P)
TM602 1-537-925-31 TERMINAL BOARD
< VIBRATOR >
X1 1-579-900-21 VIBRATOR, CRYSTAL 4.33MHz
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
**************************************************************
1-676-802-11 POWER SWITCH BOARD
********************
< CONNECTOR >
CNP202 1-573-105-11 CONNECTOR, PC BOARD 4P
< SWITCH >
S200 1-771-410-21 SWITCH, TACTILE (POWER)
S201 1-771-854-11 SWITCH, PUSH (1 KEY)(SPEAKER)
**************************************************************
PRIMARY BOARD
*************
(EXCEPT DE245:E,EA/DE345:E,EA,PX)
< CONNECTOR >
* CNP902 1-564-321-21 PIN, CONNECTOR 2P
**************************************************************
1-676-800-11 SECONDARY BOARD
*****************
< RF MODULATOR >
0 RF801 1-243-833-81 FUSIBLE 0.15 5% 1/2W
0 RF802 1-243-833-81 FUSIBLE 0.15 5% 1/2W
**************************************************************
