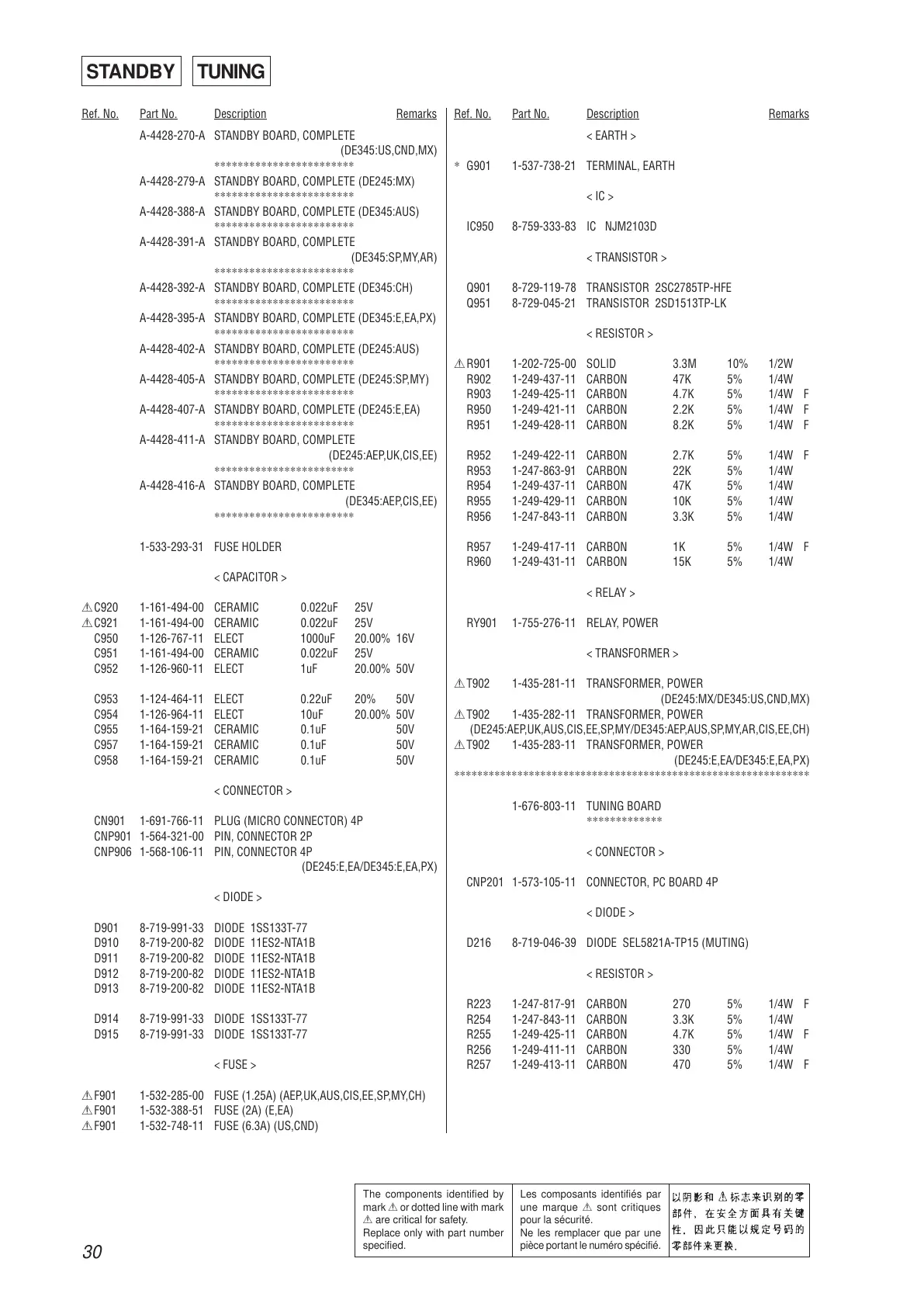

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
30
A-4428-270-A STANDBY BOARD, COMPLETE
(DE345:US,CND,MX)
************************
A-4428-279-A STANDBY BOARD, COMPLETE (DE245:MX)
************************
A-4428-388-A STANDBY BOARD, COMPLETE (DE345:AUS)
************************
A-4428-391-A STANDBY BOARD, COMPLETE
(DE345:SP,MY,AR)
************************
A-4428-392-A STANDBY BOARD, COMPLETE (DE345:CH)
************************
A-4428-395-A STANDBY BOARD, COMPLETE (DE345:E,EA,PX)
************************
A-4428-402-A STANDBY BOARD, COMPLETE (DE245:AUS)
************************
A-4428-405-A STANDBY BOARD, COMPLETE (DE245:SP,MY)
************************
A-4428-407-A STANDBY BOARD, COMPLETE (DE245:E,EA)
************************
A-4428-411-A STANDBY BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
************************
A-4428-416-A STANDBY BOARD, COMPLETE
(DE345:AEP,CIS,EE)
************************
1-533-293-31 FUSE HOLDER
< CAPACITOR >
0 C920 1-161-494-00 CERAMIC 0.022uF 25V
0 C921 1-161-494-00 CERAMIC 0.022uF 25V
C950 1-126-767-11 ELECT 1000uF 20.00% 16V
C951 1-161-494-00 CERAMIC 0.022uF 25V
C952 1-126-960-11 ELECT 1uF 20.00% 50V
C953 1-124-464-11 ELECT 0.22uF 20% 50V
C954 1-126-964-11 ELECT 10uF 20.00% 50V
C955 1-164-159-21 CERAMIC 0.1uF 50V
C957 1-164-159-21 CERAMIC 0.1uF 50V
C958 1-164-159-21 CERAMIC 0.1uF 50V
< CONNECTOR >
CN901 1-691-766-11 PLUG (MICRO CONNECTOR) 4P
CNP901 1-564-321-00 PIN, CONNECTOR 2P
CNP906 1-568-106-11 PIN, CONNECTOR 4P
(DE245:E,EA/DE345:E,EA,PX)
< DIODE >
D901 8-719-991-33 DIODE 1SS133T-77
D910 8-719-200-82 DIODE 11ES2-NTA1B
D911 8-719-200-82 DIODE 11ES2-NTA1B
D912 8-719-200-82 DIODE 11ES2-NTA1B
D913 8-719-200-82 DIODE 11ES2-NTA1B
D914 8-719-991-33 DIODE 1SS133T-77
D915 8-719-991-33 DIODE 1SS133T-77
< FUSE >
0 F901 1-532-285-00 FUSE (1.25A) (AEP,UK,AUS,CIS,EE,SP,MY,CH)
0 F901 1-532-388-51 FUSE (2A) (E,EA)
0 F901 1-532-748-11 FUSE (6.3A) (US,CND)
< EARTH >
* G901 1-537-738-21 TERMINAL, EARTH
< IC >
IC950 8-759-333-83 IC NJM2103D
< TRANSISTOR >
Q901 8-729-119-78 TRANSISTOR 2SC2785TP-HFE
Q951 8-729-045-21 TRANSISTOR 2SD1513TP-LK
< RESISTOR >
0 R901 1-202-725-00 SOLID 3.3M 10% 1/2W
R902 1-249-437-11 CARBON 47K 5% 1/4W
R903 1-249-425-11 CARBON 4.7K 5% 1/4W F
R950 1-249-421-11 CARBON 2.2K 5% 1/4W F
R951 1-249-428-11 CARBON 8.2K 5% 1/4W F
R952 1-249-422-11 CARBON 2.7K 5% 1/4W F
R953 1-247-863-91 CARBON 22K 5% 1/4W
R954 1-249-437-11 CARBON 47K 5% 1/4W
R955 1-249-429-11 CARBON 10K 5% 1/4W
R956 1-247-843-11 CARBON 3.3K 5% 1/4W
R957 1-249-417-11 CARBON 1K 5% 1/4W F
R960 1-249-431-11 CARBON 15K 5% 1/4W
< RELAY >
RY901 1-755-276-11 RELAY, POWER
< TRANSFORMER >
0 T902 1-435-281-11 TRANSFORMER, POWER
(DE245:MX/DE345:US,CND,MX)
0 T902 1-435-282-11 TRANSFORMER, POWER
(DE245:AEP,UK,AUS,CIS,EE,SP,MY/DE345:AEP,AUS,SP,MY,AR,CIS,EE,CH)
0 T902 1-435-283-11 TRANSFORMER, POWER
(DE245:E,EA/DE345:E,EA,PX)
**************************************************************
1-676-803-11 TUNING BOARD
*************
< CONNECTOR >
CNP201 1-573-105-11 CONNECTOR, PC BOARD 4P
< DIODE >
D216 8-719-046-39 DIODE SEL5821A-TP15 (MUTING)
< RESISTOR >
R223 1-247-817-91 CARBON 270 5% 1/4W F
R254 1-247-843-11 CARBON 3.3K 5% 1/4W
R255 1-249-425-11 CARBON 4.7K 5% 1/4W F
R256 1-249-411-11 CARBON 330 5% 1/4W
R257 1-249-413-11 CARBON 470 5% 1/4W F
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
STANDBY TUNING
To Next Page
