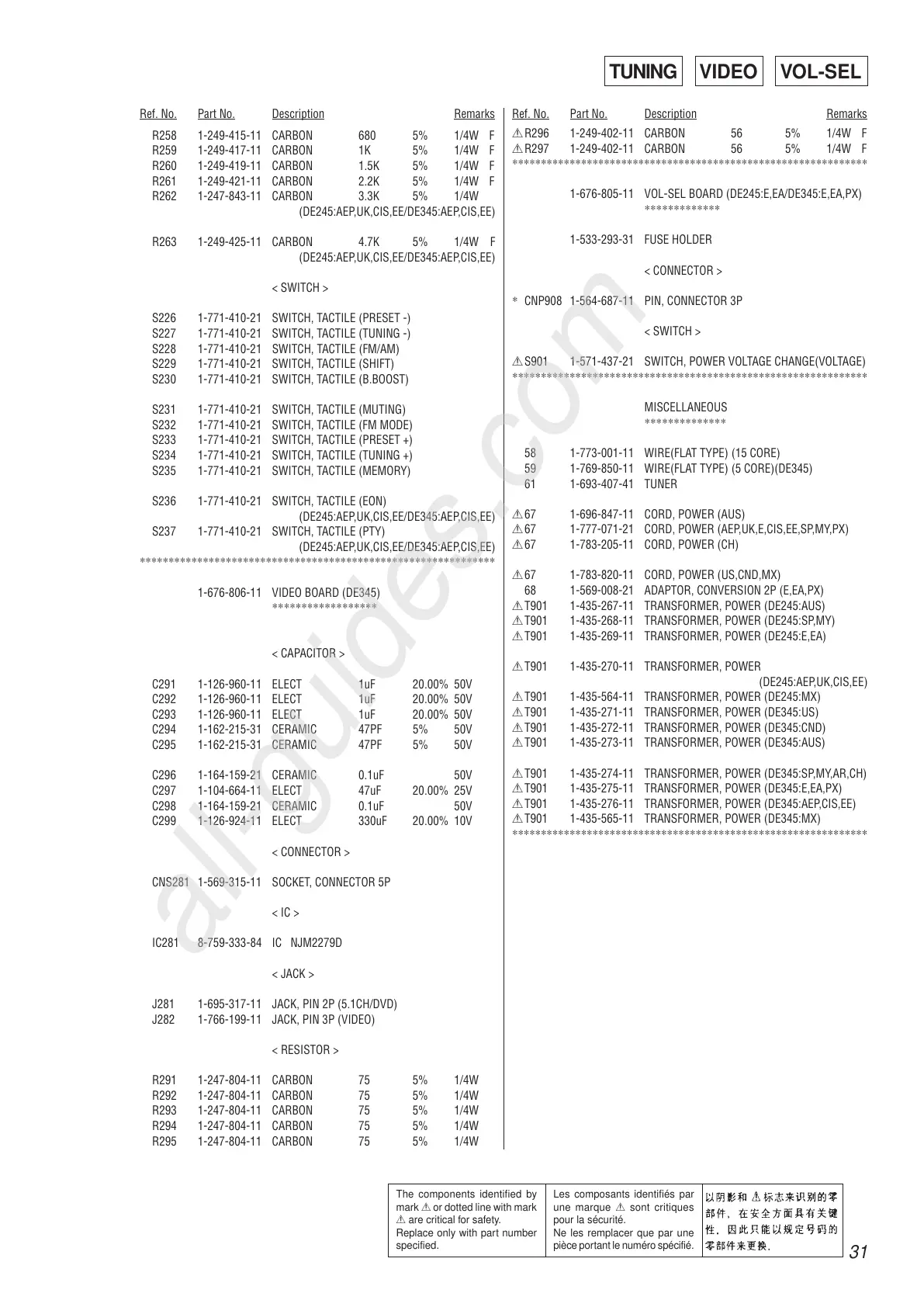

Sony STR-DE245 - Electrical Parts List; Resistors, Switches, Capacitors, ICs, Connectors, Jacks

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
31
R258 1-249-415-11 CARBON 680 5% 1/4W F
R259 1-249-417-11 CARBON 1K 5% 1/4W F
R260 1-249-419-11 CARBON 1.5K 5% 1/4W F
R261 1-249-421-11 CARBON 2.2K 5% 1/4W F
R262 1-247-843-11 CARBON 3.3K 5% 1/4W
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
R263 1-249-425-11 CARBON 4.7K 5% 1/4W F
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
< SWITCH >
S226 1-771-410-21 SWITCH, TACTILE (PRESET -)
S227 1-771-410-21 SWITCH, TACTILE (TUNING -)
S228 1-771-410-21 SWITCH, TACTILE (FM/AM)
S229 1-771-410-21 SWITCH, TACTILE (SHIFT)
S230 1-771-410-21 SWITCH, TACTILE (B.BOOST)
S231 1-771-410-21 SWITCH, TACTILE (MUTING)
S232 1-771-410-21 SWITCH, TACTILE (FM MODE)
S233 1-771-410-21 SWITCH, TACTILE (PRESET +)
S234 1-771-410-21 SWITCH, TACTILE (TUNING +)
S235 1-771-410-21 SWITCH, TACTILE (MEMORY)
S236 1-771-410-21 SWITCH, TACTILE (EON)
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
S237 1-771-410-21 SWITCH, TACTILE (PTY)
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
**************************************************************
1-676-806-11 VIDEO BOARD (DE345)
******************
< CAPACITOR >
C291 1-126-960-11 ELECT 1uF 20.00% 50V
C292 1-126-960-11 ELECT 1uF 20.00% 50V
C293 1-126-960-11 ELECT 1uF 20.00% 50V
C294 1-162-215-31 CERAMIC 47PF 5% 50V
C295 1-162-215-31 CERAMIC 47PF 5% 50V
C296 1-164-159-21 CERAMIC 0.1uF 50V
C297 1-104-664-11 ELECT 47uF 20.00% 25V
C298 1-164-159-21 CERAMIC 0.1uF 50V
C299 1-126-924-11 ELECT 330uF 20.00% 10V
< CONNECTOR >
CNS281 1-569-315-11 SOCKET, CONNECTOR 5P
< IC >
IC281 8-759-333-84 IC NJM2279D
< JACK >
J281 1-695-317-11 JACK, PIN 2P (5.1CH/DVD)
J282 1-766-199-11 JACK, PIN 3P (VIDEO)
< RESISTOR >
R291 1-247-804-11 CARBON 75 5% 1/4W
R292 1-247-804-11 CARBON 75 5% 1/4W
R293 1-247-804-11 CARBON 75 5% 1/4W
R294 1-247-804-11 CARBON 75 5% 1/4W
R295 1-247-804-11 CARBON 75 5% 1/4W
0 R296 1-249-402-11 CARBON 56 5% 1/4W F
0 R297 1-249-402-11 CARBON 56 5% 1/4W F
**************************************************************
1-676-805-11 VOL-SEL BOARD (DE245:E,EA/DE345:E,EA,PX)
*************
1-533-293-31 FUSE HOLDER
< CONNECTOR >
* CNP908 1-564-687-11 PIN, CONNECTOR 3P
< SWITCH >
0 S901 1-571-437-21 SWITCH, POWER VOLTAGE CHANGE(VOLTAGE)
**************************************************************
MISCELLANEOUS
**************
58 1-773-001-11 WIRE(FLAT TYPE) (15 CORE)
59 1-769-850-11 WIRE(FLAT TYPE) (5 CORE)(DE345)
61 1-693-407-41 TUNER
0 67 1-696-847-11 CORD, POWER (AUS)
0 67 1-777-071-21 CORD, POWER (AEP,UK,E,CIS,EE,SP,MY,PX)
0 67 1-783-205-11 CORD, POWER (CH)
0 67 1-783-820-11 CORD, POWER (US,CND,MX)
68 1-569-008-21 ADAPTOR, CONVERSION 2P (E,EA,PX)
0 T901 1-435-267-11 TRANSFORMER, POWER (DE245:AUS)
0 T901 1-435-268-11 TRANSFORMER, POWER (DE245:SP,MY)
0 T901 1-435-269-11 TRANSFORMER, POWER (DE245:E,EA)
0 T901 1-435-270-11 TRANSFORMER, POWER
(DE245:AEP,UK,CIS,EE)
0 T901 1-435-564-11 TRANSFORMER, POWER (DE245:MX)
0 T901 1-435-271-11 TRANSFORMER, POWER (DE345:US)
0 T901 1-435-272-11 TRANSFORMER, POWER (DE345:CND)
0 T901 1-435-273-11 TRANSFORMER, POWER (DE345:AUS)
0 T901 1-435-274-11 TRANSFORMER, POWER (DE345:SP,MY,AR,CH)
0 T901 1-435-275-11 TRANSFORMER, POWER (DE345:E,EA,PX)
0 T901 1-435-276-11 TRANSFORMER, POWER (DE345:AEP,CIS,EE)
0 T901 1-435-565-11 TRANSFORMER, POWER (DE345:MX)
**************************************************************
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
TUNING VIDEO VOL-SEL
