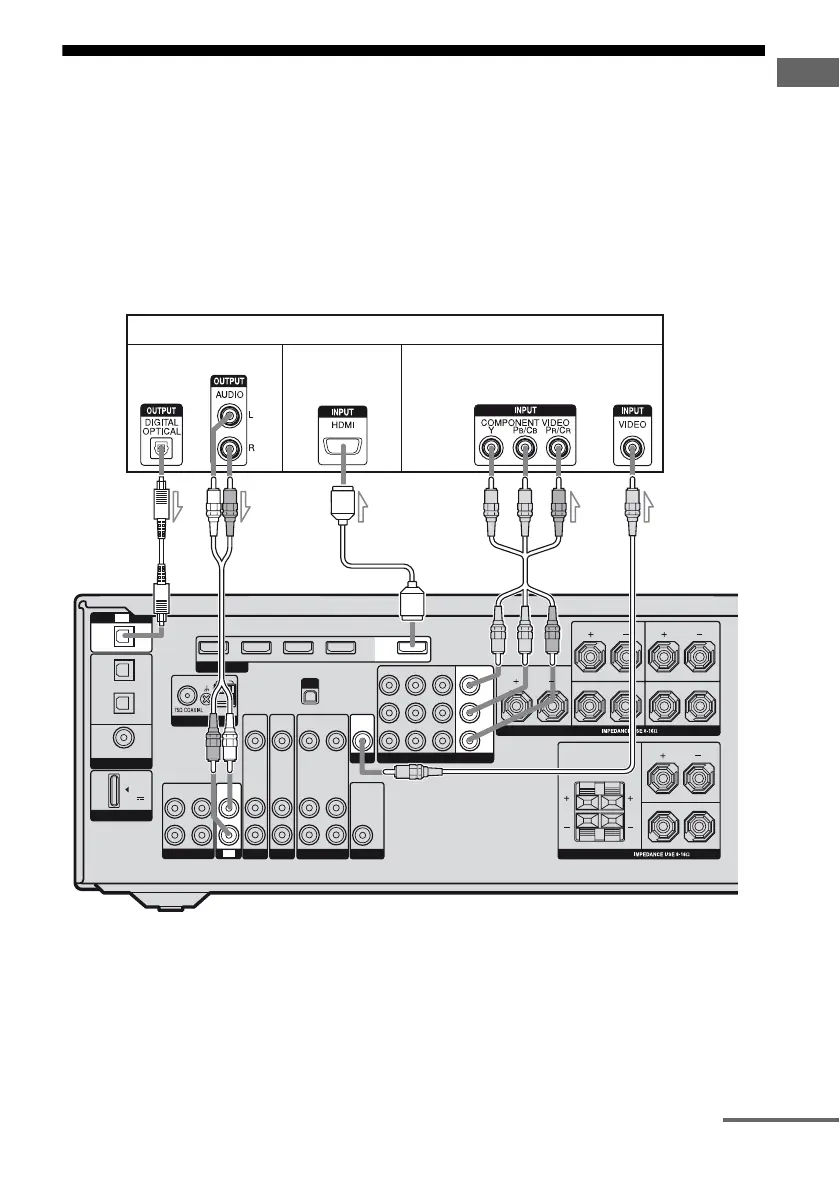

Sony STR-DG820 - 3: Connecting the TV; TV Connection Diagram

19
US
Getting Started
3: Connecting the TV
You can watch the selected input image when
you connect the HDMI OUT or MONITOR
OUT jack to a TV.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Before connecting cords, be sure to disconnect
the AC power cord.
L
R
DIGITAL
DMPORT
(ASSIGNABLE)
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
SAT
IN
DC5V
0.7A MAX
AM
FM
XM
ANTENNA
SAT IN DVD IN BD IN
VIDEO 1 IN
HDMI
AUDIO
OUT
SUBWOOFER
SPEAKERS
SPEAKERS
SURROUND BACK
FRONT AFRONT B
L
R
SURROUND
L
R
L
L
R
R
COMPONENT VIDEO
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
AUDIO
OUT
VIDEO
OUT
VIDEO 1
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
DVD
OUT IN
SA-CD/CD/CD-R
TV
OPTICAL
IN
TV
OUT
CENTER
P B /
C
B
P R /
C
R
MONITOR
VIDEO
OUT
IN
TV
BA
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
D Component video cord (not supplied)
E Video cord (not supplied)
Audio signals Video signals
D
Audio/Video
signals
CE
continued
