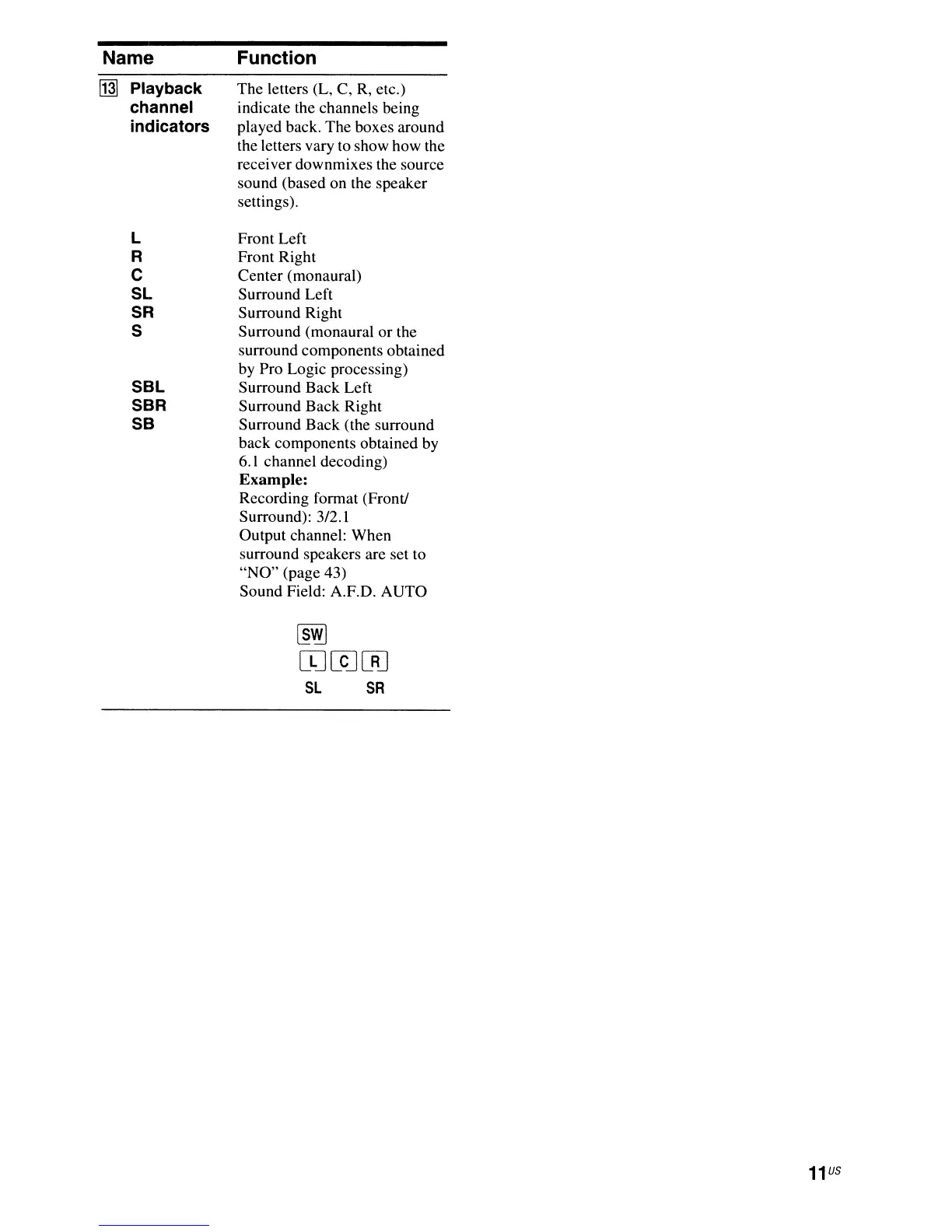

Name
~
Playback
channel
indicators
l
R
C
Sl
SR
S
SBl
SBR
SB
Function
The letters (L, C,
R,
etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound (based on the speaker
settings).
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by
Pro Logic processing)
Surround Back Left
Surround Back Right
Surround Back (the surround
back components obtained by
6.1
channel decoding)
Example:
Recording format (Front!
Surround): 3/2.1
Output channel: When
surround speakers are set to
"NO"
(page 43)
Sound Field: A.F.D. AUTO
~
[LJ[CJ[RJ
SL
SA
