Connecting
components
with·
.
~
anal~1i
vide~
and;~udiOJack<J

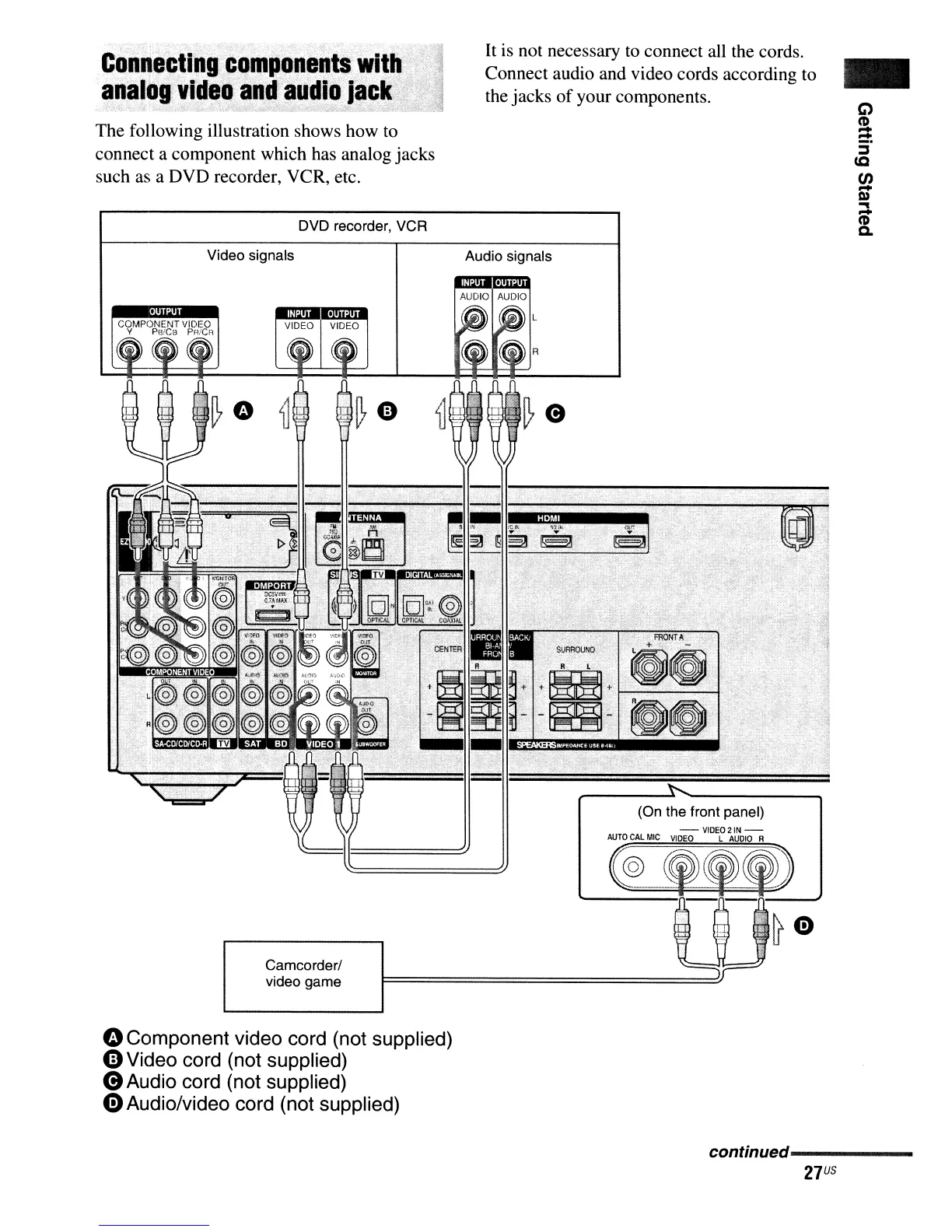

The following illustration shows how to
connect a component which has analog jacks
such as a DVD recorder, VCR, etc.
DVD recorder, VCR
Video signals
It
is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks
of
your components.
Audio signals
-
COMPONENT VIDEO VIDEO VIDEO
Y PaiCe
PH/Cn
Camcorder/
video game
..
I •
..
AUDIO AUDIO
oComponent video cord (not supplied)
0Video
cord (not supplied)
8Audio
cord (not supplied)
oAudio/video cord (not supplied)
continued------
27
US
