29
GB
Connections

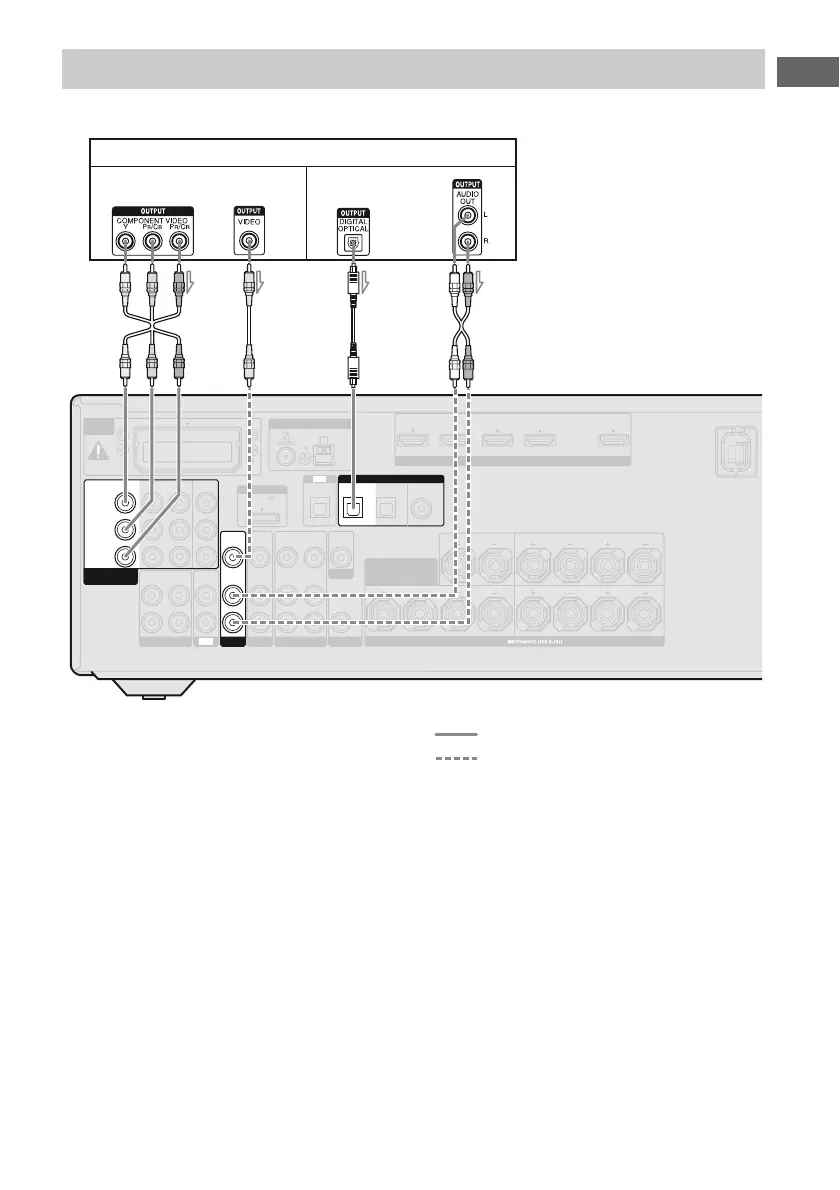

The following illustration shows how to connect a satellite tuner or cable TV tuner.
A Component video cord (not supplied)
B Video cord (not supplied)
C Optical digital cord (not supplied)
D Audio cord (not supplied)
Recommended connection
Alternative connection
Note
The initial setting of the COMPONENT VIDEO IN
3 jacks are satellite tuner or cable TV tuner. If you
want to connect your satellite tuner or cable TV
tuner to the COMPONENT VIDEO IN 1 or IN 2
jacks, set “V. ASSIGN” in the VIDEO menu (page
69).
Connecting a satellite tuner, cable TV tuner
AM
EZW-T100
ANTENNA
DMPORT
IN 4 IN 3 IN 2 IN 1 TV OUT
ARC
DC5V
0.7A MAX
IN
OPTICAL
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
VIDEO
OUT
L
R
SA-CD
/
CD
/
CD-R
SUBWOOFER
AUDIO
IN
VIDEO
IN
BD
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
VIDEO 1
MONITOR
HDMI
ASSIGNABLE (INPUT ONLY)
TV
TV
LR LR
LR
SPEAKERS
CENTER
SURROUND
FRONT A
SURROUND BACK/
FRONT HIGH/
BI-AMP/ FRONT B
AUDIO
IN
VIDEO
IN
SAT
/
CATV
OPTICAL
SAT
/
CATV
IN
BD
IN
DVD
IN
COAXIAL
DIGITAL
(ASSIGNABLE)
IN 2 IN 1
MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
IN 3
BA
Audio signalsVideo signals
C
Satellite tuner, Cable TV tuner
D
To Next Page
