STR-DN610
4-167-824-13(1)

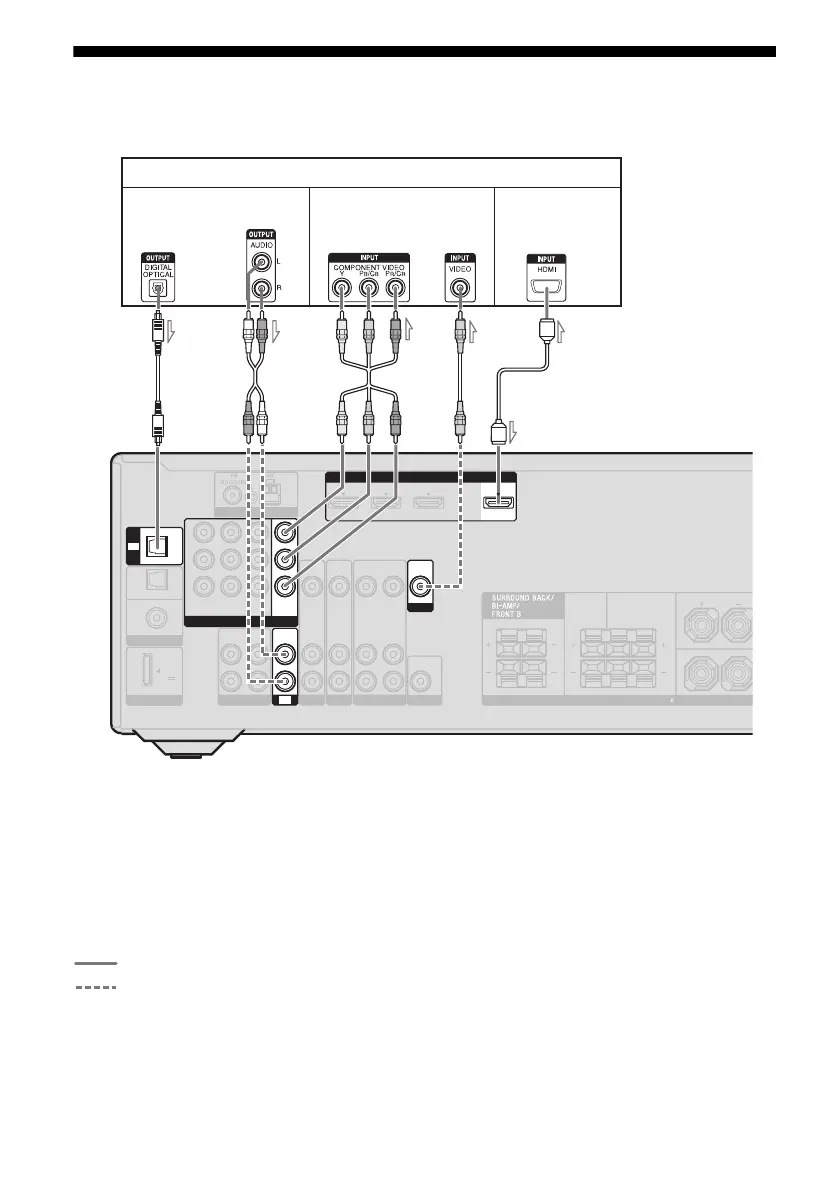

3: Connecting the TV
Before connecting cords, be sure to disconnect the AC power cord (mains lead).
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Component video cord (not supplied)
D Video cord (not supplied)
E HDMI cable (not supplied)
We recommend that you use a Sony HDMI
cable.
Recommended connection
Alternative connection
a)
To enjoy TV multi channel surround sound
broadcasting from the speakers connected to the
receiver, connect either A or E. Be sure to turn
off the TV’s volume or activate the TV’s muting
function.
b)
If your TV is compatible with the Audio Return
Channel (ARC) function, the TV sound will be
output from the speakers connected to the receiver
via HDMI TV OUT connection. In this case, set
“ARC” to “ARC ON” in HDMI menu (page 54).
LR
LR
R
L
FRONT A
CENTER SURROUND
ANTENNA
SAT/
CATV
IN
OPTICAL
DVD
IN
DIGITAL
COAXIAL
(ASSIGNABLE)
DMPORT
DC5V
0.7A MAX
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
AUDIO
IN
AUDIO
OUT
AUDIO
IN
BD
SAT/CATV
AUDIO
IN
SA-CD/CD/CD-R
R
VIDEO 1
L
AUDIO
IN
AUDIO
OUT
AUDIO
OUT
SUBWOOFER
SPEAKERS
IMPEDANCE USE 8-16
Y
IN 3 IN 2 IN 1
AUDIO
IN
TV
MONITOR
VIDEO
OUT
TV
OPTICAL
1 NI2 NI3 NI
P
B
/
C
B
P
R
/
C
R
MONITOR
OUT
HDMI
ASSIGNABLE (INPUT ONLY)
TV OUT
ARC
COMPONENT VIDEO
ASSIGNABLE (INPUT ONLY)
IN
ARC
TV
DC
Audio/Video
signals
Video signals
E
a)
Audio signals
BA
a)
b)
