Sony STR-DN840 - Rear Panel

13
US
A DIGITAL INPUT/OUTPUT section
B TUNER section
C NETWORK section
D SPEAKERS section (page 22)
E AUDIO INPUT/OUTPUT section
F VIDEO INPUT/OUTPUT section
(page 24, 28)
* You must connect the HDMI TV OUT or
MONITOR OUT jack to your TV to watch the
selected input image (page 24).

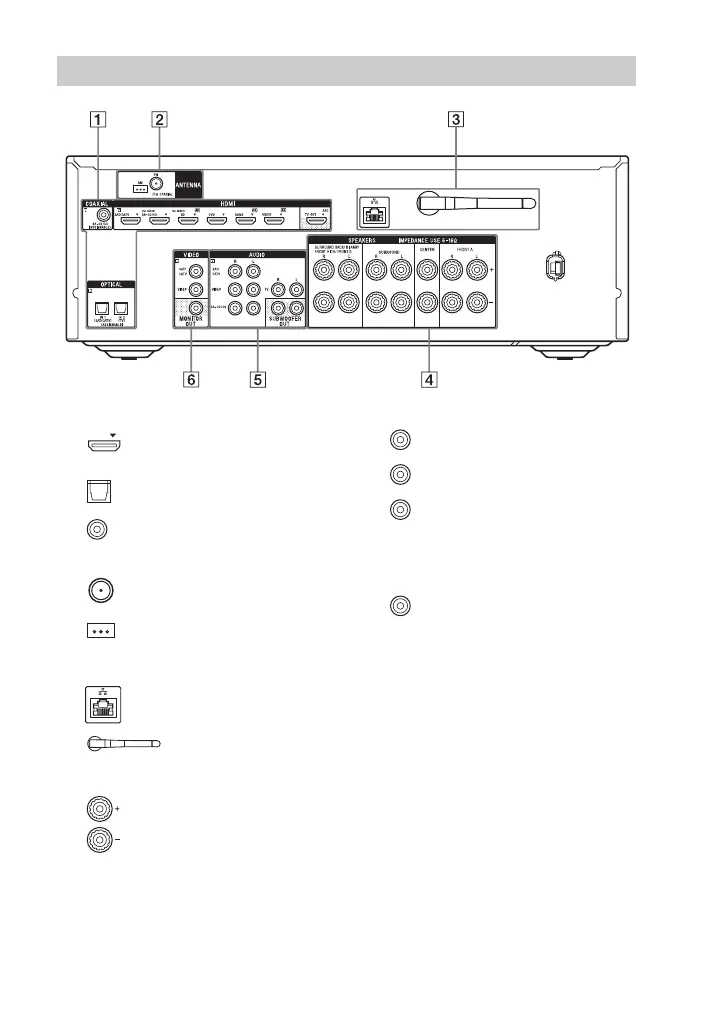

Rear panel
HDMI IN/OUT* jacks (page
24, 27, 29)
OPTICAL IN jacks (page 24,
28)
COAXIAL IN jack (page 29)
FM ANTENNA jack
(page 30)
AM ANTENNA terminals
(page 30)
LAN port (page 32)
Wireless LAN antenna
(page 32)
AUDIO IN jacks
(page 24, 28, 29)
SUBWOOFER OUT
jacks (page 22)
VIDEO IN/OUT*
jacks
White (L)
Red (R)
Black
Yellow
