STR-K1500
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
SURROUND FRONT
R
R
L
L
+
–
+
–
SURROUND BACK
CENTER
+
–
SPEAKERS

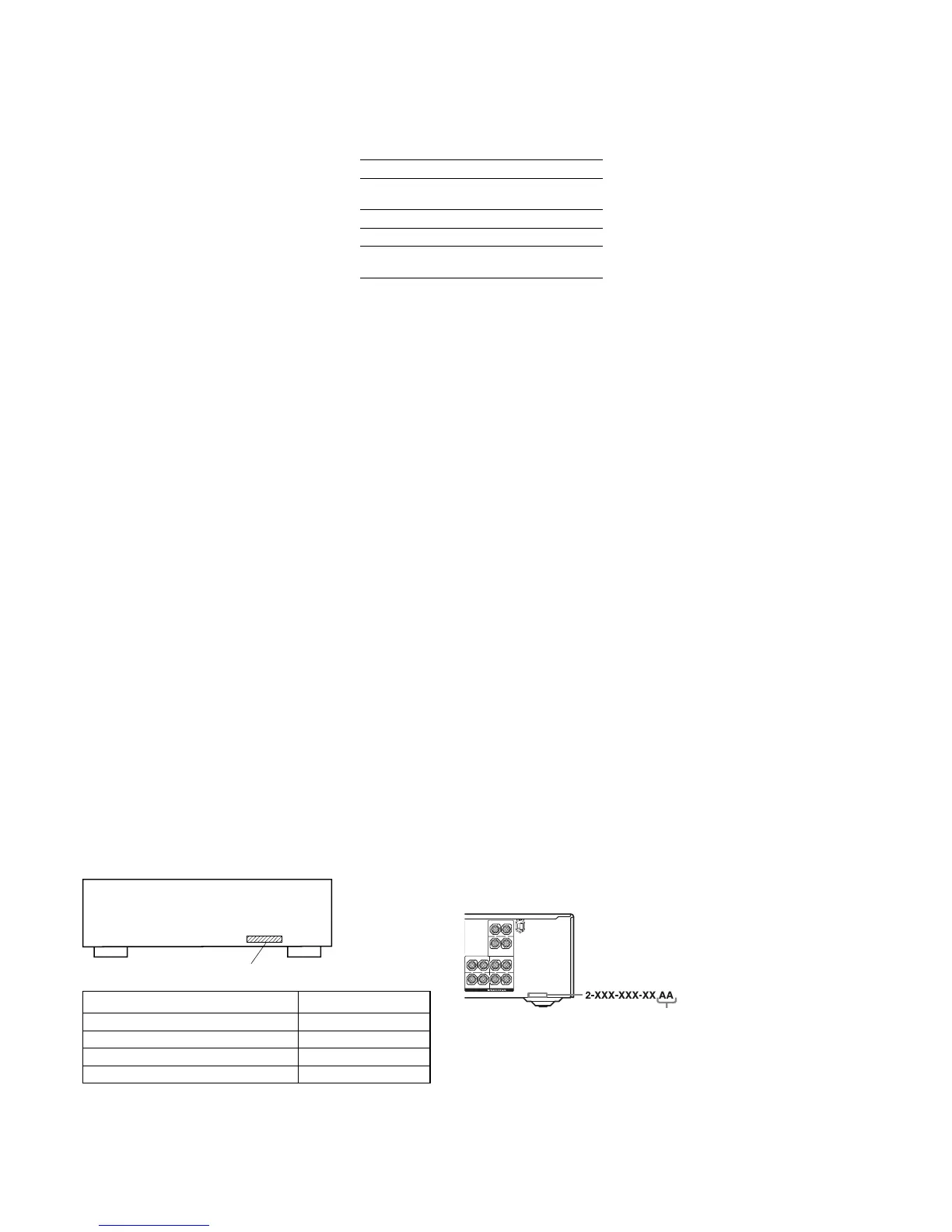

Area code
MODEL IDENTIFICATION
– Rear Panel –
Model Part No.
E51 model 2-663-099-2[]
SP, SP6 models 2-663-099-3[]
AUS model 2-663-099-4[]
MX model 2-663-099-5[]
Parts No.
•Abbreviation
AUS: Australian model
E51 : Chilean and Peruvian models
MX : Mexican model
SP : Singapore model
SP6 : Singapore and Malaysia models
Models of area code E51
With 10-kHz tuning scale:
530 – 1,610 kHz
4)
With 9-kHz tuning scale:
531 – 1,602 kHz
4)
Models of area code MX
With 10-kHz tuning scale:
530 – 1,610 kHz
Antenna Loop antenna
Intermediate frequency
450 kHz
4) You can change the AM tuning scale to 9 kHz or 10
kHz. After tuning in any AM station, turn off the
receiver. While holding down TUNING MODE,
press ?/1. All preset stations will be erased when
you change the tuning scale. To reset the scale to 10
kHz (or 9 kHz), repeat the procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B
/C
B
/B-Y: 0.7 Vp-p,
75 ohms
P
R
/C
R
/R-Y: 0.7 Vp-p,
75 ohms
80 MHz HD Pass Through
General
Power requirements
Power consumption 200 W
Power consumption (during standby mode)
0.2 W
Dimensions (w/h/d) (Approx.)
430 157.5 316 mm
including projecting parts
and controls
Mass (Approx.) 8.0 kg
Area code Power requirements
SP, SP6 230 – 240 V AC,
50/60 Hz
AUS 240 V AC, 50 Hz
MX 127 V AC, 60 Hz
E51 120/220/240 V AC,
50/60 Hz
× ×
AM tuner section
Tuning range
Models of area code SP, SP6, A
US
With 9-kHz tuning scale:
531 – 1,602 kHz
Design and specifications are subject to
change without notice.
Ver. 1.1
