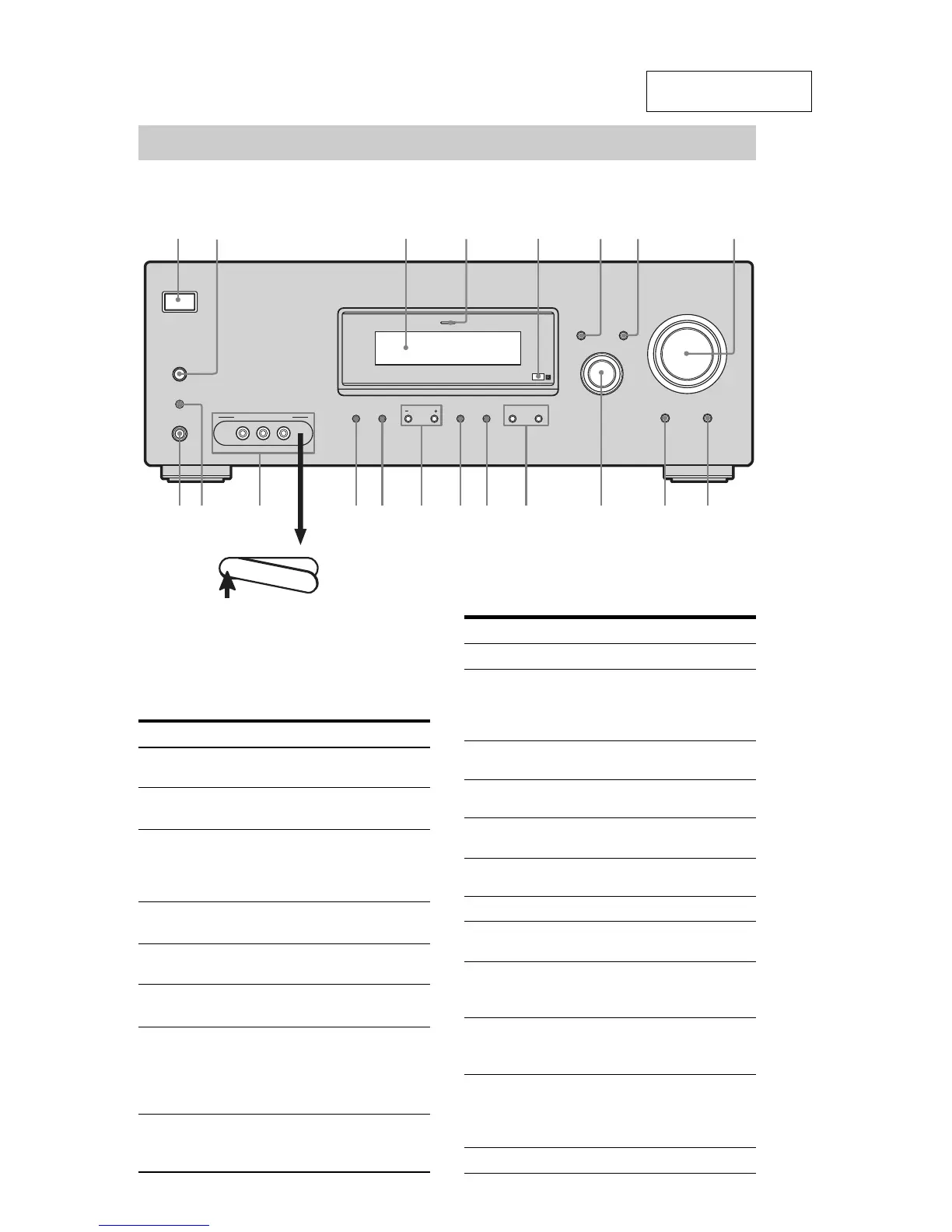

Front panel
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Receiver
?/1
AUTO CAL MIC
SPEAKERS
(ON/OFF)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
MULTI CH IN MUTING
DISPLAY
MULTI CHANNEL DECODING
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
1 3 42 6 875
9q;
w; qaqsqkql qdqfqgqhqj
PUSH
Name Function
A ?/1 Press to turn the receiver
on or off.
B SPEAKERS
(ON/OFF)
Press to turn the speakers
and sub woofers on or off.
C Display The current status of the
selected component or a
list of selectable items
appears here.
D MULTI CHANNEL
DECODING lamp
Lights up when multi
channel audio is decoded.
E Remote sensor Receives signals from
remote commander.
Name Function
F DISPLAY Press to select information
displayed on the display.
G INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks.
H MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time.
I MUTING Press to mute the sound.
J MULTI CH IN Press to select the audio
directly from the
components connected to
the MULTI CH IN jacks.
K INPUT
SELECTOR
Turn to select the input
source to playback.
L MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC).
M A.F.D. Press to select A.F.D.
mode.
N 2CH Press to select 2CH
STEREO mode.
O TUNING +/– Press to scan a station.
P TUNING MODE Press to select the tuning
mode.
Q MEMORY/ENTER Press to store a station or
enter the selection when
selecting the settings.
R VIDEO 3 IN/
PORTABLE AV IN
jacks
To connect a camcorder or
video game.
S AUTO CAL MIC
jack
Connects to the supplied
ECM-AC2 optimizer
microphone for the Auto
Calibration function.
T PHONES jack Connects to a headphone.
