Sony STR-K740P - Printed Wiring Boards

1212
STR-K740P/K840P
• See page 8 for Circuit Boards Location.

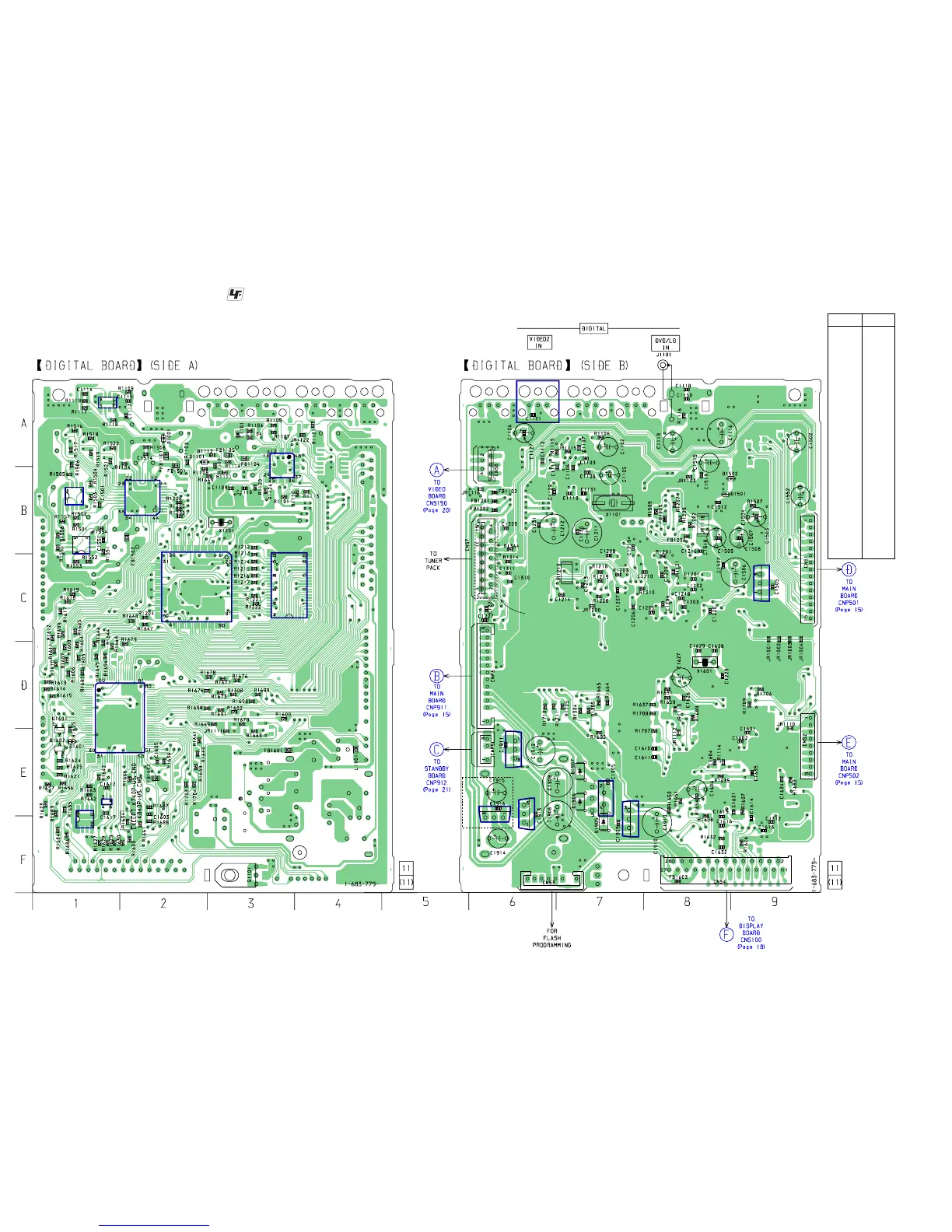

3-3. Printed Wiring Board – DIGITAL Section –
IC1102
IC1502
IC1501
IC1101
IC1552
IC1201
IC1202
IC1601
IC1604
IC1602
IC1105
IC1503
IC1904
IC1902
IC1905
IC1901
IC1903
11P:EXCEPT K740P:AEP,UK/K840P:AEP,UK
15P:K740P:AEP,UK/K840P:AEP,UK
K740P:AEP,UK/K840P:AEP,UK
• : Uses unleaded solder.
Ref. No. Location
D1001 A-2
D1101 A-3
D1501 B-8
D1502 B-8
D1601 E-1
D1905 F-7
D1906 E-7
D1907 E-7
IC1101 A-3
IC1102 A-1
IC1105 A-6
IC1201 C-2
IC1202 C-3
IC1501 B-2
IC1502 B-1
IC1503 C-9
IC1552 B-1
IC1601 D-1
IC1602 E-1
IC1604 F-1
IC1901 E-7
IC1902 E-6
IC1903 F-7
IC1904 E-6
Q1601 D-1
Q1602 E-1
• Semiconductor
Location
