STR-K740P/K840P
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
– Continued from page28 –
61 3-701-748-00 CLAMP
62 A-4727-815-A VIDEO BOARD, COMPLETE
(K740P:US,CND/K840P:US,CND,MX)
62 A-4727-968-A VIDEO BOARD, COMPLETE
(K740P:AEP,UK,E,MY,SP/K840P:AEP,UK,E,MY,SP,AR)
63 A-4727-816-A STANDBY BOARD, COMPLETE
(K740P:US,CND,/K840P:US,CND)
63 A-4727-969-A STANDBY BOARD, COMPLETE
(K840P:MY,SP,AR)
63 A-4727-972-A STANDBY BOARD, COMPLETE
(K740P:E/K840P:E)
63 A-4727-979-A STANDBY BOARD, COMPLETE
(K740P:AEP,UK/K840P:AEP,UK)
63 A-4676-982-A STANDBY BOARD, COMPLETE (K840P:MX)
0 64 1-777-071-21 CORD, POWER
(K740P:AEP,UK,E,MY,SP/K840P:AEP,UK,E,MY,SP)
0 64 1-783-820-11 CORD, POWER
(K740P:US,CND/K840P:US,CND,MX)
0 64 1-783-941-12 CORD, POWER (K840P:AR)
* 65 3-703-244-00 BUSHING (2104), CORD
66 1-683-761-11 AC SELECT BOARD (K740P:E/K840P:E)
67 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
(K740P/K840P:US,CND,AEP,UK,E,MY,SP)
68 4-956-370-12 BAND, PLUG FIXED (K740P:UK/K840P:UK)
0 T901 1-437-629-11 POWER TRANSFORMER (K840P:AR)
0 T901 1-435-901-11 POWER, TRANSFORMER (K840P:E)
0 T901 1-435-903-11 TRANSFORMER, POWER
(K840P:AEP,UK,MY,SP)
0 T901 1-435-905-11 TRANSFORMER, POWER (K840P:CND)
0 T901 1-435-906-11 TRANSFORMER, POWER (K840P:US,MX)
0 T901 1-437-639-11 POWER TRANSFORMER (K740P:US)
0 T901 1-437-641-11 POWER TRANSFORMER (K740P:CND)
0 T901 1-437-642-11 POWER TRANSFORMER (K740P:AEP,UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
#3 7-685-880-09 SCREW +BVTT 4X6 (S)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

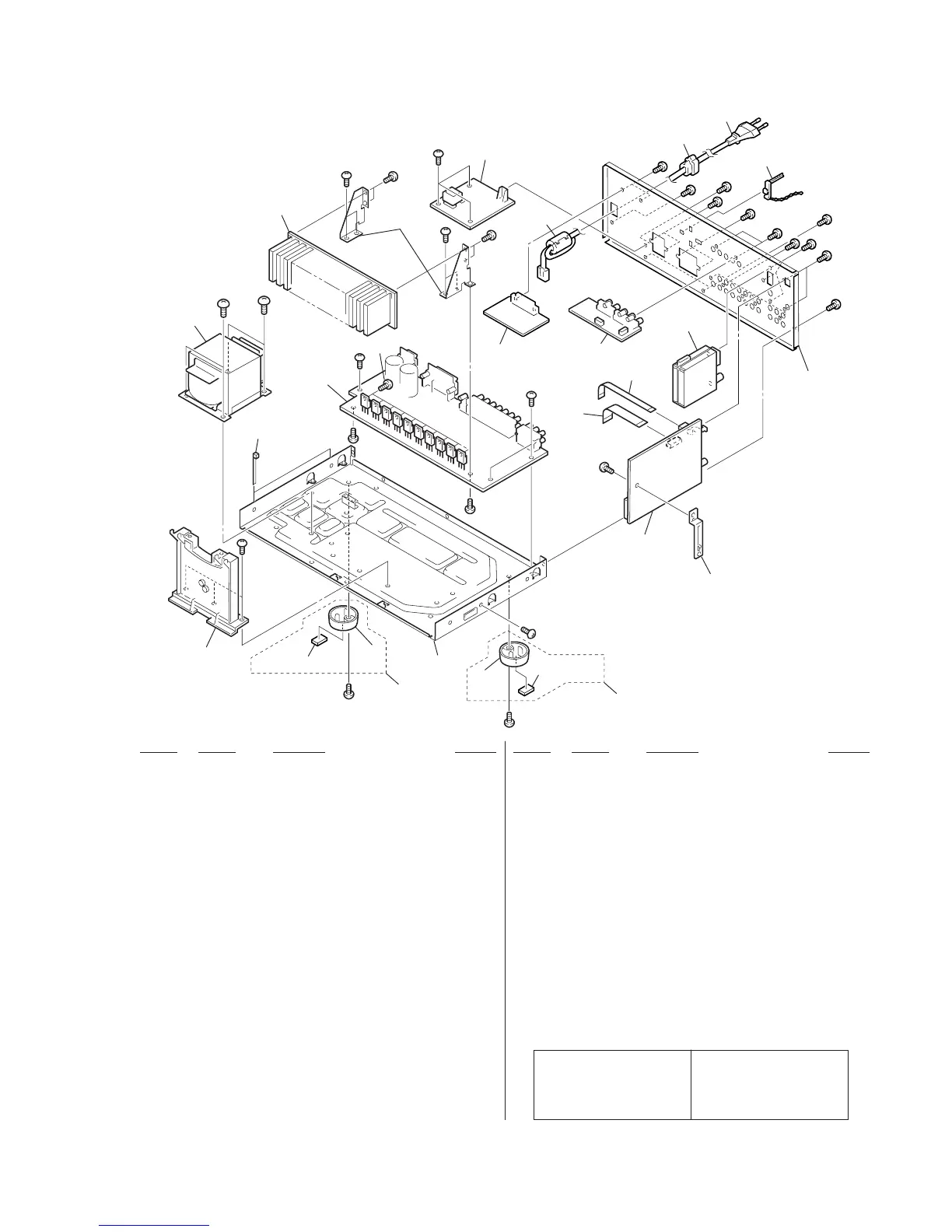

4-3. Chassis Section-2
56
51
51
52
52
53
54
57
58
60
66
63
62
#1
#1
#1
#1
#1
#1
#1
#1
#3
#3
#2
#2
#2
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
T901
59
56
61
65
67
55
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
64
68
To Next Page
