Sony STR-K740P - Exploded Views; Front Panel Section

SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
•
Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of this parts list.
• Abbreviation
CND : Canadian model
MY : Malaysia model
SP : Singapore model
MX : Mexican model
AR : Argentine model
27
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
STR-K740P/K840P
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

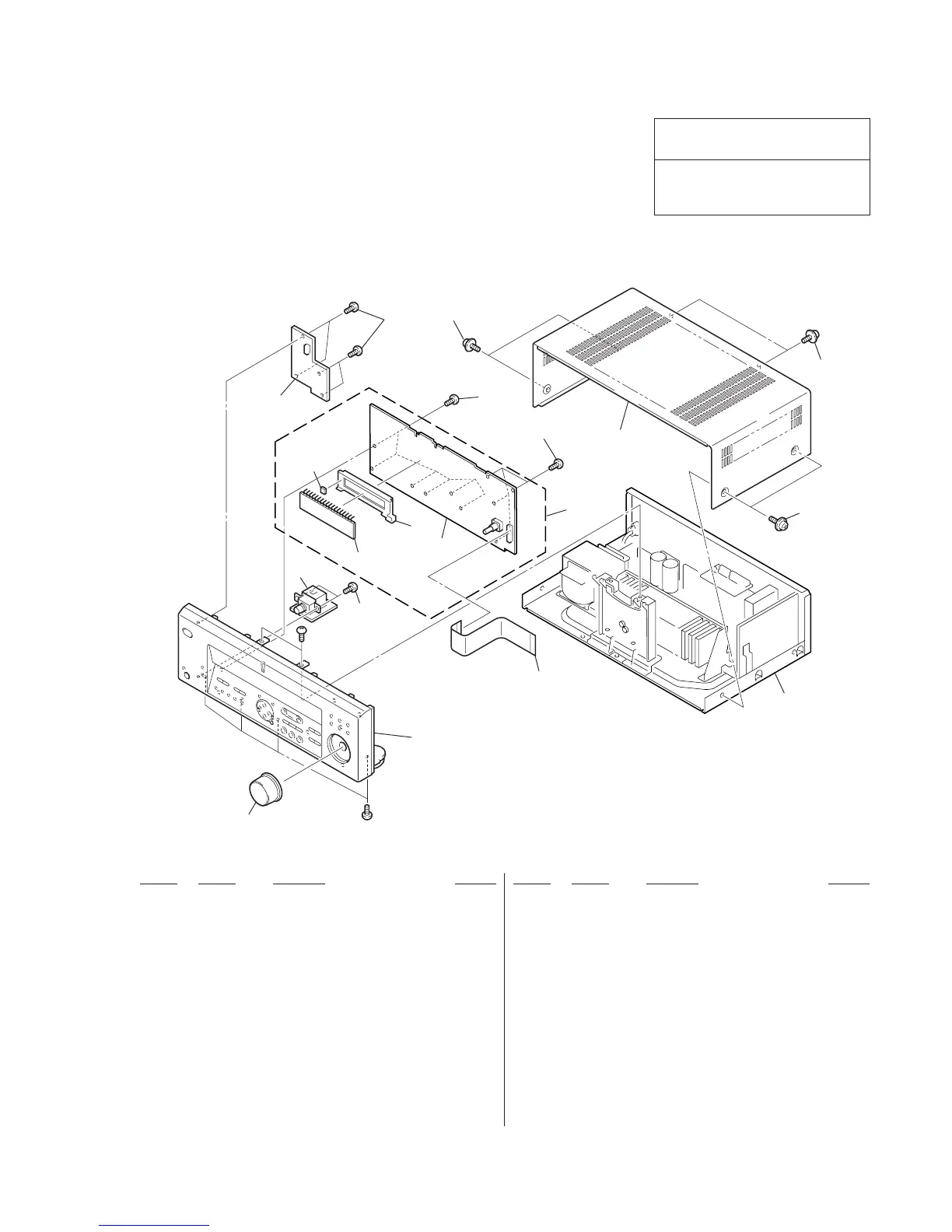

4-1. Front Panel Section
2
4
1
5
5
6
6
6
5
5
9
10
11
3
8
#1
#1
7
FL101
chassis section
not supplied
1 X-4954-429-1 FRONT PANEL ASSY (SILVER) (K740P:US)
1 X-4954-430-1 FRONT PANEL ASSY (SILVER) (K740P:CND)
1 X-4954-431-1 FRONT PANEL ASSY (SILVER) (K740P:E,MY,SP)
1 X-4954-432-1 FRONT PANEL ASSY (SILVER) (K740P:AEP,UK)
1 X-4954-433-1 FRONT PANEL ASSY (SILVER) (K840P:US)
1 X-4954-434-1 FRONT PANEL ASSY (SILVER) (K840P:CND)
1 X-4954-435-1 FRONT PANEL ASSY (SILVER)
(K840P:E,MY,SP,AR,MX)
1 X-4954-436-1 FRONT PANEL ASSY (SILVER) (K840P:AEP,UK)
1 X-4954-605-1 FRONT PANEL ASSY (BLACK) (K740P:US)
1 X-4954-606-1 FRONT PANEL ASSY (BLACK) (K840P:US)
2 4-232-113-01 KNOB (VOL) (SILVER)
2 4-232-113-12 KNOB (VOL) (BLACK)
3 4-232-118-01 CASE (BLACK)
3 4-232-118-21 CASE (SILVER)
4 1-683-763-11 HEADPHONE BOARD
5 4-951-620-01 SCREW (2.6X8), +BVTP
6 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)
6 4-210-291-11 SCREW (CASE 3 TP2) (SILVER)
7 1-773-250-11 WIRE (FLAT TYPE) (27 CORE)
* 8 4-921-941-01 CUSHION (FL)
9 3-386-245-13 HOLDER (FL)
10 A-4727-966-A DISPLAY BOARD, COMPLETE (K840P)
10 A-4728-362-A DISPLAY BOARD, COMPLETE (K740P)
11 1-683-759-11 POWER SW BOARD
FL101 1-518-718-11 INDICATOR TUBE, FLUORESCENT
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
