Sony STR-K885 - Chassis Section

45
STR-K885
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-977-358-11 CUSHION
52 3-077-331-21 +BV3 (3-CR)
53 3-701-748-00 CLAMP
54 4-249-675-01 +BV SUMITITE S 4X6 ROUND
55 3-905-609-01 SCREW (TRANSISTOR)
* 56 3-703-244-00 BUSHING (2104), CORD
0 57 1-777-071-83 CORD, POWER (SP, SP6, E51)
0 57 1-783-941-12 CORD, POWER (AR)
0 57 1-833-566-21 POWER-SUPPLY CORD (AUS)
58 A-1222-874-A MAIN BOARD, COMPLETE (SP, SP6)
58 A-1222-875-A MAIN BOARD, COMPLETE (AUS)
58 A-1222-876-A MAIN BOARD, COMPLETE (AR, E51)
59 A-1222-899-A DIGITAL BOARD, COMPLETE (SP, SP6)
59 A-1222-900-A DIGITAL BOARD, COMPLETE (AUS)
59 A-1222-901-A DIGITAL BOARD, COMPLETE (E51)
59 A-1222-902-A DIGITAL BOARD, COMPLETE (AR)
60 A-1158-394-A HDMI SW BOARD, COMPLETE
61 4-956-370-12 BAND, PLUG FIXED (AUS)
62 1-828-972-11 WIRE (FLAT TYPE) (13 CORE)
63 1-828-953-11 WIRE (FLAT TYPE) (9 core)
0 F4001 1-532-465-33 FUSE (T3.15AL/250V) (SP, SP6, AUS)

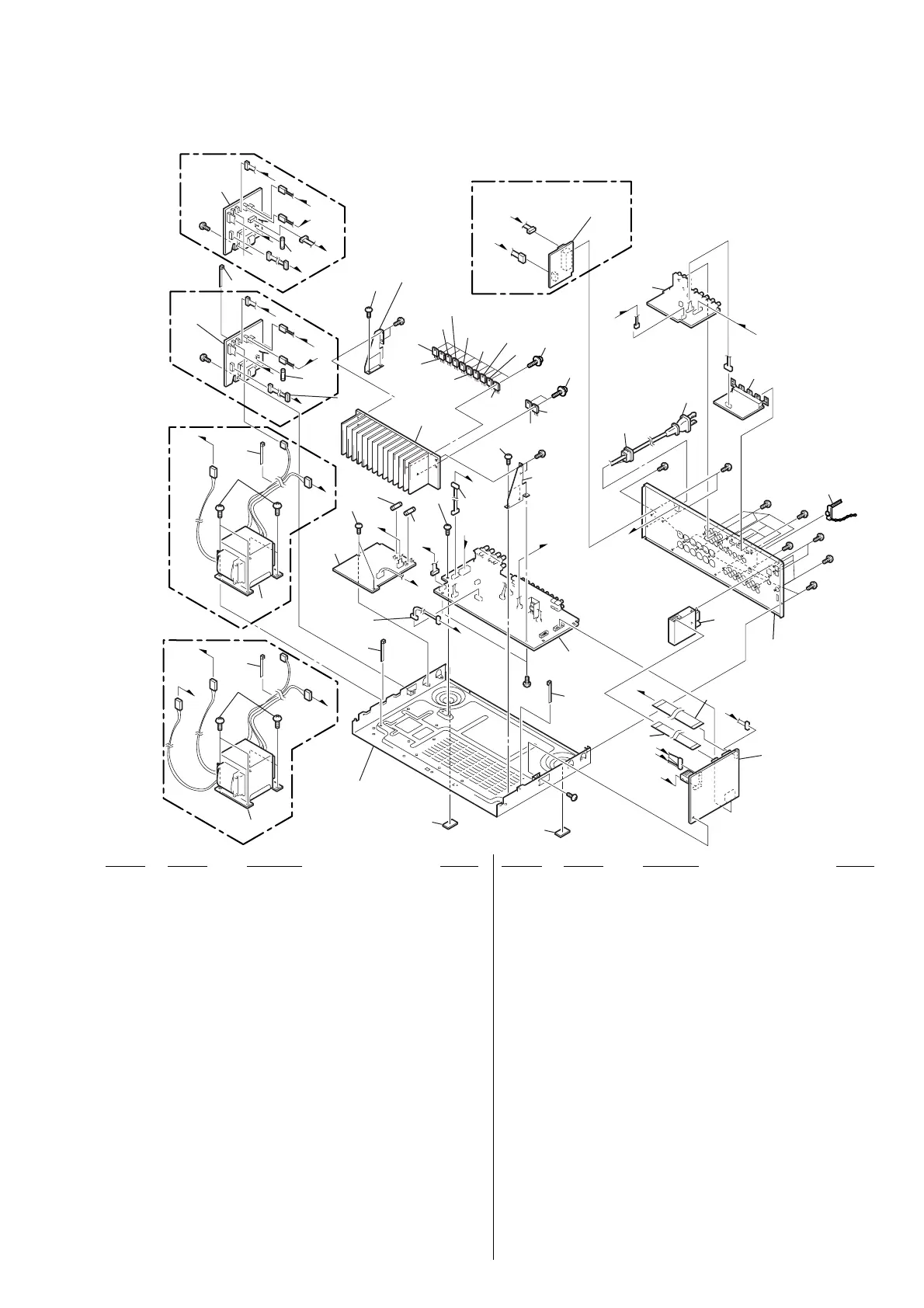

5-2. CHASSIS SECTION
0F4002 1-532-465-33 FUSE (T3.15AL/250V) (SP, SP6, AUS)
0F901 1-532-464-33 FUSE (T2.5AL/250V)
0Q503 6-702-390-01 IC MN2488-OPY-MK
0Q504 6-702-391-01 IC MP1620-OPY-MK
0Q533 6-702-390-01 IC MN2488-OPY-MK
0Q534 6-702-391-01 IC MP1620-OPY-MK
0Q603 6-702-390-01 IC MN2488-OPY-MK
0Q604 6-702-391-01 IC MP1620-OPY-MK
0Q653 6-702-390-01 IC MN2488-OPY-MK
0Q654 6-702-391-01 IC MP1620-OPY-MK
0Q703 6-702-390-01 IC MN2488-OPY-MK
0Q704 6-702-391-01 IC MP1620-OPY-MK
0Q753 6-702-390-01 IC MN2488-OPY-MK
0Q754 6-702-391-01 IC MP1620-OPY-MK
0T901 1-443-525-11 POWER TRANSFORMER (EXCEPT E51)
0T901 1-443-526-11 POWER TRANSFORMER (E51)
TN1 1-693-733-11 TUNER (FM/AM) (AR, E51)
TN1 1-693-735-11 TUNER (FM/AM) (SP, SP6, AUS)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-862-01 SCREW +BVTT 2.6X6 (S)
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
T901
54
Q604
Q754
Q753
Q654
Q704
Q703
Q503
Q534
Q533
Q504
55
Q653
Q603
55
52
#1
#1
#1
52
#1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
52
#1
59
63
62
not supplied
58
52
TN1
#1
#1
#1
#2
#1
#3
#1
#1
56
57
60
61
53
53
53
51
51
53
F901
F4002
F4001
a
a
c
c
l
l
m
b
a
b
b
c
d
e
e
d
f
f
g
g
k
k
i
i
h
j
j
h
not
supplied
T901
54
53
b
h
m
#1
not
supplied
F901
k
i
(E51)
(E51)
(E51)
(EXCEPT E51)
(EXCEPT E51)
Ver. 1.1
