6
STR-K885

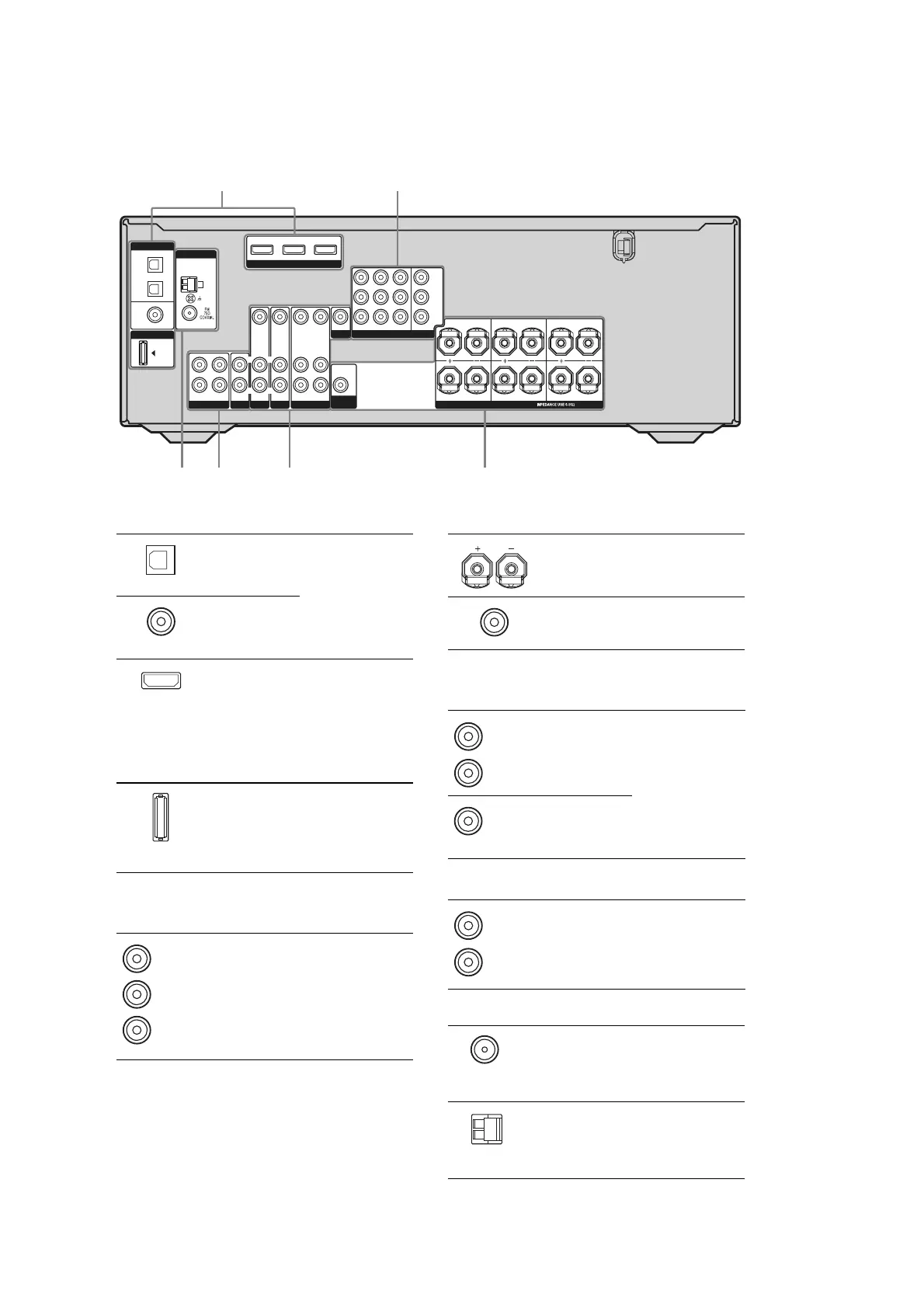

Rear panel
12
DIGITAL
DMPORT
OPTICAL
SAT
IN
DVD
IN
COAXIAL
ANTENNA
VIDEO 2/
BD IN
AM
SA-CD/CD/CD-R
TV
L
R
OUT IN IN
HDMI
DVD IN VIDEO 2/BD IN OUT
SAT
AUDIO IN
VIDEO IN
DVD
AUDIO IN
VIDEO IN
VIDEO 1
AUDIO OUT
VIDEO OUT
VIDEO OUT
SAT IN
AUDIO IN
AUDIO OUT
VIDEO IN
L
R
L
R
L
R
SUB
WOOFER
MONITOR
COMPONENT VIDEO
DVD IN VIDEO 1 IN
Y
P
B
/C
B
P
R
/C
R
MONITOR OUT
SPEAKERS
FRONT
L
R
SURROUND
L
R
CENTER
SURROUND BACK
3456
A DIGITAL INPUT/OUTPUT section
OPTICAL IN
jacks
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 19, 22,
24).
COAXIAL IN
jack
HDMI IN/
OUT jacks*
Connects to a DVD
player or a Blu-ray
disc player. The
image and the
sound are output to
a TV or a projector
(page 19).
DMPORT
jack
(Models of area
code SP, AUS
only)
Connects to a
DIGITAL MEDIA
PORT adapter
(page 60).
B COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO
INPUT/
OUTPUT
jacks*
Connects to a DVD
player, TV,
satellite tuner, etc.
You can enjoy high
quality image
(page 21–24).
Green
(Y)
Blue
(P
B
/C
B
)
Red
(P
R
/C
R
)
C SPEAKERS section
Connects to
speakers (page 15).
Connects to sub
woofer (page 15).
D VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to the
video and audio
jacks of a VCR,
DVD player, etc.
(page 21–25).
VIDEO IN/
OUT jacks*
E AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connects to a
Super Audio CD
player, CD
recorder, etc. (page
17, 21).
White (L)
Red (R)
Yellow
White (L)
Red (R)
*You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV (page 21).
F ANTENNA section
FM
ANTENNA
jack
Connects to the
FM wire antenna
supplied with this
receiver (page 26).
AM
ANTENNA
terminals
Connects to the
AM loop antenna
supplied with this
receiver (page 26).
Model of area code SP6 uses same jack as the model
of area code SP.
Ver. 1.1
