STR-K890
SECTION 1
GENERAL
This section is extracted
from instruction manual.

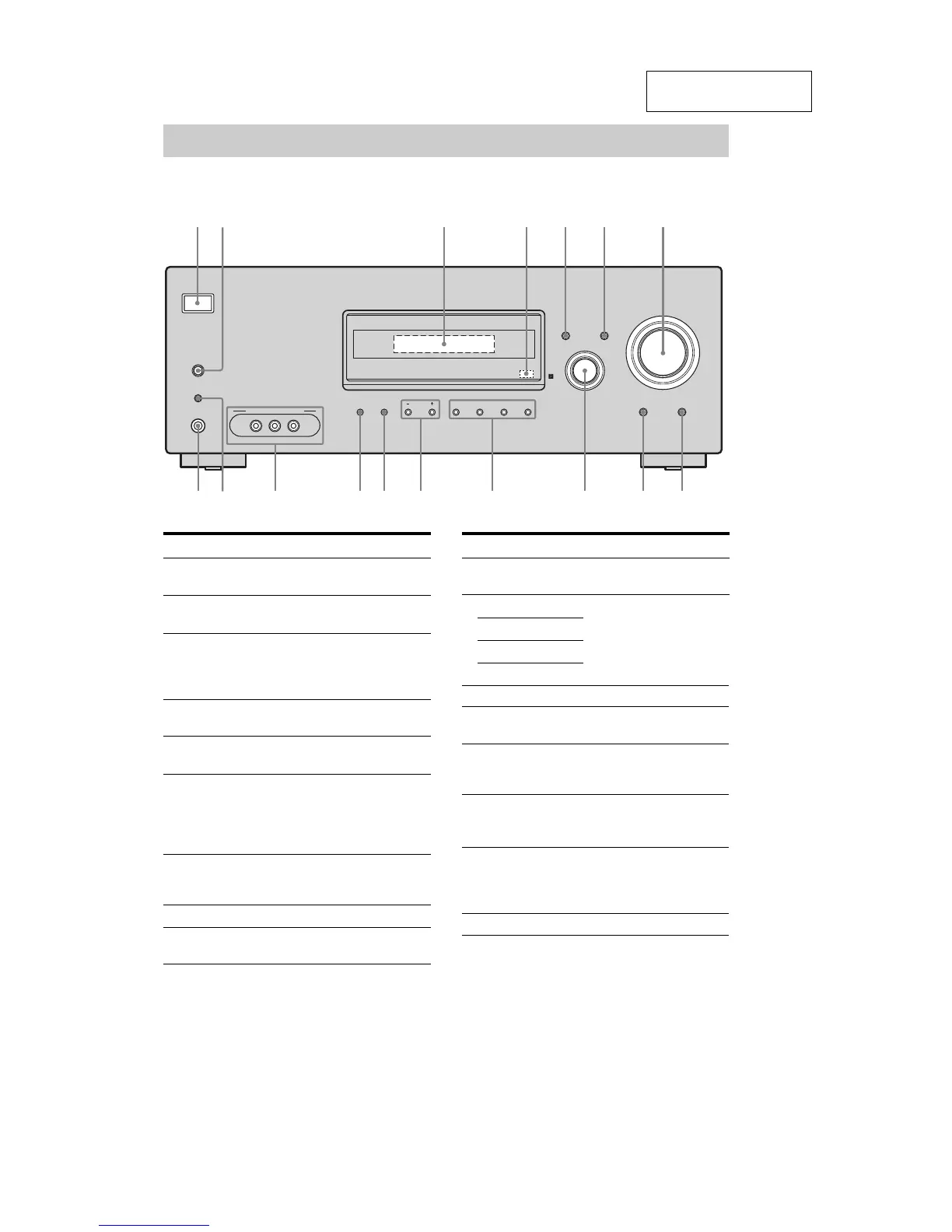

Front panel
.
Receiver
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
3
4
8
9
12 5 6 7
q;qaqj qsqgqh
qdqf
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off.
B SPEAKERS
(OFF/A/B/A+B)
Press to select the speaker
system.
C Display The current status of the
selected component or a list
of selectable items appears
here.
D Remote sensor Receives signals from
remote commander.
E DISPLAY Press to select information
displayed on the display.
Name Function
F INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks.
G MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time.
H MUTING Press to mute the sound.
I AUTO CAL Press to activate the Auto
Calibration function.
J INPUT
SELECTOR
Turn to select the input
source to playback.
K 2CH Press to select a sound field.
A.F.D.
MOVIE
MUSIC
L TUNING +/– Press to scan a station.
M TUNING MODE Press to select the tuning
mode.
N MEMORY/
ENTER
Press to store a station or
enter the selection when
selecting the settings.
O VIDEO 3 IN/
PORTABLE AV
IN jacks
Connects to a camcorder or
video game.
P AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function.
Q PHONES jack Connects to a headphone.
