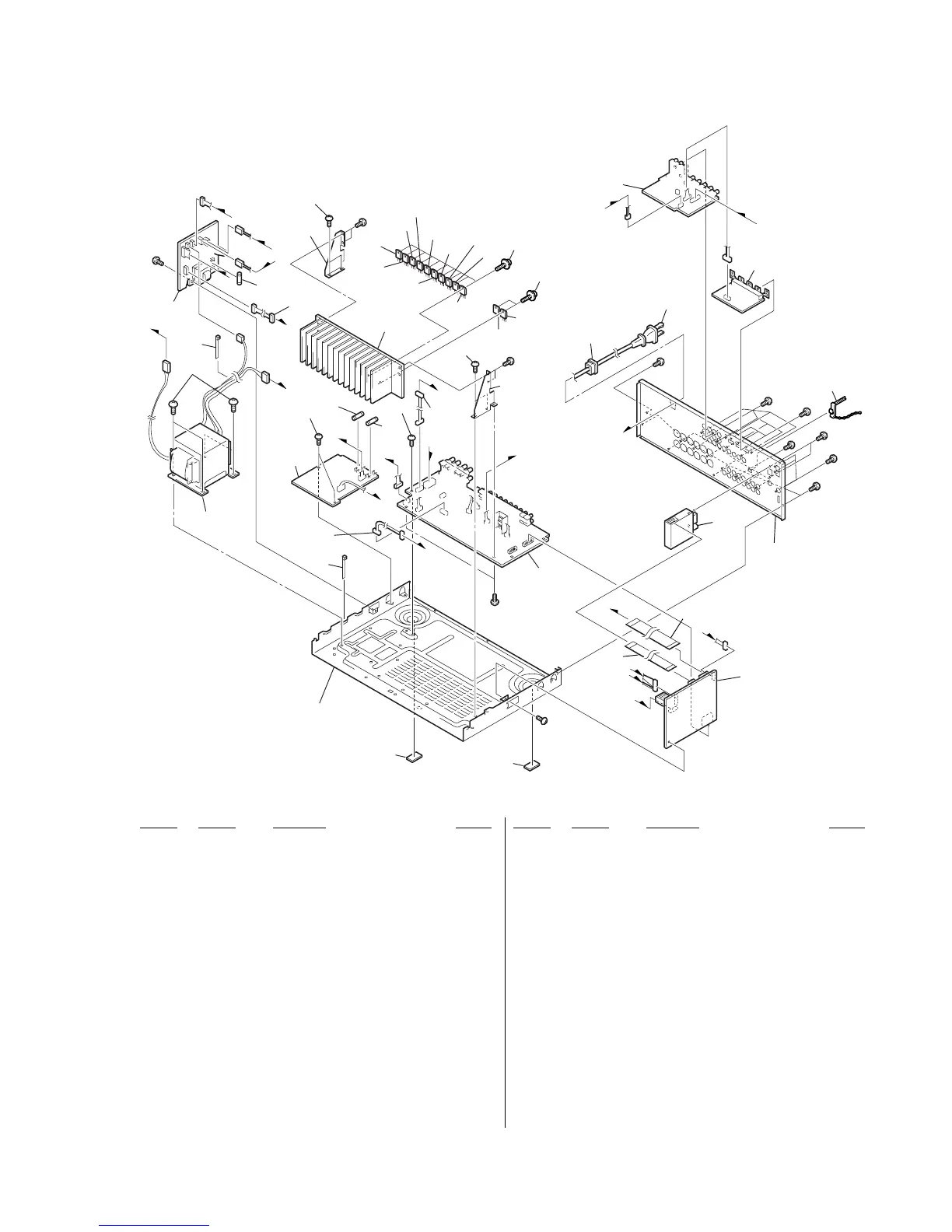

Sony STR-K890 - 5-2. Chassis Section Exploded View

45
STR-K890
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-977-358-01 CUSHION
52 3-077-331-21 +BV3 (3-CR)
53 3-701-748-00 CLAMP
54 4-249-675-01 +BV SUMITITE S 4X6 ROUND
55 3-905-609-01 SCREW (TRANSISTOR)
* 56 3-703-244-00 BUSHING (2104), CORD
0 57 1-777-071-83 CORD, POWER
58 A-1222-873-A MAIN BOARD, COMPLETE
59 1-828-973-11 WIRE (FLAT TYPE) (13 CORE)
60 1-828-963-11 WIRE (FLAT TYPE) (11 CORE)
61 A-1222-898-A DIGITAL BOARD, COMPLETE
62 A-1158-394-A HDMI SW BOARD, COMPLETE
63 4-956-370-12 BAND, PLUG FIXED (UK)
0 F4001 1-532-465-33 FUSE(T3.15AL/250V)
0 F4002 1-532-465-33 FUSE(T3.15AL/250V)
0 F901 1-532-464-33 FUSE(T2.5AL/250V)
0 Q503 6-702-390-01 IC MN2488-OPY-MK
5-2. CHASSIS SECTION
0 Q504 6-702-391-01 IC MP1620-OPY-MK
0 Q533 6-702-390-01 IC MN2488-OPY-MK
0 Q534 6-702-391-01 IC MP1620-OPY-MK
0 Q603 6-702-390-01 IC MN2488-OPY-MK
0 Q604 6-702-391-01 IC MP1620-OPY-MK
0 Q653 6-702-390-01 IC MN2488-OPY-MK
0 Q654 6-702-391-01 IC MP1620-OPY-MK
0 Q703 6-702-390-01 IC MN2488-OPY-MK
0 Q704 6-702-391-01 IC MP1620-OPY-MK
0 Q753 6-702-390-01 IC MN2488-OPY-MK
0 Q754 6-702-391-01 IC MP1620-OPY-MK
0 T901 1-443-525-11 POWER TRANSFORMER
TN1 1-693-737-11 TUNER (FM/AM)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-862-09 SCREW +BVTT 2.6X6 (S)
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
T901
54
Q604
Q754
Q753
Q654
Q704
Q703
Q503
Q534
Q533
Q504
55
Q653
Q603
55
52
#1
#1
52
#1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
52
#1
61
60
59
not supplied
58
52
TN1
#1
#1
#1
#2
#1
#3
#1
#1
56
57
62
63
53
51
51
53
F901
F4002
F4001
a
a
c
b
b
c
d
e
e
d
f
f
g
g
k
k
i
i
h
j
j
h
