Sony STR-KM22 - Disassembly Procedures

STR-KM22/KM55/KM77
6
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

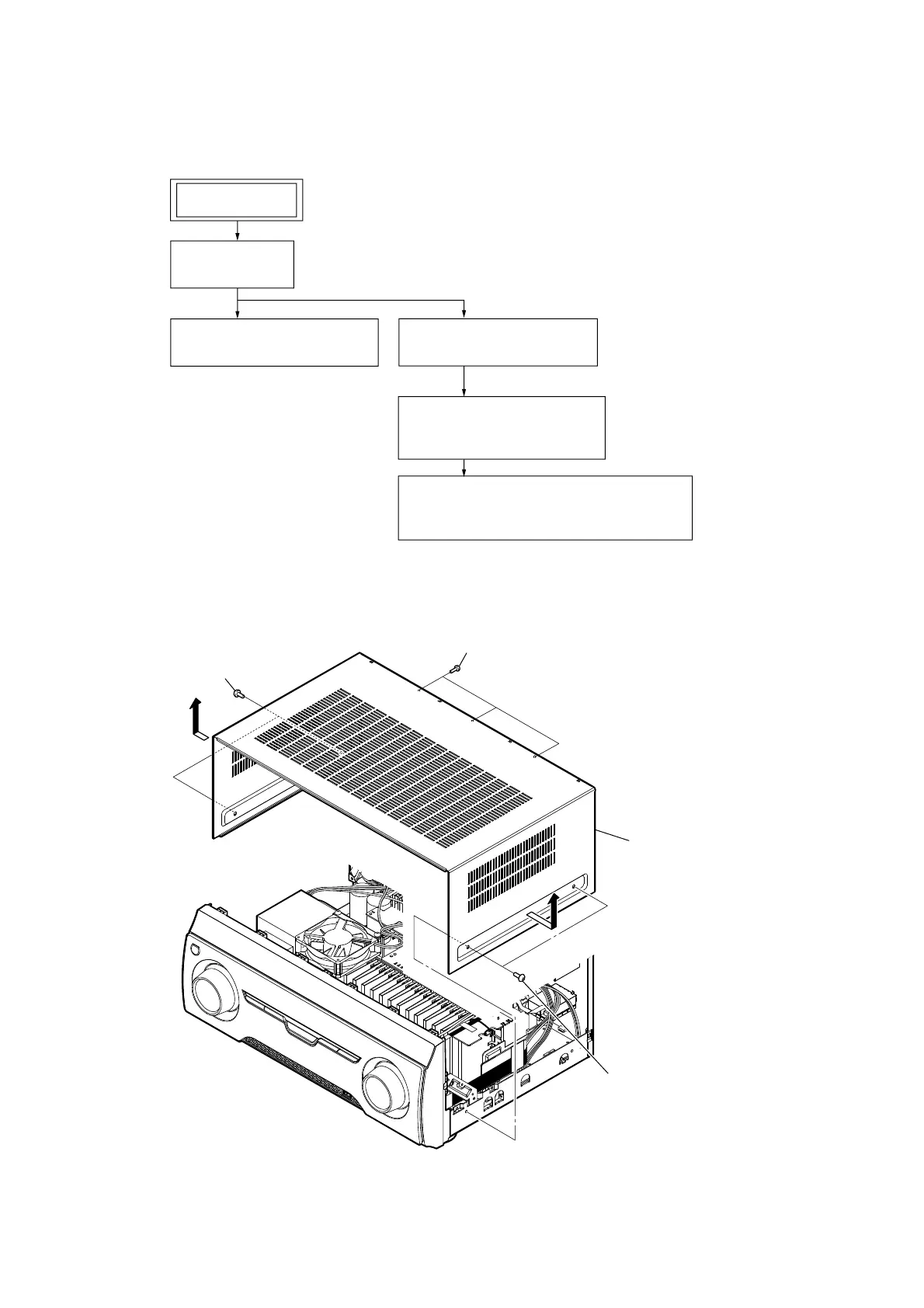

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE
2-2. CASE
(Page 6)
2-3. FRONT PANEL SECTION
(Page 7)
2-4. BACK PANEL SECTION
(Page 8)
2-5. SUB RECTIFIER BOARD,
MAIN BLOCK
(Page 9)
2-6. DSP BOARD, SURR BACK AMP BOARD,
MAIN BOARD, HEATSINK BLOCK
(Page 10)
SET
4
4
1 two screws
(+BVST 4 u 8)
5 case
2 two screws
(+BVST 4 u 8)
3 three screws
(+BVTP 3 u 8)
