63
STR-KM22/KM55/KM77
SECTION 6
EXPLODED VIEWS
1 2-580-630-01 SCREW, +BVST 4X8
2 4-299-206-11 CASE
3 1-828-361-21 WIRE (FLAT TYPE) (19 CORE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
• Abbreviation
AR : Argentina model
AUS : Australian model
E12 : 220-240 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
SAF : South African model
SP : Singapore model
TH : Thai model

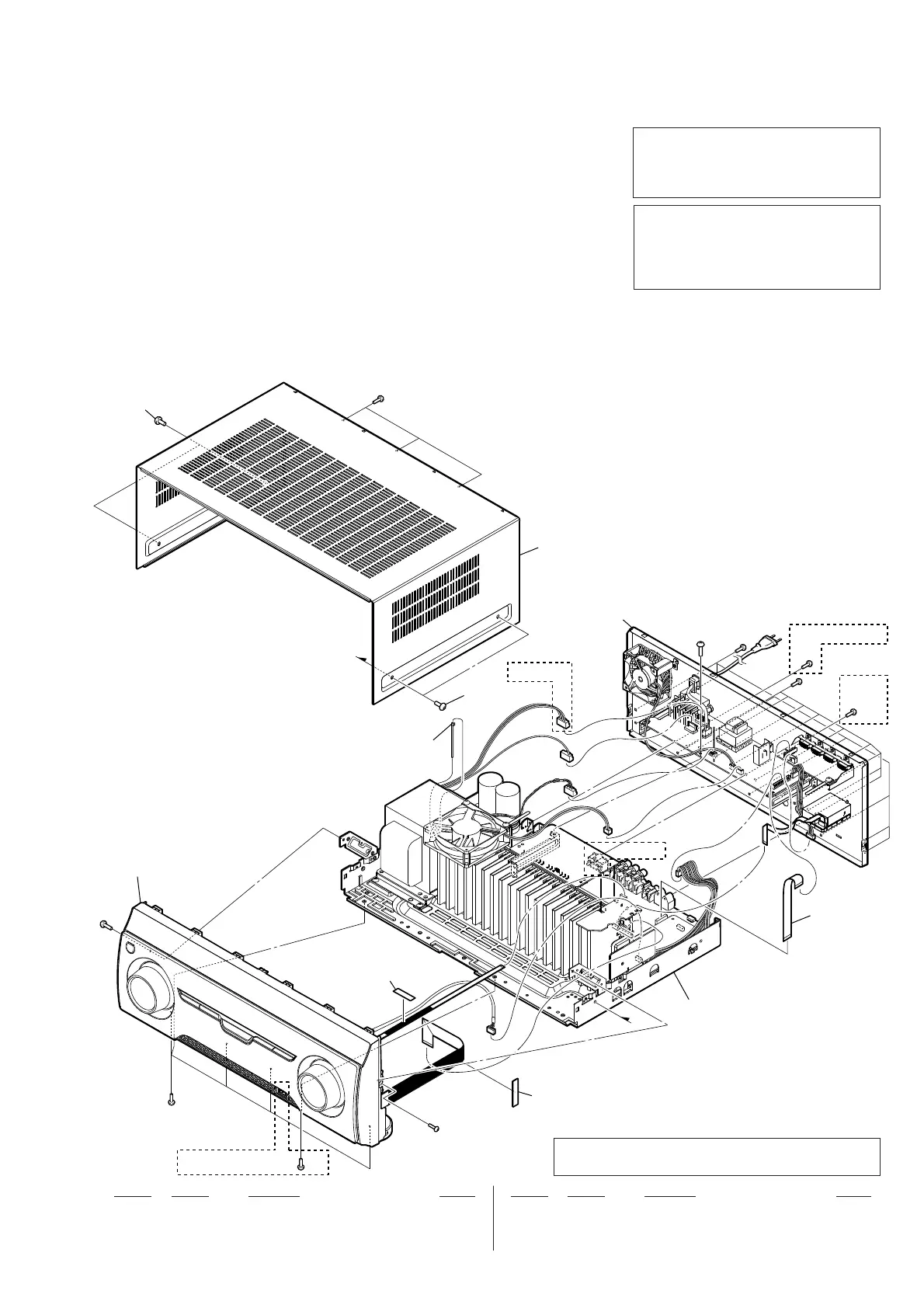

6-1. CASE SECTION
The components identifi ed by mark
9
con-
tain confi dential information.
Strictly follow the instructions whenever
the components are repaired and/or re-
placed.
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
#1
A
#1
1
1
#1
#1
#1
#1
#1
#1
3
A
2
front panel section
back panel
section
chassis section
(except SAF, AR)
(E51, EA)
(KM77)
(KM77)
not supplied
not supplied
#1
(KM55,KM77)
#1
not supplied
Ver. 1.1
To Next Page
