Sony STR-KM22 - Back Panel Section

STR-KM22/KM55/KM77
8

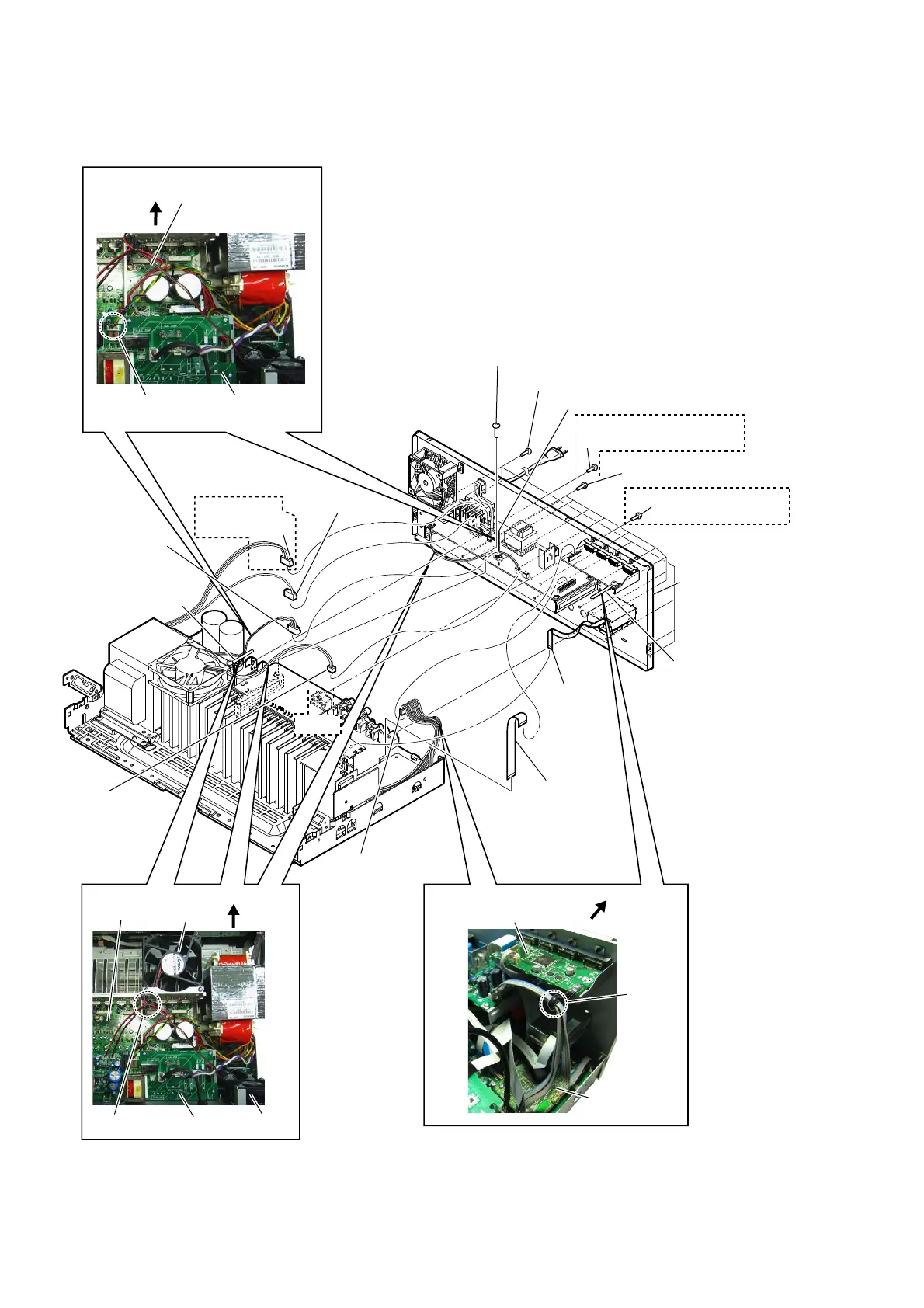

2-4. BACK PANEL SECTION
• Abbreviation
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
:LUHVHWWLQJ:LUHVHWWLQJ
:LUHVHWWLQJ
rear side
front side
front side
HDMI RE PC board
fan, DC
MAIN board
MAIN board
DC fan
STANDBY board
clamp
STANDBY boardpin, lead
DSP board
clamp
2 CN903 (3P)
(KM55, KM77)
5 wire is removed from pin, lead.
qa one screw
(+BVTP 3 x 8)
qs seven screws (+BVTP 3 x 8)
qf one screw (+BVTP 3 x 8)
qd nine screws (+BVTP 3 x 8)
qg one screw (+BVTP 3 x 8)
qh back panel section
3 CNP902 (4P)
6 CN911 (4P)
4 CNP903(3P)
1 wire is removed
from clamp.
(KM55, KM77)
8 CN912 (13P)
9 wire (flat type)
(19 core)
(CN2509)
0 wire
(flat type)
(9 core)
(CN2505)
7 wire is removed
from clamp.
(($
