Sony STR-KM22 - Front Panel Section

64
STR-KM22/KM55/KM77

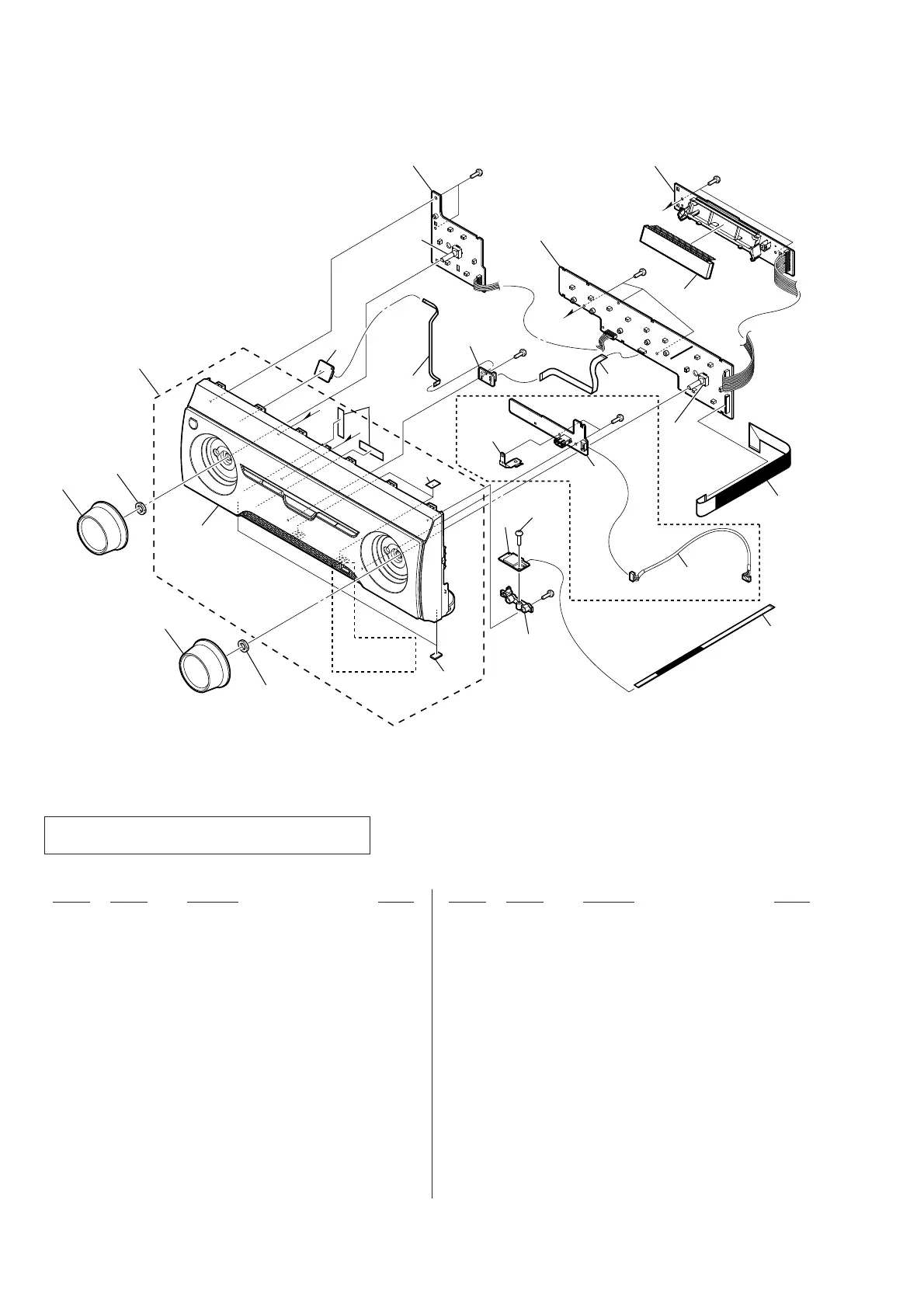

6-2. FRONT PANEL SECTION
51 A-1983-289-A DISPLAY BOARD, COMPLETE
52 1-828-404-61 WIRE (FLAT TYPE) (27 CORE)
53 1-828-310-21 WIRE (FLAT TYPE) (9 CORE)
54 A-1983-292-A FRONT USB BOARD, COMPLETE
(EXCEPT SAF, AR)
55 1-828-171-61 WIRE (FLAT TYPE) (8 CORE)
56 8-989-470-05 RC-S801/A5 (WW)
57 3-087-053-01 +BVTP2.6 (3CR)
58 1-828-204-61 WIRE (FLAT TYPE) (14 CORE)
59 1-490-558-92 BLUETOOTH MODULE
60 4-299-199-11 KNOB, VOLUME
61 X-2588-748-1 FRONT PANEL ASSY (KM77: SAF)
61 X-2588-750-1 FRONT PANEL ASSY (KM77: SP, AUS)
61 X-2588-758-1 FRONT PANEL ASSY (KM77: E51)
61 X-2588-762-1 FRONT PANEL ASSY (KM77: AR)
61 X-2588-768-1 FRONT PANEL ASSY (KM55: EA, TH, E12)
61 X-2588-774-1 FRONT PANEL ASSY (KM55: SAF)
61 X-2588-781-1 FRONT PANEL ASSY (KM55: E51)
61 X-2588-784-1 FRONT PANEL ASSY (KM55: AR)
61 X-2588-798-1 FRONT PANEL ASSY (KM22: SAF)
61 X-2588-801-1 FRONT PANEL ASSY (KM22: EA, SP, TH)
61 X-2588-807-1 FRONT PANEL ASSY (KM22: E51)
61 X-2588-813-1 FRONT PANEL ASSY (KM22: AR)
62 4-977-358-01 CUSHION
ND101 1-483-522-11 VACUUM FLOURESCENT DISPLAY
EN100 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(INPUT SELECTOR)
EN101 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
