STR-KM5/KM7
6
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

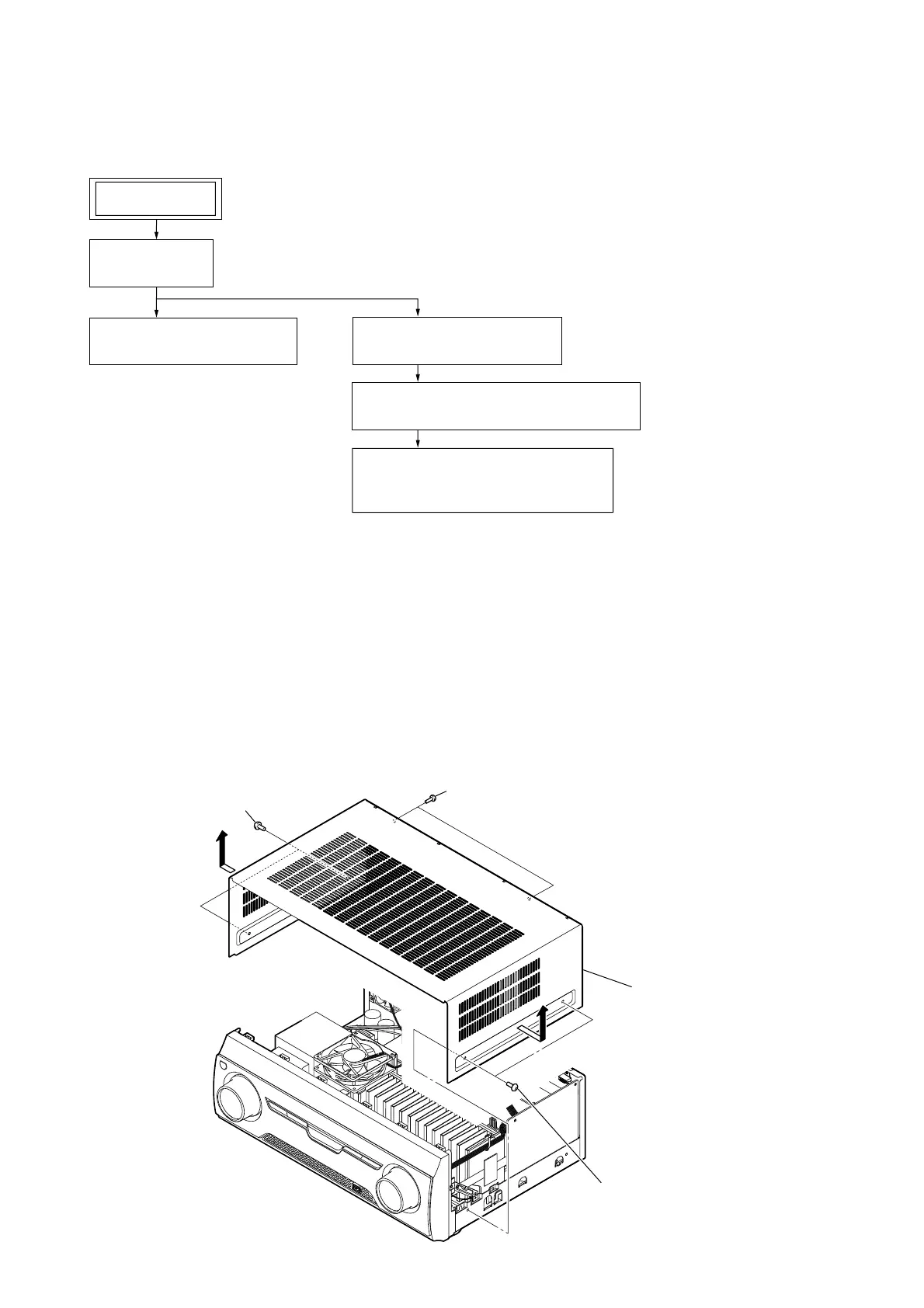

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE
3 two screws
(+BVTP 3 u 8)
4
4
2 two screws
(+BVST 4 u 8)
5 case
1 two screws
(+BVST 4 u 8)
2-2. CASE
(Page 6)
2-3. FRONT PANEL BLOCK
(Page 7)
2-4. BACK PANEL BLOCK
(Page 7)
2-5. MAIN BLOCK, SUB RECTIFIER BOARD
(Page 8)
2-6. HEATSINK BLOCK, MAIN BOARD,
SURR BACK AMP BOARD
(Page 9)
SET
