58
STR-KM5/KM7
SECTION 6
EXPLODED VIEWS
1 2-580-630-01 SCREW, +BVST 4X8
2 4-299-206-11 CASE
3 3-831-441-11 CUSHION, SARANET
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
E12 : 220 - 240V AC area in E model
E51 : Chilean and Peruvian models
AR : Argentina model
AUS : Australian model
EA : Saudi Arabia model
SAF : South African model
SP : Singapore model
TH : Thai model

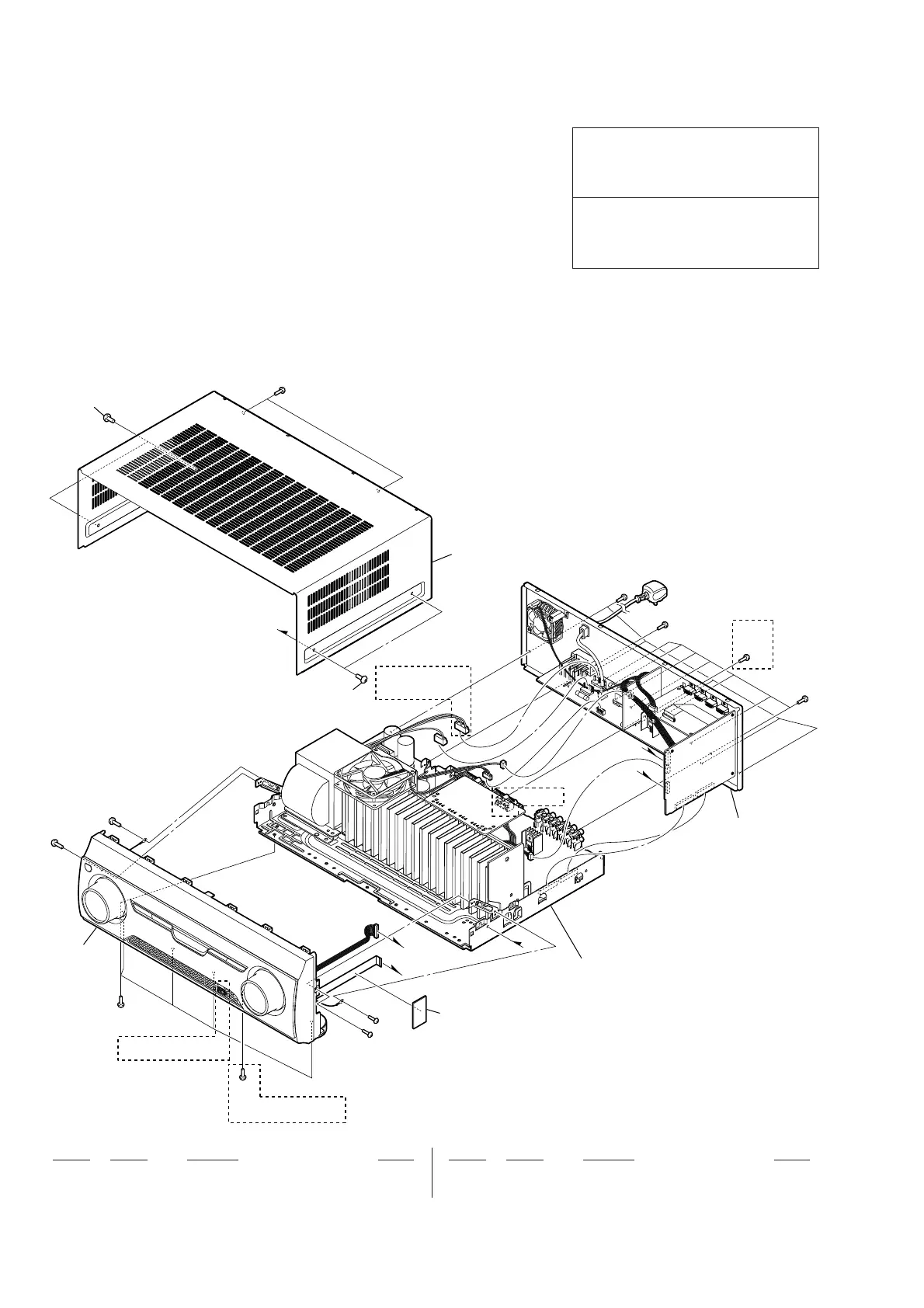

6-1. CASE SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Ver. 1.5
A
A
B
C
B
C
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
1
2
1
3
front panel
section
back panel
section
chassis section
#1
(except SAF, AR)
(KM7)
(except SAF, AR)
(KM7)
(KM5: E51, EA)
(KM7: EA)
To Next Page
