Sony STR-KM7 - Back Panel Section

60
STR-KM5/KM7

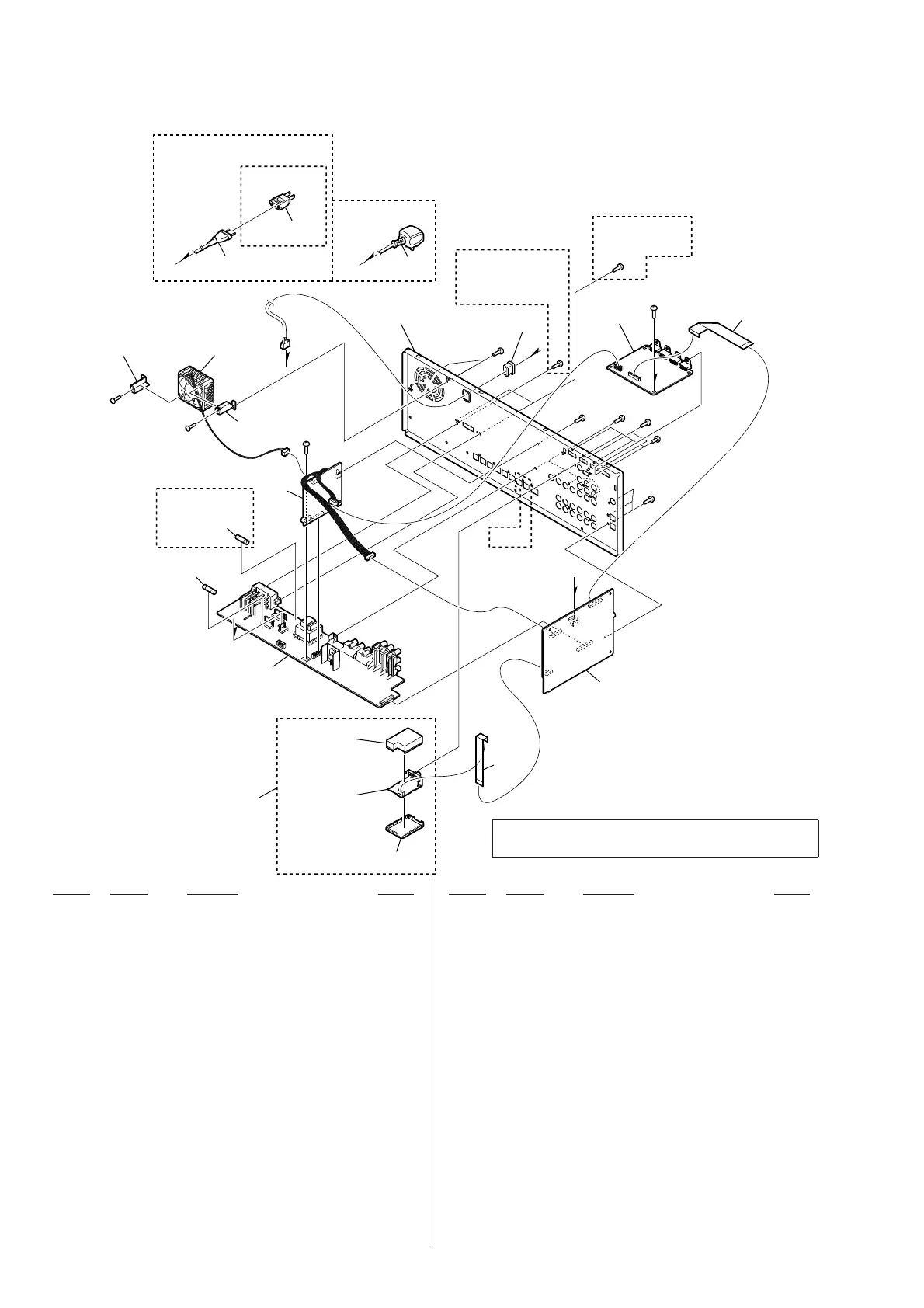

6-3. BACK PANEL SECTION
101 1-828-368-61 WIRE (FLAT TYPE) (21 CORE)
9
102 A-1846-040-A HDMI RE PC BOARD, COMPLETE
103 A-2044-508-A DIGITAL AUDIO BOARD, COMPLETE (KM7)
103 A-2044-510-A DIGITAL AUDIO BOARD, COMPLETE (KM5)
104 1-828-310-61 WIRE (FLAT TYPE) (9 CORE)
105 A-1846-561-A TUNER1AMPR ASSY (EXCEPT KM5: US)
105 A-1846-564-A TUNER1AMF ASSY (KM5: US)
106 A-1851-631-A DCDC BOARD, COMPLETE
107 A-1851-747-A POWER ANALOG VIDEO MT PC BOARD
(KM7: SAF)
107 A-1851-772-A POWER ANALOG VIDEO MT PC BOARD (KM7: EA)
107 A-1851-784-A POWER ANALOG VIDEO MT PC BOARD
(KM7: AUS)
107 A-1851-834-A POWER ANALOG VIDEO MT PC BOARD
(KM5: TH, E12)
107 A-1851-945-A POWER ANALOG VIDEO MT PC BOARD
(KM5: SAF)
107 A-1851-962-A POWER ANALOG VIDEO MT PC BOARD (KM5: EA)
107 A-1851-979-A POWER ANALOG VIDEO MT PC BOARD
(KM5: E51)
107 A-1851-987-A POWER ANALOG VIDEO MT PC BOARD (KM5: AR)
107 A-1879-486-A POWER ANALOG VIDEO MT PC BOARD (KM7: SP)
107 A-1940-674-A POWER ANALOG VIDEO PC BOARD, COMPLETE
(KM7: AR)
107 A-1970-064-A POWER ANALOG VIDEO PC BOARD, COMPLETE
(KM5: US)
0
108 4-966-267-12 BUSHING (FBS001), CORD
0
109 1-777-071-83 CORD, POWER (KM5: E51, SAF, E12/
KM7: SAF, SP)
0
109 1-833-566-21 POWER-SUPPLY CORD (KM7: AUS)
0
109 1-834-288-21 CORD, POWER (KM5: TH)
0
109 1-835-078-31 CORD, POWER (EA)
0
109 1-837-308-11 CORD, POWER-SUPPLY (KM5: US)
0
109 1-837-312-11 CORD, POWER-SUPPLY (AR)
0
110 1-785-504-21 ADAPTOR, CONVERSION (KM5: E51)
0
F901 1-532-504-33 FUSE (T4AL/250V) (EXCEPT KM5: US)
0
F901 1-533-311-12 FUSE, GLASS (DIA.5) (8A/125V) (KM5: US)
0
F902 1-532-506-33 FUSE (T6.3AL/250V) (KM5: E51, EA/KM7: EA)
0
M2 1-787-955-21 DC FAN
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Ver. 1.6
D
F
F
F
D
E
E
(KM7)
(KM7)
(KM5: E51, EA)
(KM7: EA)
(KM5: E51, EA)
(KM7: EA)
(KM5: except E51,
EA)
(KM7: except EA)
(KM5)
(E51)
#1
#1
#1
#1
#2
#1
#1
#1
F901
not supplied
M2
not
supplied
not supplied
not
supplied
not supplied
not supplied
(TUNER1 board)
F902
#2
#1
#1
#2
103
104
106
108
109 109
101
102
107
105
110
