Sony STR-KM7 - Chassis Section

61
STR-KM5/KM7
*
151 3-703-150-11 CLAMP
152 4-249-675-02 +BV SUMITITE S 4X6 ROUND
153 4-977-358-01 CUSHION
0
T901 1-697-213-11 POWER TRANSFORMER (MAIN)
(KM5: E51, EA/KM7: EA)
0
T901 1-697-214-11 POWER TRANSFORMER (MAIN)
(KM5: EXCEPT US, E51, EA/KM7: EXCEPT EA)
0
T901 1-697-318-11 POWER TRANSFORMER (MAIN) (KM5: US)
0
M1 1-855-006-11 FAN, DC
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

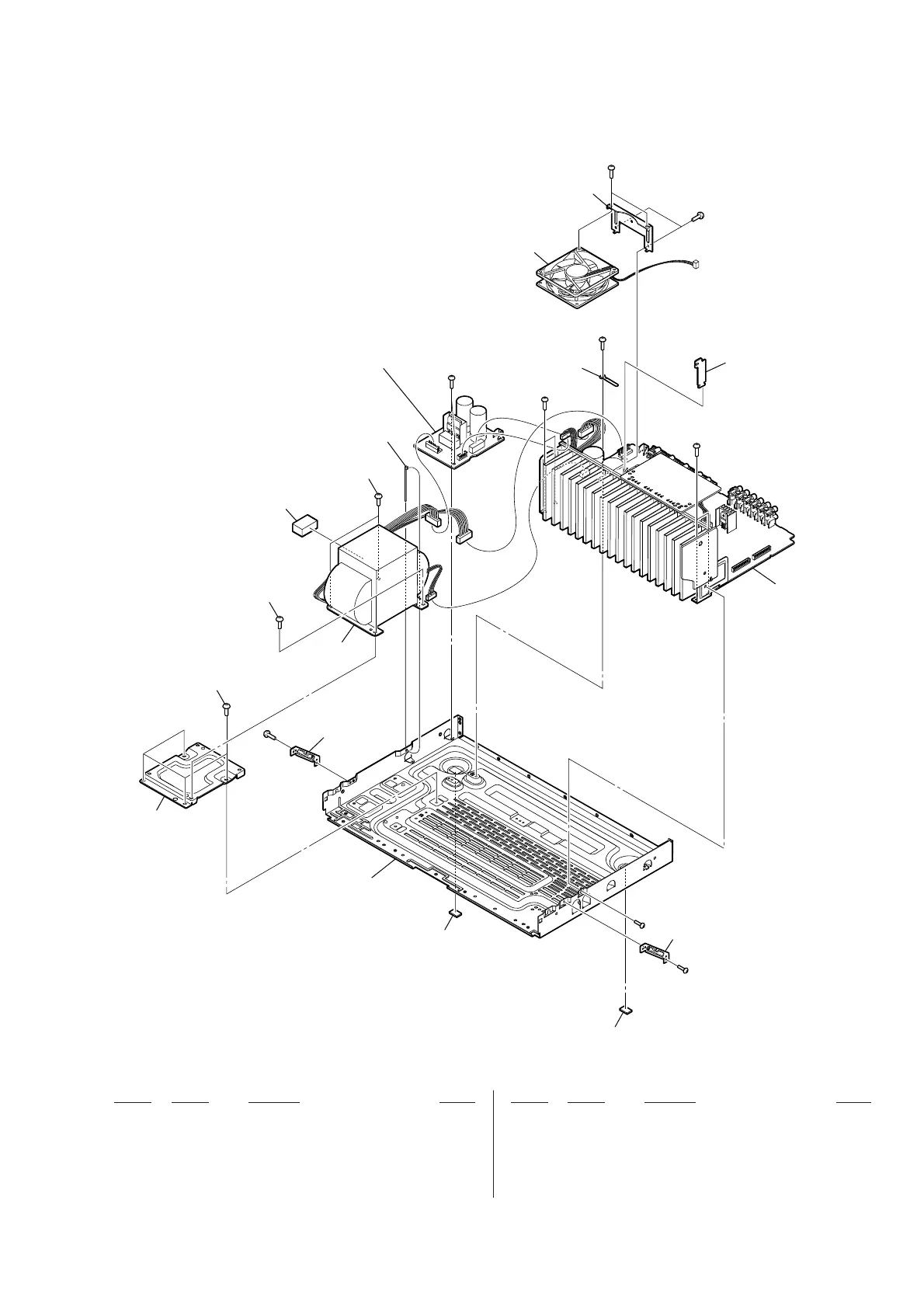

6-4. CHASSIS SECTION
Ver. 1.5
#1
#1
#1
#1
heatsink section
#1
#1
not supplied
(SUB RECTIFIER board)
not supplied
(LOCK board)
not supplied
M1
not supplied
T901
151
152
152
152
153
153
not supplied
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
