Sony STR-KM7 - Main Block, SUB RECTIFIER Board

STR-KM5/KM7
8

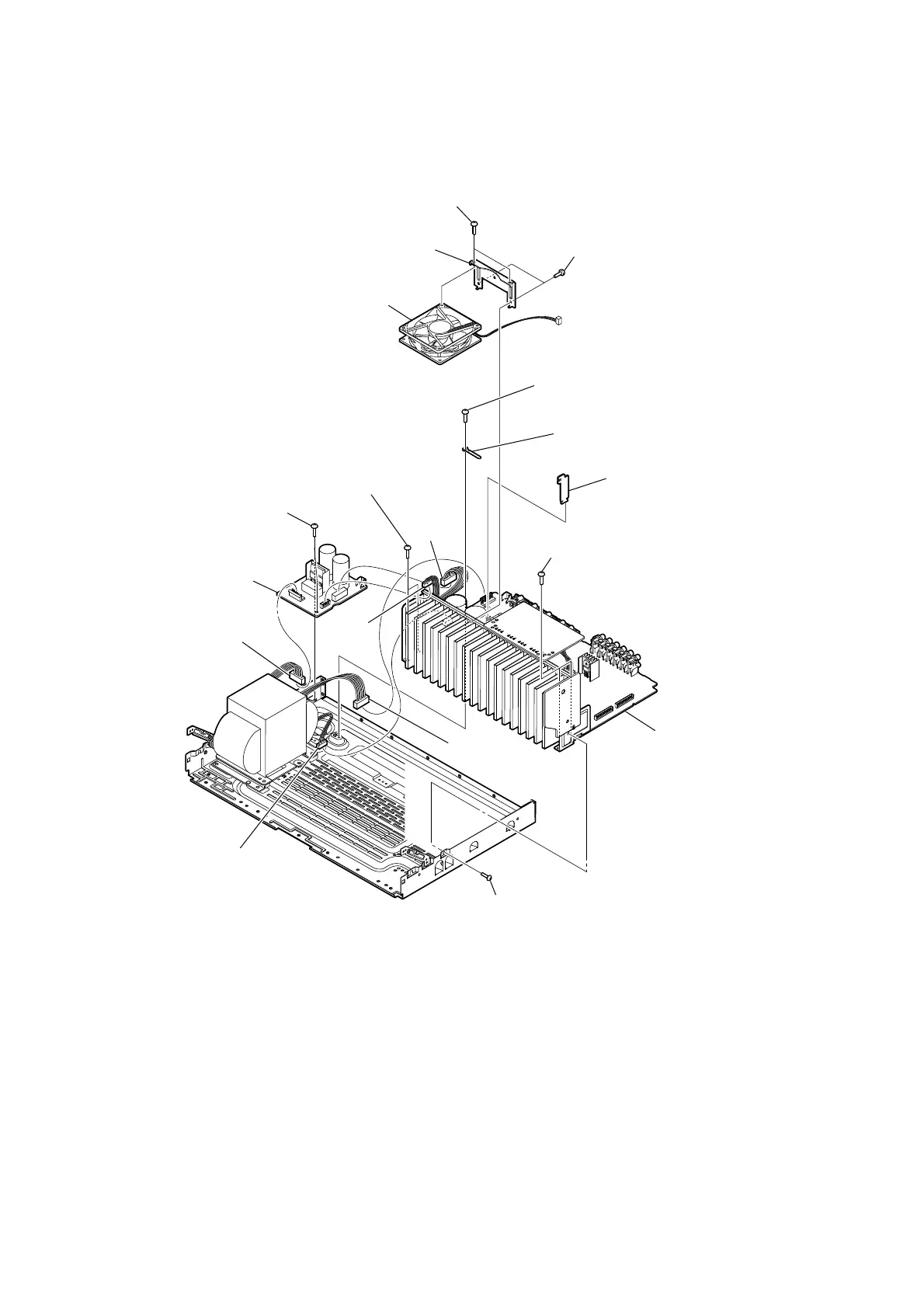

2-5. MAIN BLOCK, SUB RECTIFIER BOARD
1 two screws
(+BVTP 3 u 8)
2 two screws
(+BVTP 3 u 8)
qd one screw
(+BVTP 3 u 8)
qg two screws
(+BVTP 3 u 8)
8 two screws
(+BVTP 3 u 8)
9 SUB RECTIFIER board
0 LOCK board
qk MAIN block
5 CN932
(6P)
6 CN931
(6P)
7 CNP931 (5P)
qa CN951
(5P)
qs CN950
(5P)
qh two screws
(+BVTP 3 u 8)
qj one screw
(+BVTP 3 u 8)
qf clamp
3 bracket, fan
4 fan, DC
