Sony TA-FB730R - 3-3. PRINTED WIRING BOARD - INPUT SECTION

– 9 –
– 10 –
TA-FB730R

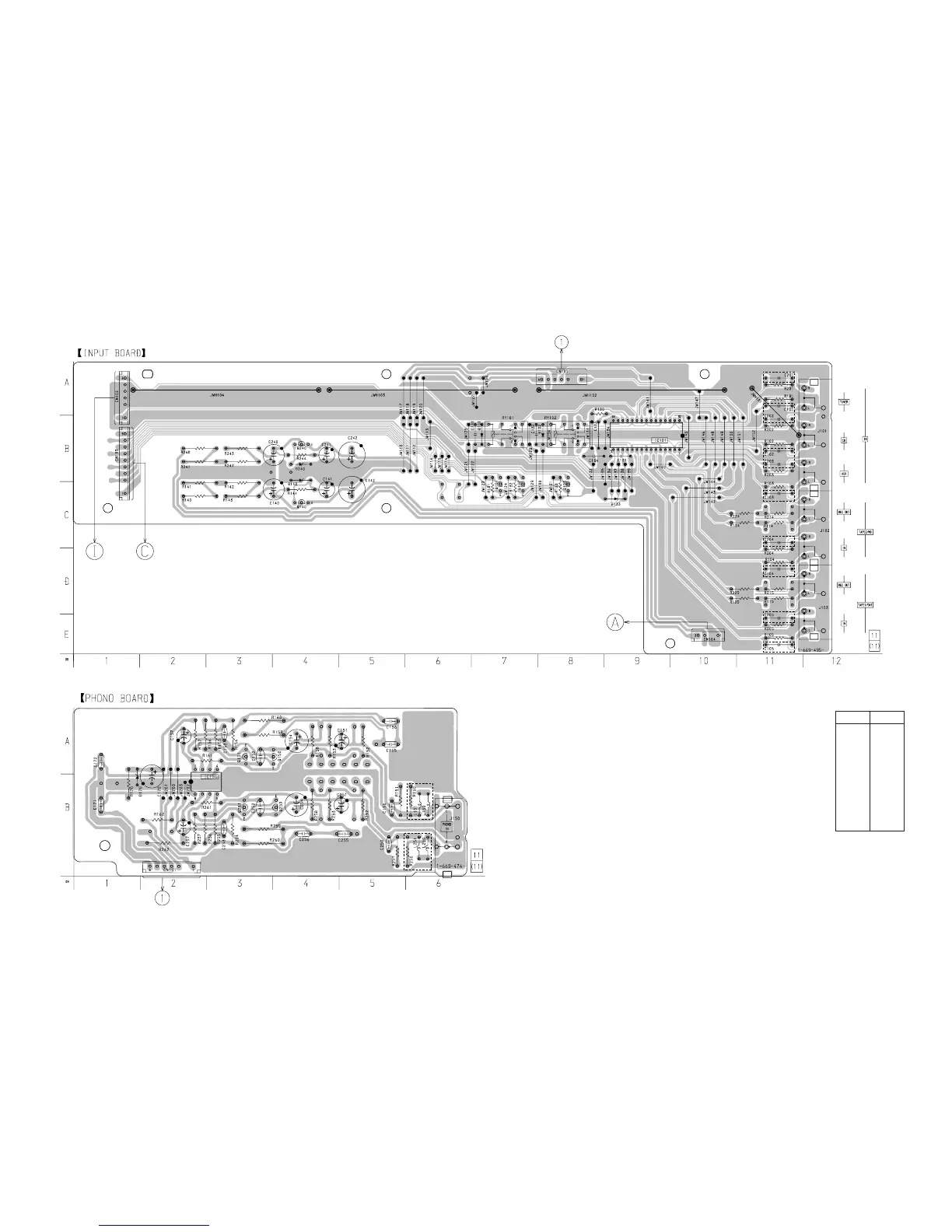

3-3. PRINTED WIRING BOARD – INPUT SECTION –
• See page 5 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D101 B-7
D102 B-8
D133 C-9
D140 B-4
D240 B-4
IC101 B-9
Q101 C-7
Q102 C-7
Q103 C-8
Q140 C-4
Q240 B-4
(Page 18)
(Page 17)
(Page 13)
EXCEPT UK, SP
EXCEPT UK, SP
EXCEPT UK, SP
EXCEPT UK, SP
EXCEPT UK, SP
EXCEPT UK, SP
EXCEPT
UK, SP
EXCEPT UK, SP
EXCEPT UK, SP
EXCEPT UK, SP
