Sony TA-FB730R - 3-5. PRINTED WIRING BOARD - MAIN SECTION

– 13 – – 14 –
TA-FB730R

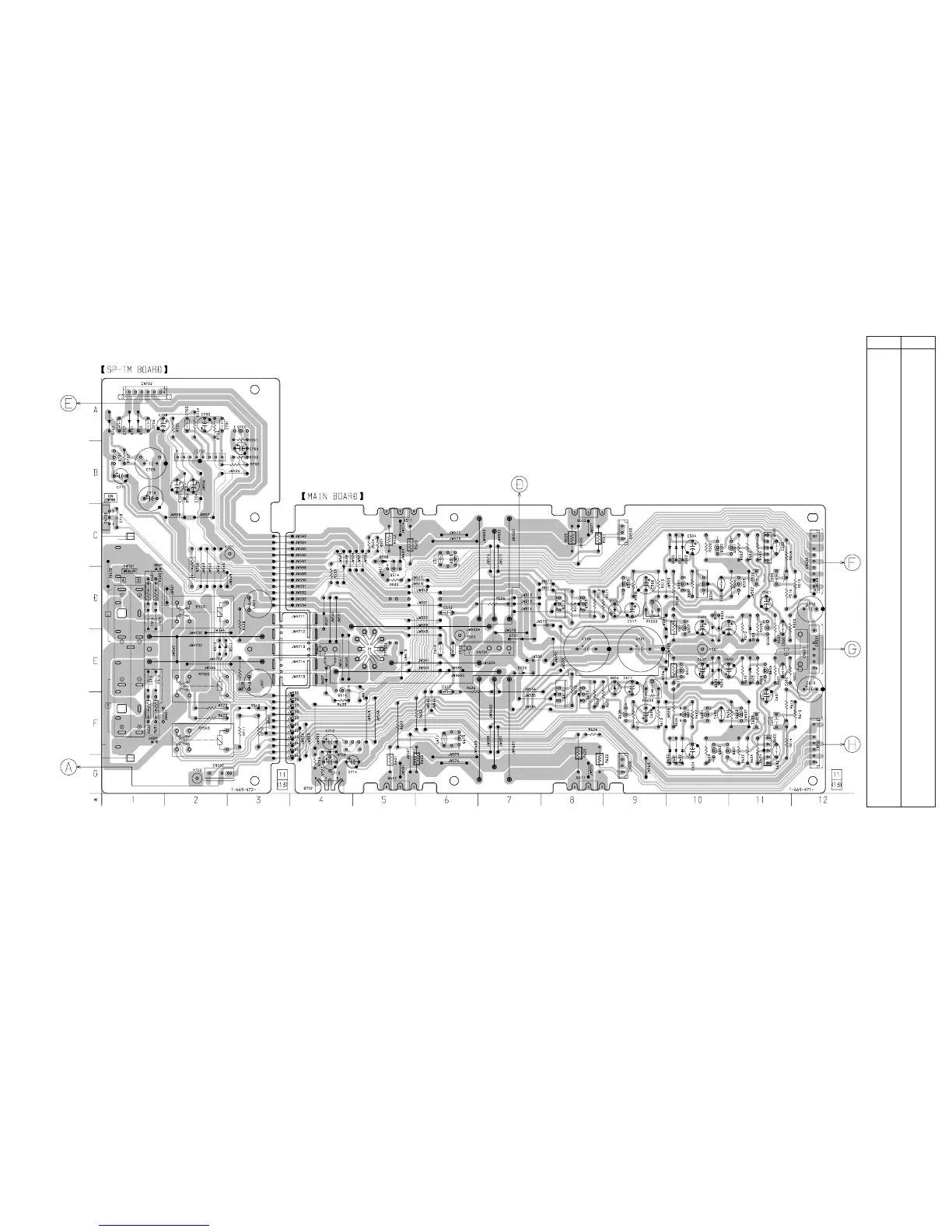

3-5. PRINTED WIRING BOARD – MAIN SECTION –
• See page 5 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D500 C-10
D501 C-10
D502 C-10
D503 E-11
D504 E-10
D505 E-10
D506 D-9
D511 E-2
D512 E-2
D513 F-3
D600 G-10
D601 G-10
D602 G-10
D603 E-11
D604 E-10
D605 E-10
D606 F-9
D700 A-1
D701 A-1
D702 A-1
D703 G-4
D720 E-7
D721 E-7
IC700 B-2
Q500 C-11
Q501 C-11
Q502 C-10
Q503 D-11
Q504 D-10
Q505 D-10
Q506 E-11
Q507 E-10
Q508 D-9
Q509 D-8
Q510 D-8
Q511 C-5
Q512 C-8
Q513 D-6
Q514 D-5
Q600 G-11
Q601 G-11
Q602 G-10
Q603 F-11
Q604 F-10
Q605 F-10
Q606 E-11
Q607 E-10
Q608 F-9
Q609 F-8
Q610 F-10
Q611 G-8
Q612 G-5
Q613 F-6
Q614 F-4
Q700 B-3
Q701 B-1
Q702 G-4
(Page
22)
(Page
10)
(Page 22)
(Page
18)
(Page
18)
(Page
17)
